DB982H33-M datasheet, PDF - EEWORLD Datasheet

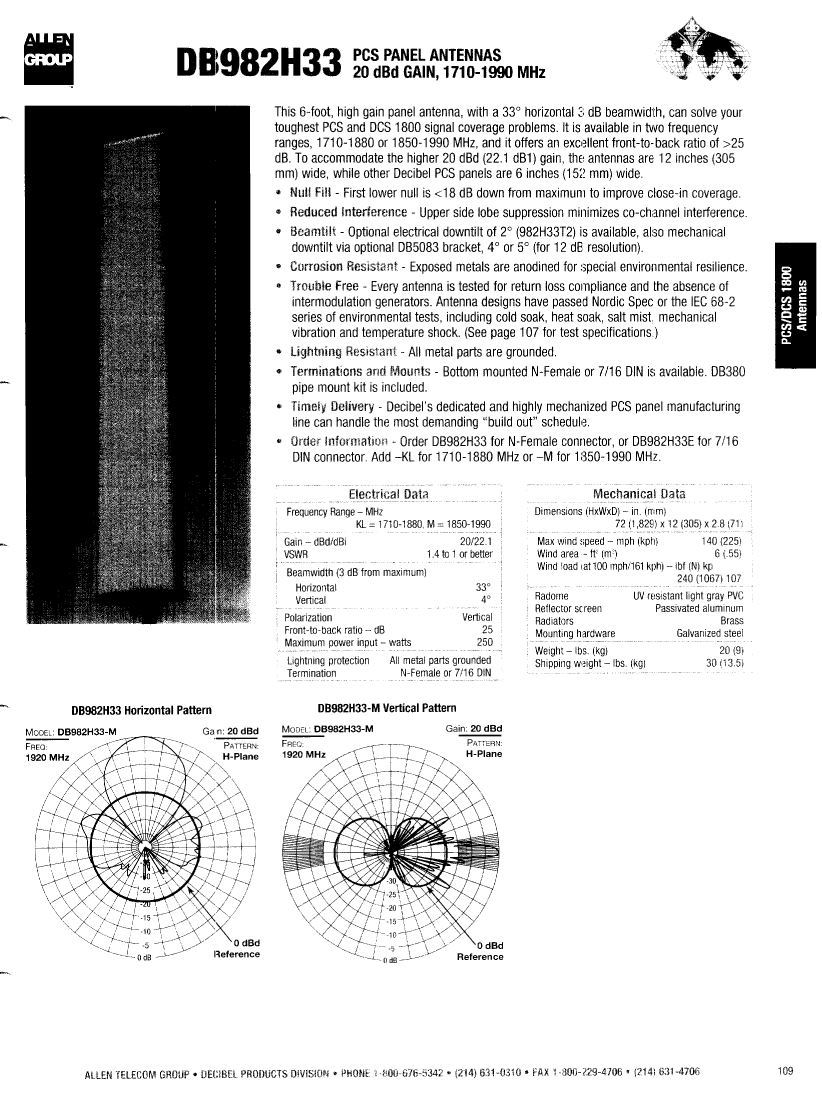

DB982H33-M: DescriptionBase Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size167KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB982H33-M Overview

Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
application	PCS
Beam Width-E	4 deg
Beamwidth-H	33 deg
front to back ratio	25 dB
Gain	22.1 dB
Omnidirectional	YES
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W
Maximum voltage standing wave ratio	1.4
Commentary	140 mph
Base Number Matches	1

	DB982H33-M	DB982H33-KL	DB982H33E-KL	DB982H33E-M
Description	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1710MHz Min, 1880MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 1850MHz Min, 1990MHz Max, 22.1dB Gain, 33deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
application	PCS	PCS	PCS	PCS
Beam Width-E	4 deg	4 deg	4 deg	4 deg
Beamwidth-H	33 deg	33 deg	33 deg	33 deg
front to back ratio	25 dB	25 dB	25 dB	25 dB
Gain	22.1 dB	22.1 dB	22.1 dB	22.1 dB
Omnidirectional	YES	YES	YES	YES
Maximum operating frequency	1990 MHz	1880 MHz	1880 MHz	1990 MHz
Minimum operating frequency	1850 MHz	1710 MHz	1710 MHz	1850 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	250 W	250 W	250 W	250 W
Maximum voltage standing wave ratio	1.4	1.4	1.4	1.4
Commentary	140 mph	140 mph	140 mph	140 mph
