930105201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 930105201

930105201: Description512K X 8 STANDARD SRAM, 17 ns, DFP36; Categorystorage storage; File Size335KB，13 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

930105201 Overview

512K X 8 STANDARD SRAM, 17 ns, DFP36

930105201 Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	DFP
package instruction	DFP,
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	17 ns
JESD-30 code	R-XDFP-F36
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	36
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512KX8
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	12.195 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Features

•

Operating Voltage: 3.3V, 5V tolerant

•

Access Time:

•

– 17 ns

– 15 ns

Very Low Power Consumption

– Active: 610 mW (Max) @ 17 ns

(1)

, 540 mW (Max) @ 25 ns

– Standby: 3.3 mW (Typ)

Wide Temperature Range: -55 to +125°C

TTL-Compatible Inputs and Outputs

Asynchronous

Designed on 0.25 µm Radiation Hardened Process

No Single Event Latch Up below LET Threshold of 80 MeV/mg/cm

Tested up to a Total Dose of 300 krads (Si) according to MIL-STD-883 Method 1019

500 Mils Wide FP36 Package

ESD Better than 2000V

Quality Grades: ESCC with 9301/052, QML-Q or V with smd 5962-05208

1. 650 mW (Max) @ 15 ns

Note:

Description

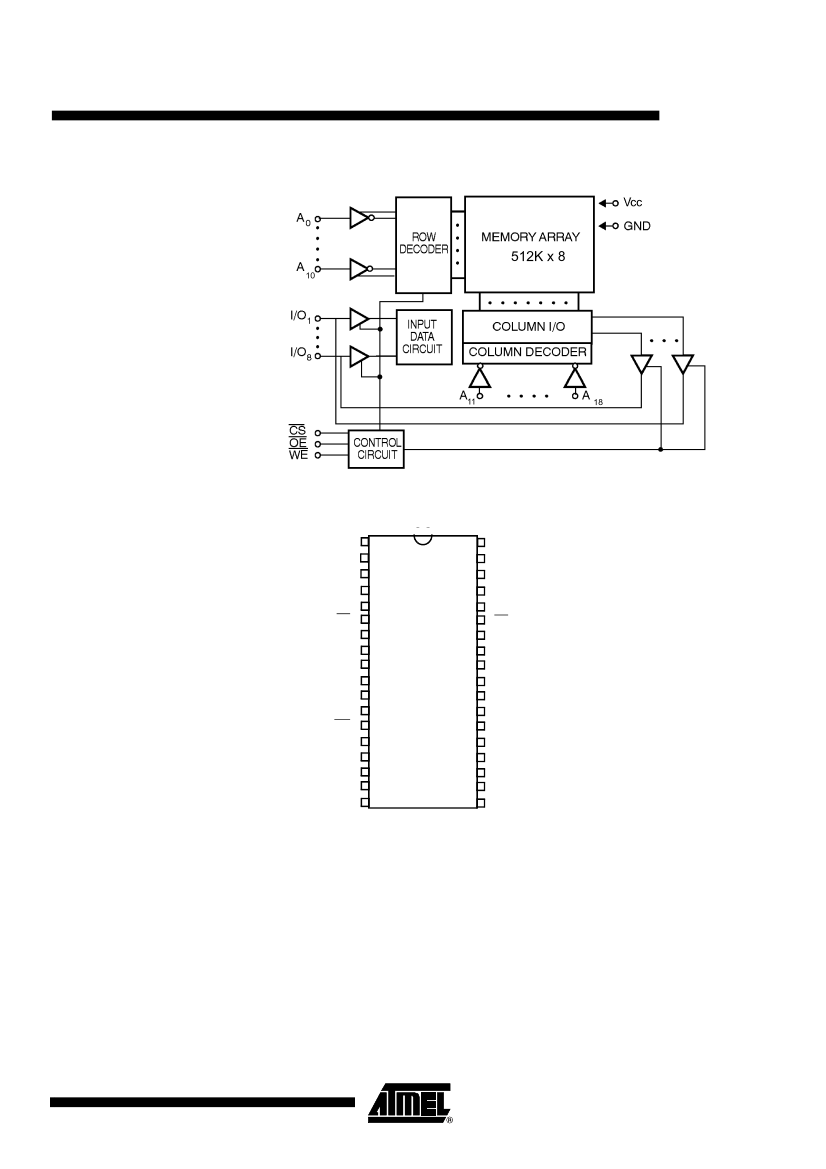

The AT60142FT is a very low power CMOS static RAM organized as 512K x 8 bits.

Atmel brings the solution to applications where fast computing is as mandatory as low

consumption, such as aerospace electronics, portable instruments, or embarked

systems.

Utilizing an array of six transistors (6T) memory cells, the AT60142FT combines an

extremely low standby supply current (Typical value = 1 mA) with a fast access time at

15 ns over the full military temperature range. The high stability of the 6T cell provides

excellent protection against soft errors due to noise.

The AT60142FT is processed according to the methods of the latest revision of the

MIL PRF 38535 or ESCC 9000.

It is produced on a radiation hardened 0.25 µm CMOS process.

Rad Hard

512K x 8

5V Tolerant

Very Low Power

CMOS SRAM

AT60142FT

Rev. 7726B–AERO–04/09

930105201 Related Products

	930105201	5962-0520801QYC	5962-0520801VYC	5962-0520801VXC	5962-0520801QXC	5962R0520801VXC	5962R0520801VYC
Description	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36	512K X 8 STANDARD SRAM, 17 ns, DFP36
Parts packaging code	DFP	DFP	DFP	DFP	DFP	DFP	DFP
package instruction	DFP,	DFP, FL36,.5	DFP, FL36,.5	DFP, FL36,.5	DFP, FL36,.5	DFP, FL36,.5	DFP, FL36,.5
Contacts	36	36	36	36	36	36	36
Reach Compliance Code	unknown	compliant	compliant	compli	compli	compliant	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	17 ns	17 ns	17 ns	17 ns	17 ns	17 ns	17 ns
JESD-30 code	R-XDFP-F36	R-XDFP-F36	R-XDFP-F36	R-XDFP-F36	R-XDFP-F36	R-XDFP-F36	R-XDFP-F36
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bi	4194304 bi	4194304 bit	4194304 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	36	36	36	36	36	36	36
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DFP	DFP	DFP	DFP	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Qualified	Qualified	Qualified	Qualified	Qualified	Qualified
Maximum seat height	3.05 mm	3.05 mm	3.05 mm	3.05 mm	3.05 mm	3.05 mm	3.05 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	12.195 mm	12.195 mm	12.195 mm	12.195 mm	12.195 mm	12.195 mm	12.195 mm
Base Number Matches	1	1	1	1	1	1	1
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)
I/O type	-	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-609 code	-	e4	e4	e4	e4	e4	e4
Output characteristics	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Encapsulate equivalent code	-	FL36,.5	FL36,.5	FL36,.5	FL36,.5	FL36,.5	FL36,.5
power supply	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Filter level	-	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum standby current	-	0.0015 A	0.0015 A	0.0015 A	0.0015 A	0.0015 A	0.0015 A
Minimum standby current	-	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	-	0.18 mA	0.18 mA	0.18 mA	0.18 mA	0.18 mA	0.18 mA
Terminal surface	-	GOLD	GOLD	Gold (Au)	Gold (Au)	Gold (Au)	GOLD
