BUZ24: DescriptionPower Field-Effect Transistor, 32A I(D), 100V, 0.06ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AE, TO-204AE, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size263KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

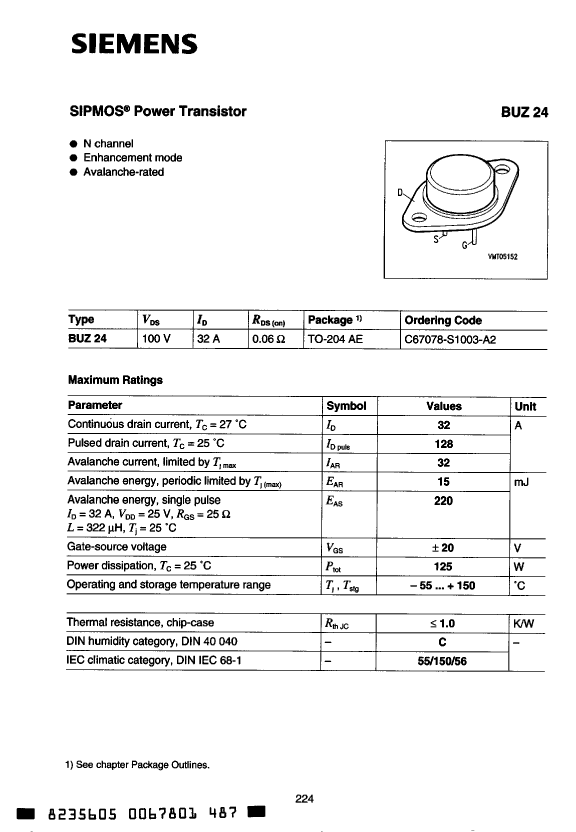

BUZ24 Overview

Power Field-Effect Transistor, 32A I(D), 100V, 0.06ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AE, TO-204AE, 2 PIN

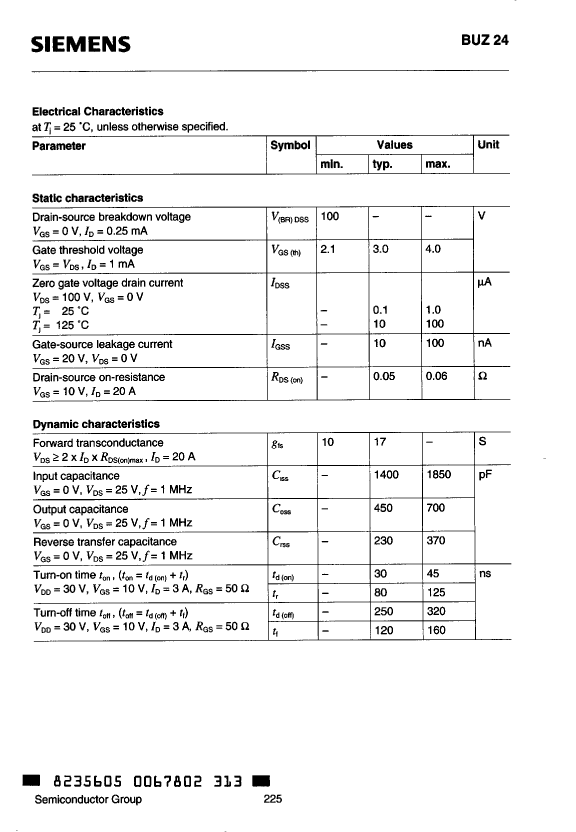

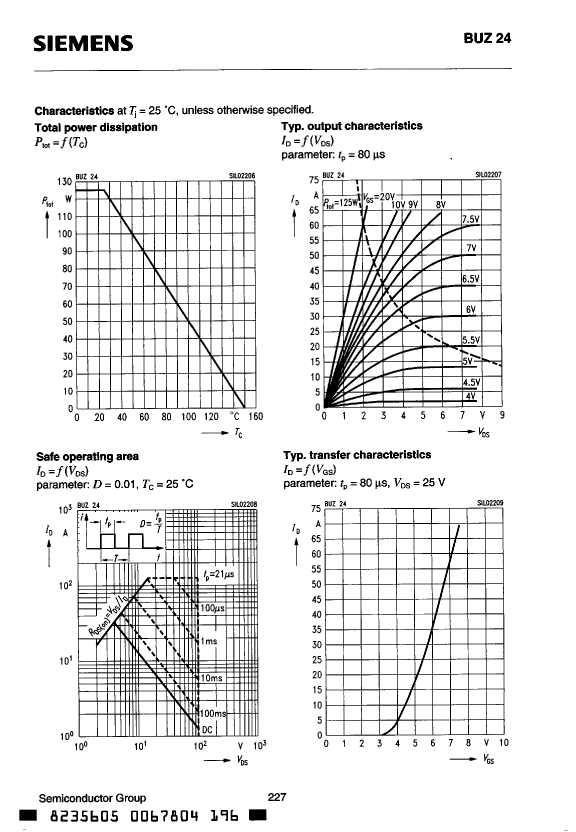

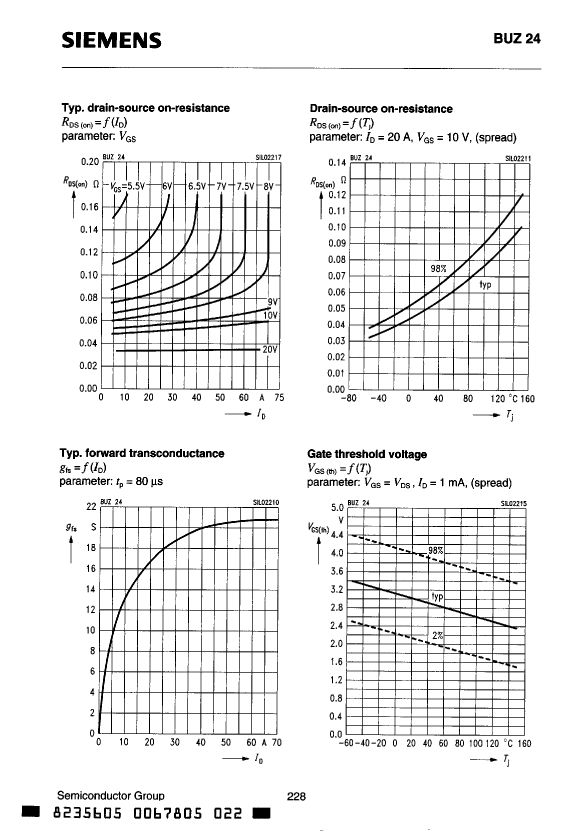

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	220 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	32 A
Maximum drain current (ID)	32 A
Maximum drain-source on-resistance	0.06 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-204AE
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	125 W
Maximum pulsed drain current (IDM)	128 A
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1
