LSEM-130-03.0-F-DV-A-N-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> LSEM-130-03.0-F-DV-A-N-K

LSEM-130-03.0-F-DV-A-N-K: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Hermaphroditic, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size475KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

LSEM-130-03.0-F-DV-A-N-K Overview

Board Connector, 60 Contact(s), 2 Row(s), Hermaphroditic, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT

LSEM-130-03.0-F-DV-A-N-K Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RAZOR BEAM SYSTEM
Board mount options	PEG
body width	0.196 inch
body length	1.118 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	HERMAPHRODITIC
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LSEM
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.8 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Base Number Matches	1

Preview

Download Datasheet

View All

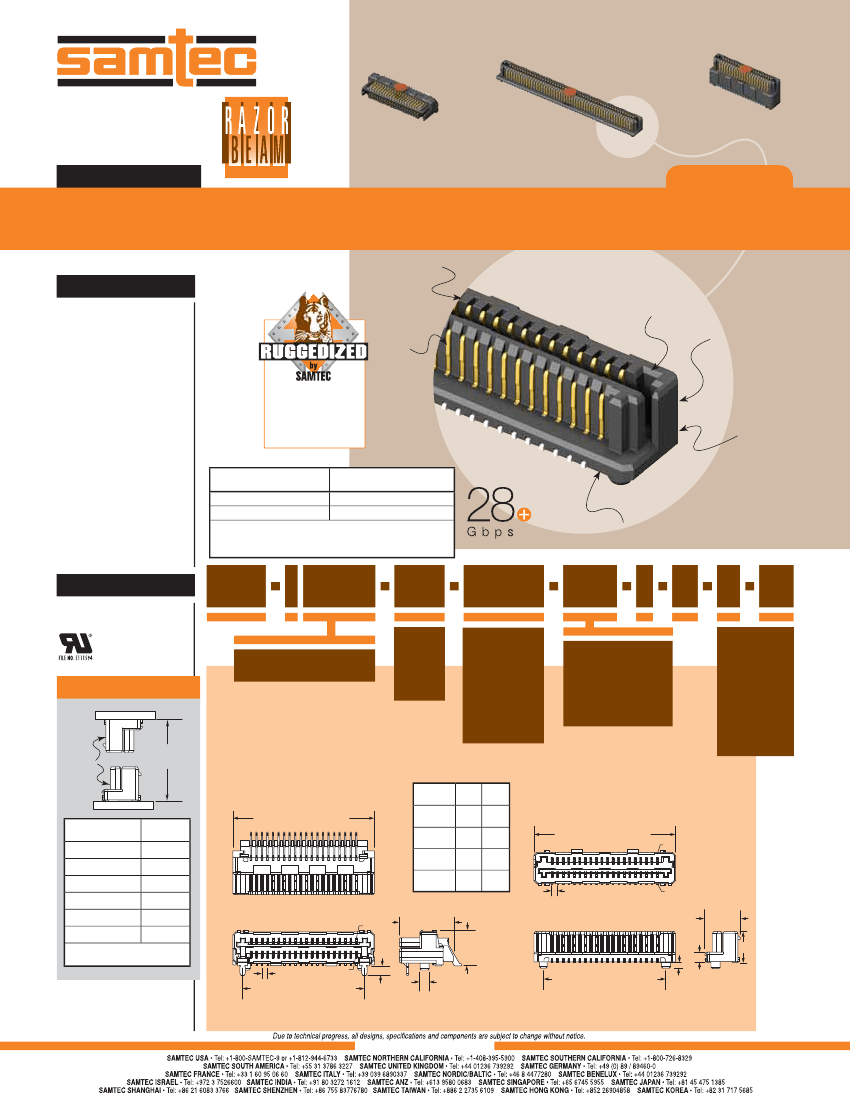

F-214

LSEM–150–04.0–F–DV–A–N–K–TR

LSEM–120–06.0–F–DV–A–N–K–TR

LSEM–120–01–L–DH–A–N–K–TR

(0,80 mm) .0315"

SYSTEM

LSEM SERIES

HIGH SPEED HERMAPHRODITIC STRIP

High Speed/High Density

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?LSEM

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1.8 A per pin

(2 adjacent pins powered)

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

Mates with:

LSEM

Low cost

Blade &

Beam

contact

• High retention

contacts

• Audible click

when mated

• Shrouded

Audible click when

properly mated

Self-mating

system can

reduce

inventory costs

Mated height

variety/ﬂexibility

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max

Board Stacking:

For applications requiring more

than two connectors per board,

contact ipg@samtec.com

LSEM/LSEM

Rated @ 3dB Insertion Loss*

12 mm Stack Height

Single-Ended Signaling

16.5 GHz / 33 Gbps

Differential Pair Signaling

20.0 GHz / 40 Gbps

*Test board losses de-embedded from performance data.

Complete test data available at www.samtec.com?LSEM

or contact sig@samtec.com

Slim

Row-to-Row

design

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

LSEM

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

TAIL

OPTION

–K

–F

= Gold ﬂash

on contact,

Matte Tin on tail

20, 30, 40, 50

APPLICATION

–DV

= Vertical

–L

=10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–DH

= Right Angle

(Lead style –01 only)

= (5,50 mm)

.217" DIA

Polyimide

ﬁlm Pick &

Place Pad

–TR

= Tape &

Reel

LSEM

MATED

HEIGHT

LEAD

STYLE

LEAD STYLE

MATED

HEIGHT*

(6,00) .236

(7,00) .276

(8,00) .315

(9,00) .354

(10,00) .394

(4,45)

.175

(5,45)

.215

(7,45)

.293

(1,50)

.059

(2,50)

.098

(4,50)

.177

No. of positions x

(0,80) .0315 + (4,40) .173

(-DH only)

–01

–03.0

–04.0

–06.0

No. of positions x

(0,80) .0315 + (4,40) .173

–03.0 & –03.0

–03.0 & –04.0

–04.0 & –04.0

–03.0 & –06.0

–04.0 & –06.0

–06.0 & –06.0

(0,80) .0315

(7,80) .307

(5,13)

.202

(4,98)

.196

No. of positions x

(0,80) .0315 + (1,70) .067

(0,85)

.033

(12,00) .472

*Processing conditions will

affect mated height.

(0,80) .0315

No. of positions x

(0,80) .0315 + (1,70) .067

(1,40)

.055

(1,32)

.052

DIA

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–DH

–DV

WWW.SAMTEC.COM
