N3431-1402 datasheet, PDF - EEWORLD Datasheet

N3431-1402: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,EJECT LEVER,BEIGE; CategoryThe connector The connector; File Size307KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

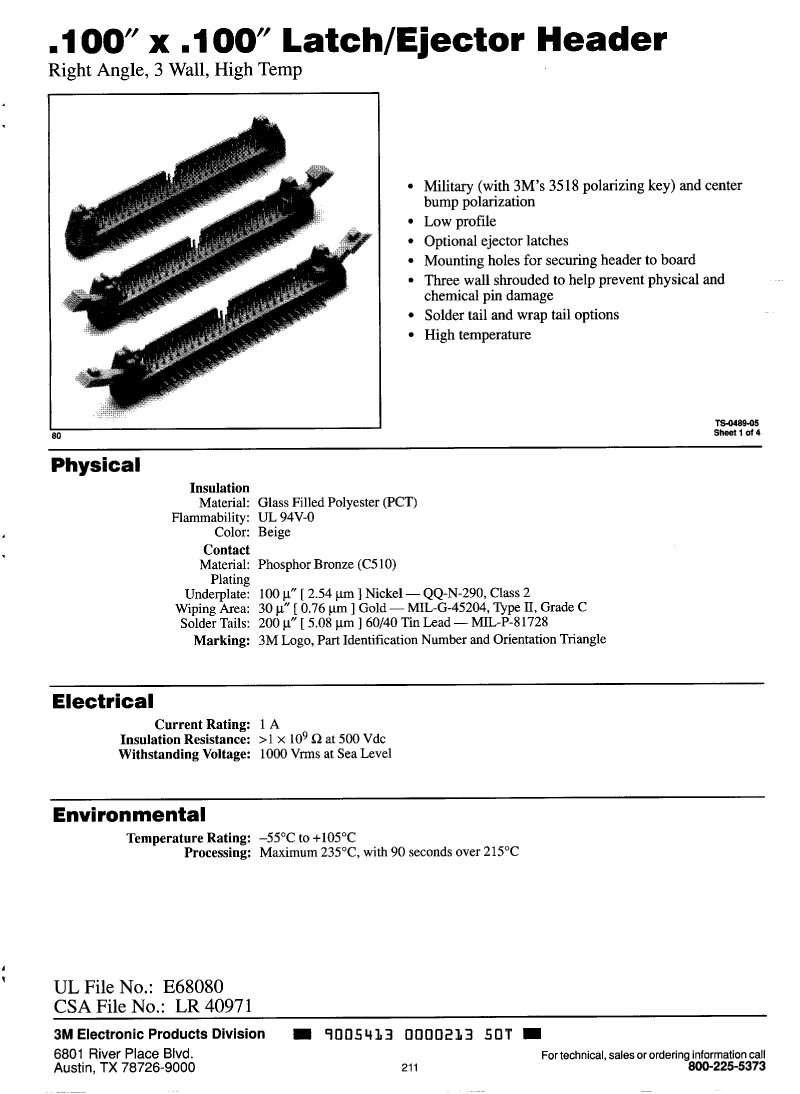

N3431-1402 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,EJECT LEVER,BEIGE

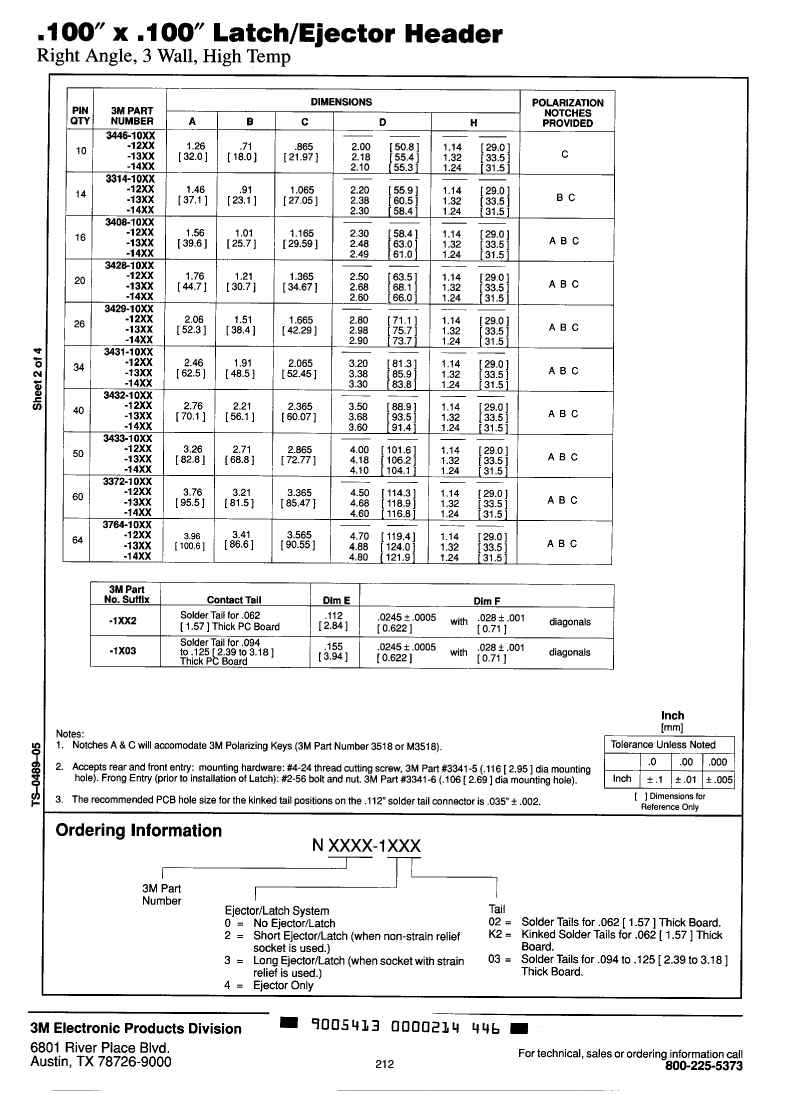

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	3M
Reach Compliance Code	unknown
Other features	EJECTOR MECHANISM,HI-TEMP INSL

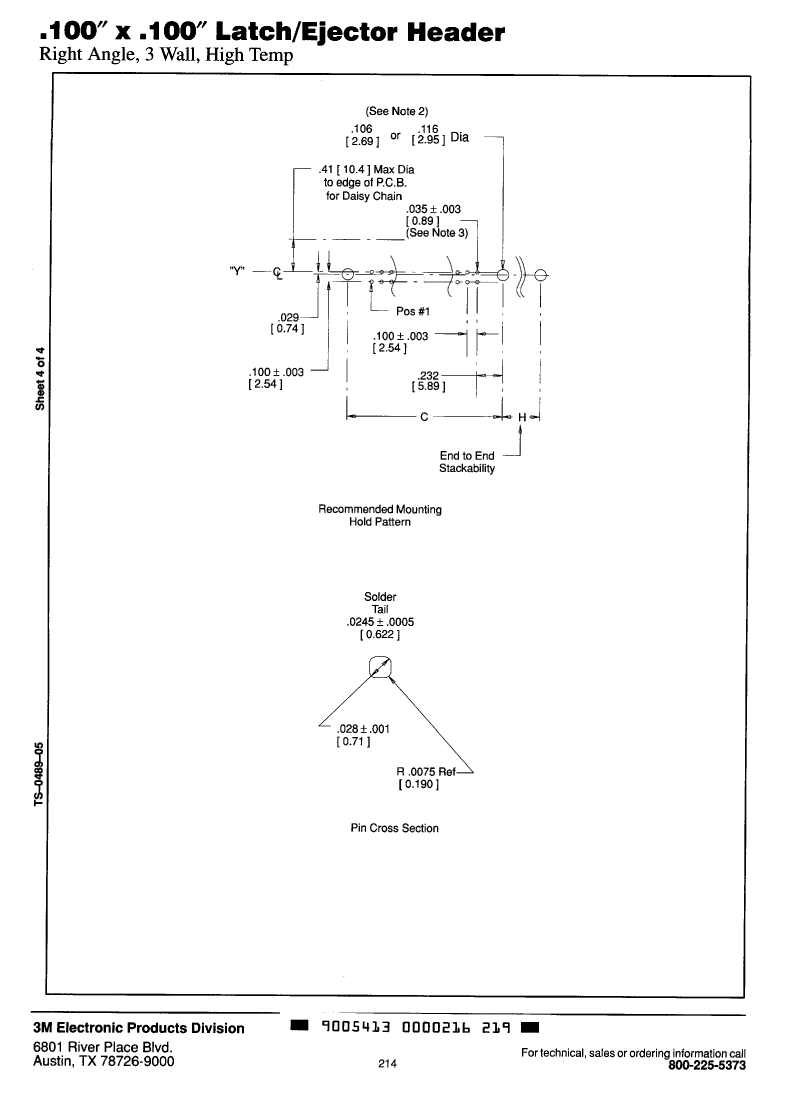

Board mount options	HOLE .099-.111

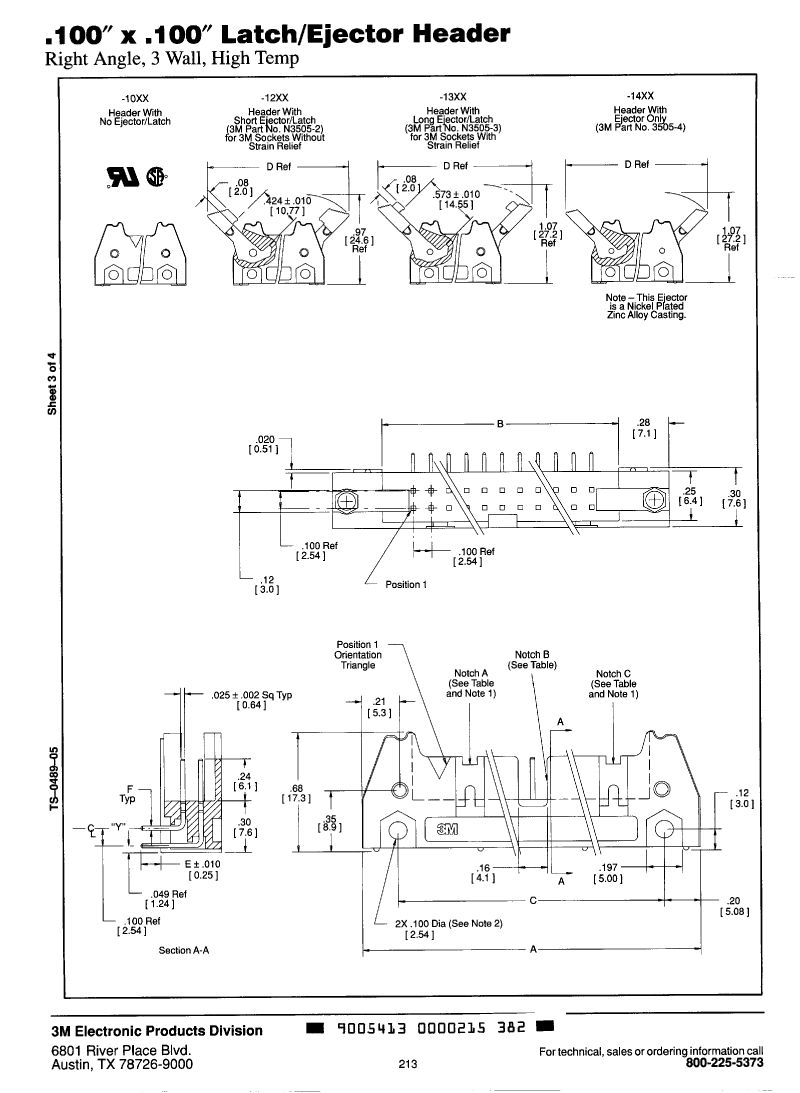

body width	0.299 inch
subject depth	0.681 inch
body length	2.461 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3431
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	EJECT LEVER
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
Base Number Matches	1
