FB96FRH-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FB96FRH-A

FB96FRH-A: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size2MB，16 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com

Download Datasheet Parametric Compare View All

FB96FRH-A Overview

Board Connector, 96 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug

FB96FRH-A Parametric

Parameter Name	Attribute value
Maker	World Produts Inc.
Reach Compliance Code	unknown
Other features	NONE
Board mount options	LOCATING POSTS
body length	1.886 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	100 Cycles
maximum insertion force	.6116 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	FB
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	96
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

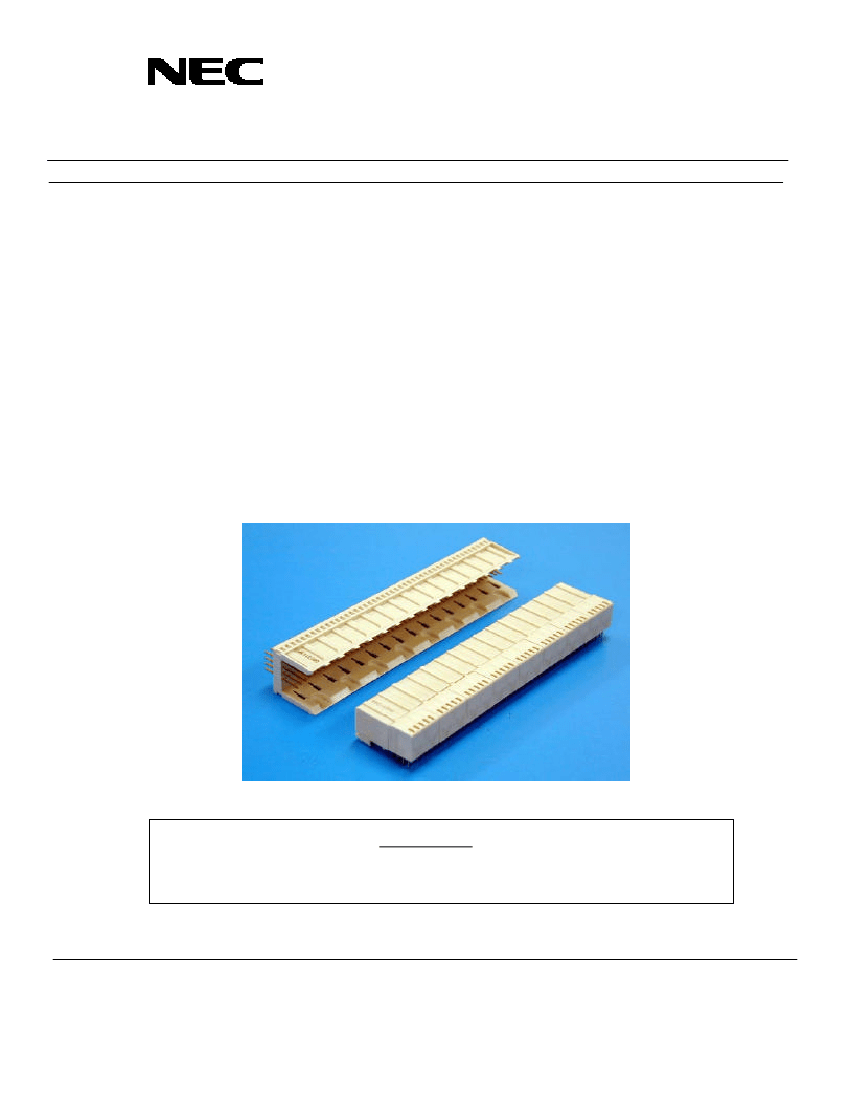

DATA SHEET

CONNECTOR

FB(4-Row) SERIES

2.0 mm PITCH METRIC CONNECTOR(4-Row)

The best selection connector regarding PC-Board to PC-Board connection for

telecommunication and control equipment those are required high performance and high

density mounting.

Features

Meets IEC61076-4-104 standard

High density mounting with 2 mm pitch pin arrangement

Number of pins : 24, 48, 96 and 192

Available for multi-connection construction considering circuit protection function

Application

Interface between PC-Boards for Telephone exchanger, transmission and measuring

equipment

For correct use

Please avoid to use under temperature, voltage and current over specification.

If it is used by incorrect method, there is possibility of abnormal heat generating or fire.

Note : The specification may be changed later.

Document number EMSD-094-1V1

Issue February 2001

NEC Corporation 2001
