MUR860CO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MUR860CO

MUR860CO: DescriptionRECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size411KB，3 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

MUR860CO Overview

RECTIFIER DIODE

MUR860CO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	R-PSFM-T2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	PURE TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

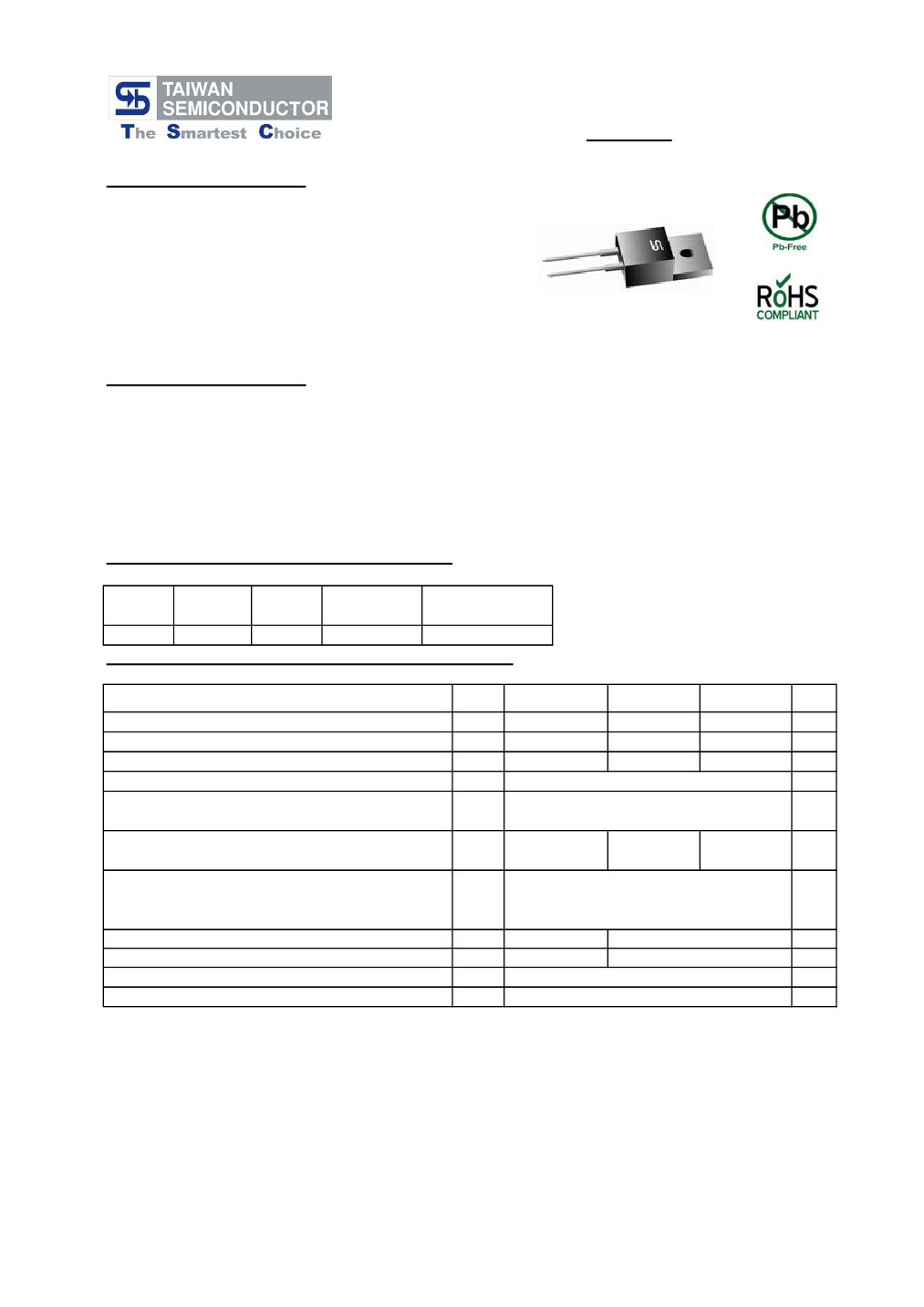

MUR820 - MUR860

8.0AMP. Glass Passivated Super Fast Rectifiers

TO-220AC

Features

High efficiency, Low VF

High current capability

High reliability

High surge current capability

For use in low volyage, high frequency inverter,

free wheeling, and polarity protection

application.

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

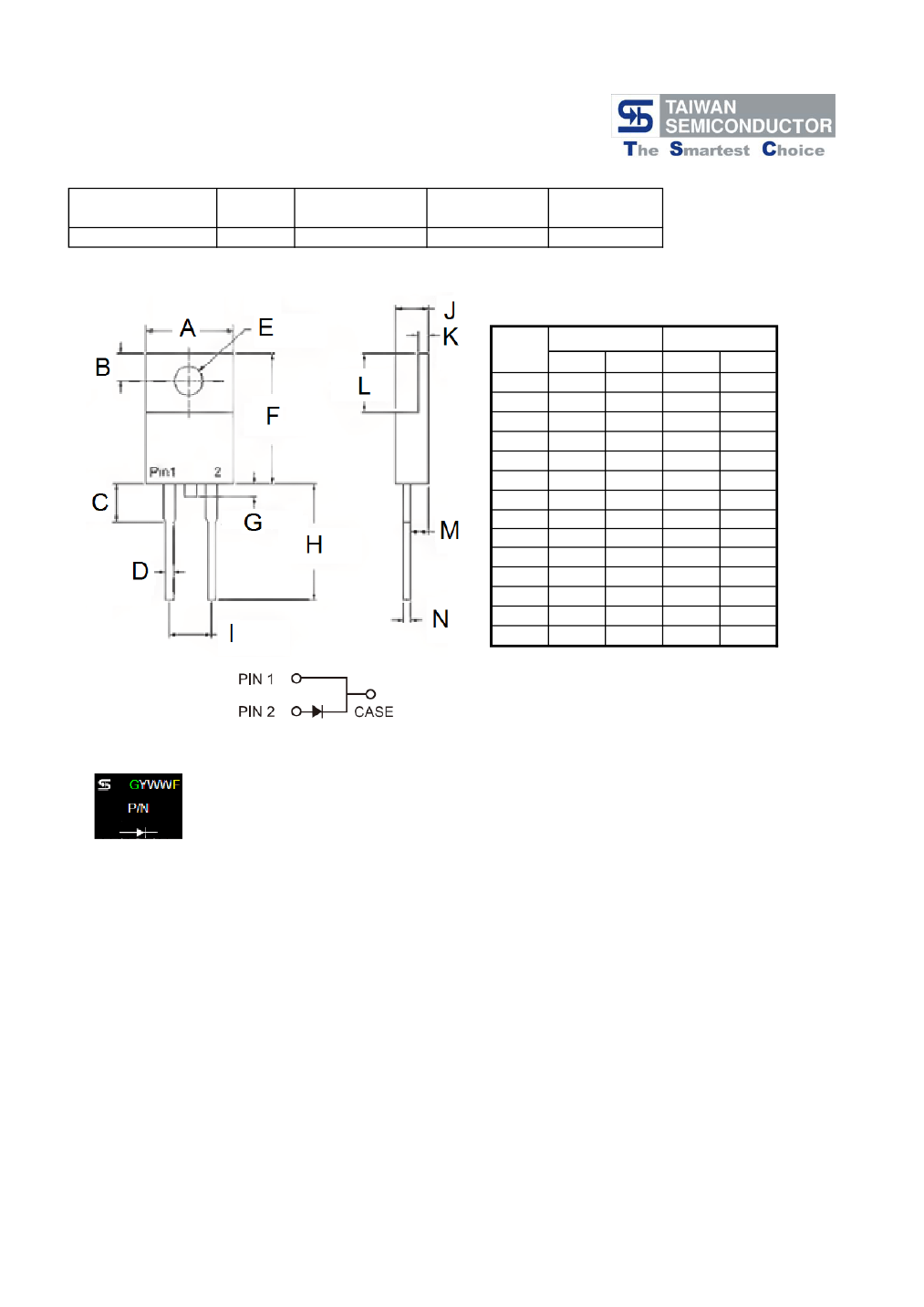

Case: TO-220AC molded plastic

Epoxy: UL 94V-0 rate flame retardant

Terminals: Pure tin plated leads, lead free, solderable

per MIL-STD-202, Method 208 guaranteed

Polarity: As marked

High temperature soldering guaranteed:

260℃/10s/.25", (6.35mm) from case.

Weight:1.9 grams

Ordering Information(example)

Part No.

MUR820

Package

TO-220AC

Packing

50 / TUBE

Packing code

(Green)

C0G

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Maximum Repetitive Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms Single Half Sine-wave

Superimposed on Rated Load (JEDEC method )

Maximum Instantaneous Forward Voltage (Note 1)

@8A

Maximum Reverse Current

@ T

=25

℃

@ T

=100

℃

Maximum Reverse Recovery Time (Note 2)

Typical Thermal Resistance

Operating Temperature Range

Storage Temperature Range

Note 1: Pulse lest: tp = 300uS, Duty Cycle<1%

Symbol

RRM

RMS

F(AV)

FSM

MUR820

200

140

200

MUR840

400

280

400

100

MUR860

600

420

600

Units

0.975

1.30

1.70

θJC

STG

250

-55 to + 175

C/W

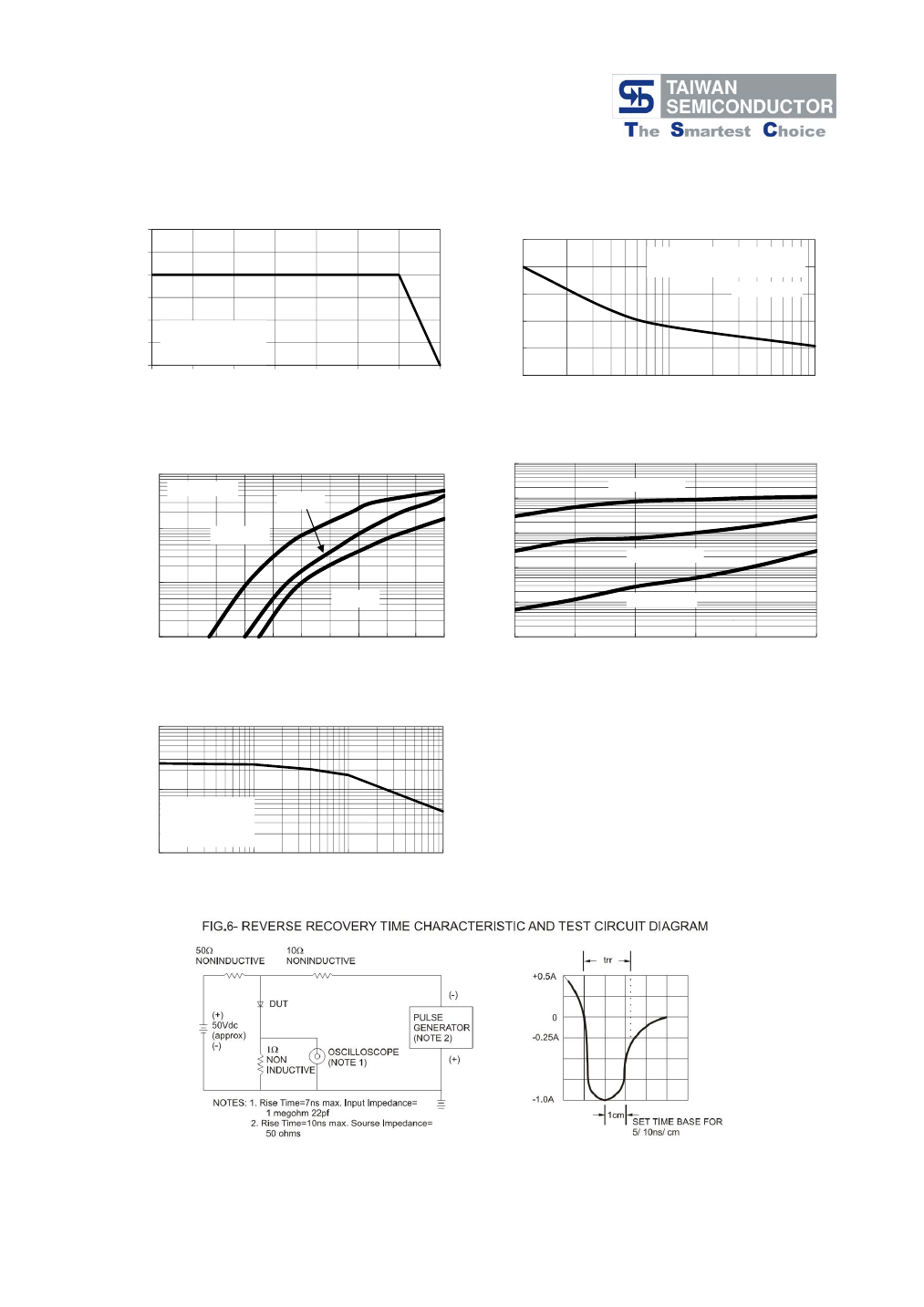

Note 2: Reverse Recovery Test Condition:IF=0.5A, IR=1.0A, IRR=0.25A

Version:I13
