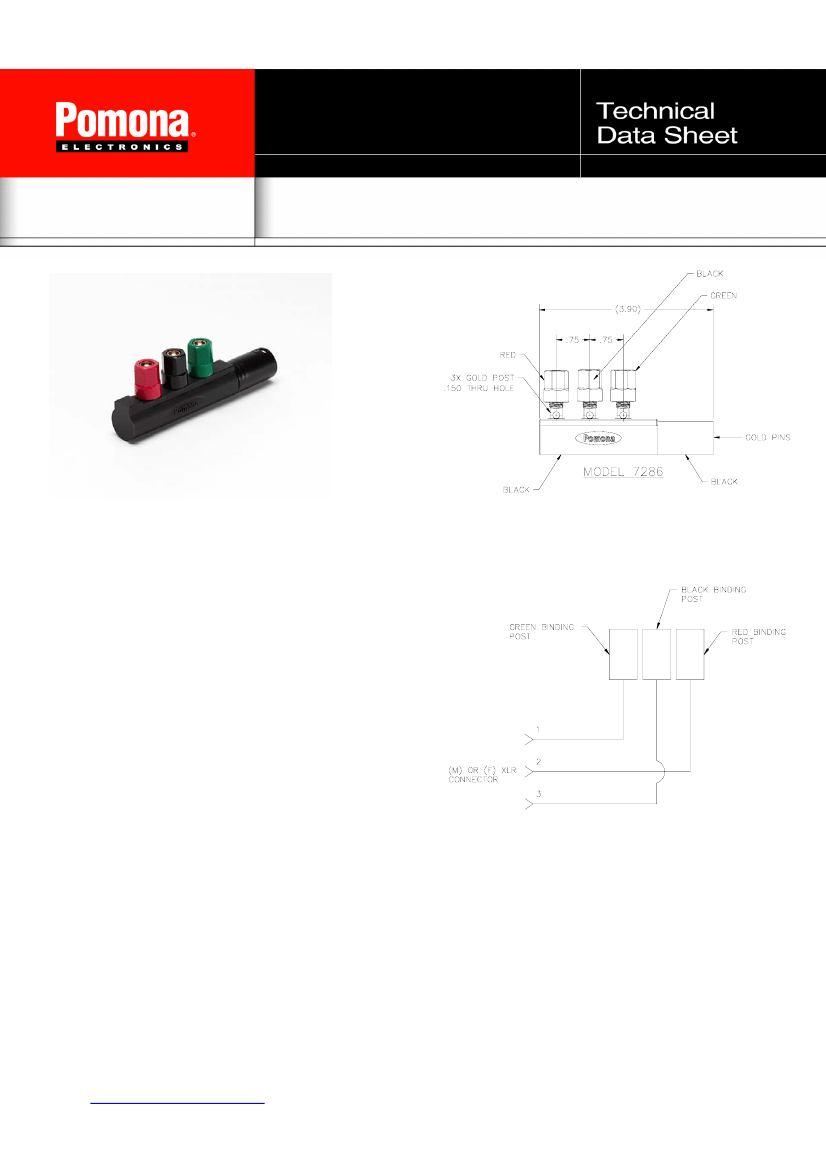

Model 7286
XLR (M) / Triple Binding Post
Model 7286 XLR (M) / Triple Binding Post
Features
•
5-way binding posts accept banana plugs
vertically or horizontally, dual or triple banana
plugs vertically or horizontally, bare wire via
through-holes, alligator clips or spade lugs.
XLR plug enables connection to audio cable links
or broadcast system panels.
Gold plated pins and binding posts for excellent
conductivity.
¾” Spacing between banana jacks allows dual or
triple banana plug connections.
Cross holes have large 3.8mm (0.150”) diameter
for easy wire access.
Rugged body exterior.
Connection Schematic
•
•
•
•
•
Materials
•
•
•
•
Adapter body is made of rugged ABS.
Binding posts: gold plated brass. Nylon 6 hex
nuts.
XLR Body: Die cast zinc.
XLR male center pin contacts: gold plated brass.
Specifications
•
Voltage: 33 Vrms / 70 Vdc
Ordering Information
Model: 7286, XLR (M) / Triple Binding Post
USA:
Sales: 800-490-2361
Technical Support:
800-241-2060
Europe:
31-(0) 40 2675 150
Fax:
888-403-3360
International:
425-446-5500
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2005 5/2004 2447840 D-ENG-N Rev A
of 1
Page 1 of 1 Page 1
