72971 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 72971

72971: DescriptionBOARD TERMINATED, FEMALE, SMA CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size235KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

72971 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	72971	-	-	View	Buy Now

72971 Overview

BOARD TERMINATED, FEMALE, SMA CONNECTOR, SOLDER, RECEPTACLE

72971 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARDS: MIL-C-39012; IEC 169-15
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

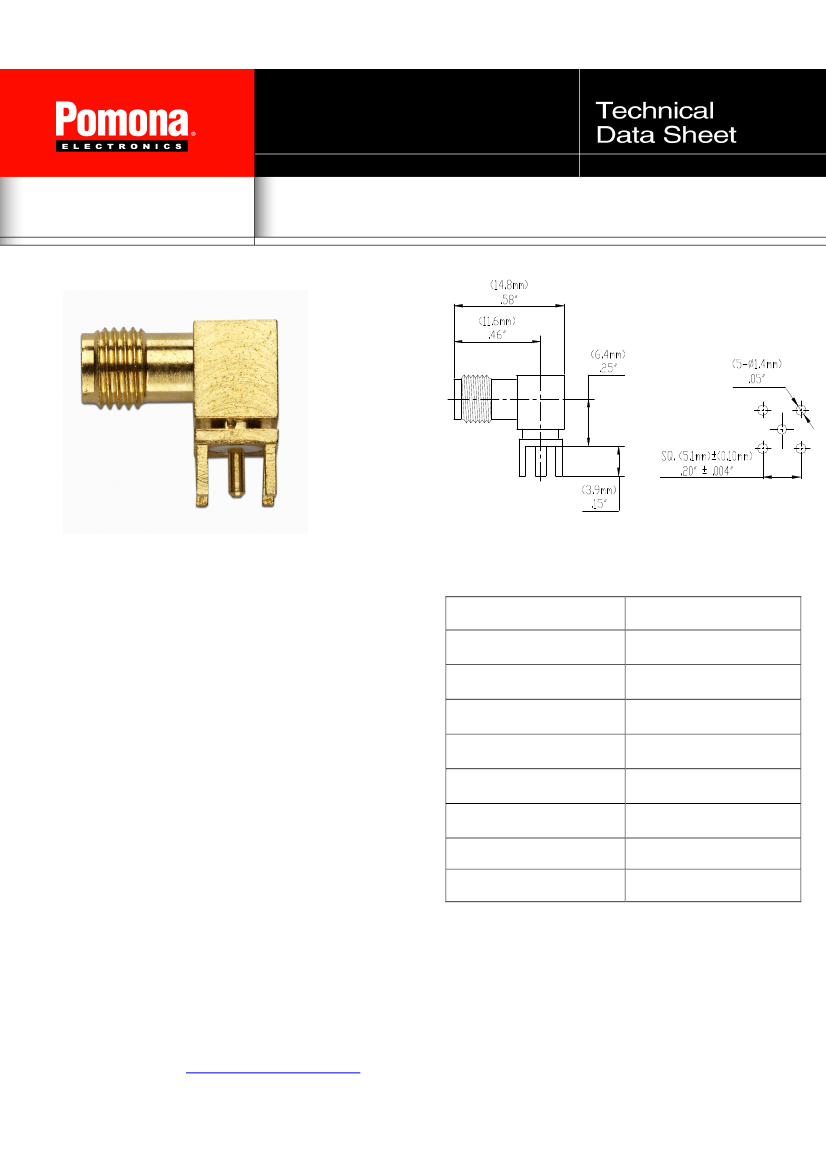

Model 72971 SMA JACK R/A PCB RECEPTACLE

High bandwidth, small size, and

durability for confident

connections.

Features

•

DC - 18 GHz

Meets MIL-C-39012, IEC 169-15, CECC 22110.

Small size and durability for mobile

communications.

Precision machined and gold-plated for low loss.

Specifications

Impedance

Frequency Range

Working Voltage

Dielectric Withstanding

Voltage

VSWR

Center/Outer Contact

Resistance

Insulation resistance

Number of Insertions

Temperature Range

DC - 18 GHz

< 500 Vpeak

1,000 Vrms

1.25 max.

0.003/0.002

> 5000 M

500 cycles minimum

-65˚ C to 165˚ C, -85˚ F to

329˚ F

max

Materials

•

Body is machined brass with gold plating.

Center Contacts - Plug is gold plated brass and

Jack is gold plated Beryllium copper.

Insulators are high quality PTFE.

Crimp Ferrules are copper with gold or nickel

plating.

Gaskets are silicone rubber.

Ordering Information

Model: 72971

Description: SMA JACK R/A PCB RECEPTACLE

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),

.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks

are the property of their respective companies.

D2003411 REV 001

Page 1 of 1
