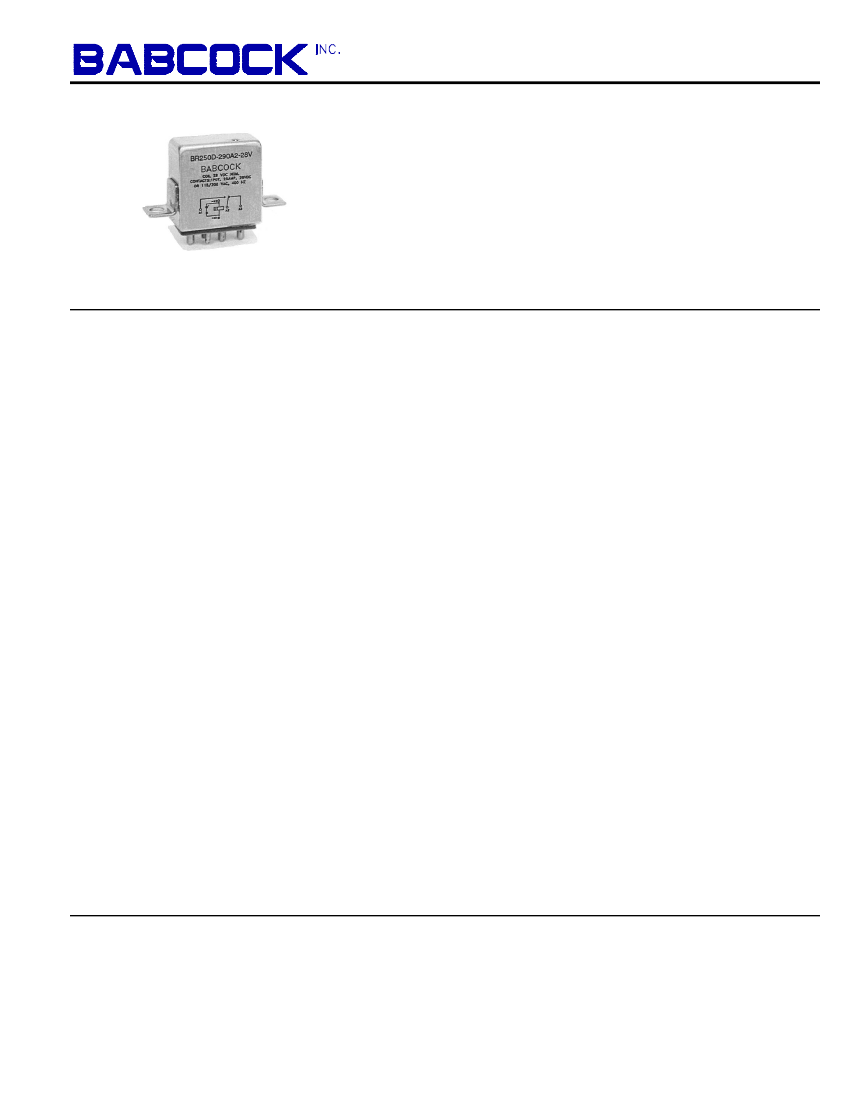

BR250D
Miniature
25 Amps • 1PDT
To MIL-PRF-6106
DC Suppressed Coils
SPECIFICATIONS
GENERAL
Contact Arrangement
.......................... 1PDT (1 Form C)
Weight..........................................................1.6
oz approx.
Designed to meet the requirements of MIL-PRF-6106
PERFORMANCE
Contact Rating
(Note 1):
Resistive ................................... 25 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Inductive ........................15 Amps @ 115/208V 400 Hz
(Case Grounded)
10 Amps @ 28 VDC
(Case Grounded)
Motor......................................... 10 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Lamp .......................................... 5 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Operate/Release Time:
DC Coil
15 ms max
Excluding bounce time at nominal coil voltage
Contact Bounce Time.......................................
1 ms max
@ rated contact load, 28 VDC
Contact Voltage Drop:
Before Life............................. 150 mv max @ 25 Amps
and 6 VDC
After Life ................................ 175 mv max @ 25 Amps
and 6 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -70 C to +125 C
Vibration
(Note 2).............................. 0.12" DA 10 - 70 Hz
30 G's 70 - 3,000 Hz
Shock (Operating)(Note
2) ......................... 200 G's 6 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance...............................
100 megohms
o
@ 500V 25 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,250 VRMS
Contact to Coil ..................................... 1,250 VRMS
Coil to Case ......................................... 1,000 VRMS
Across Open Contacts ........................ 1,250 VRMS
80,000 Feet:
All Points ................................................. 350 VRMS
Life
.......................50,000 operations minimum @ rated
o
resistive load, 125 C
Pull In Power
............................................500 mw approx.
MIL-PRF-6106/19 QUALIFIED
Notes:
1.
For other ratings consult the factory.
2.
For applications requiring higher shock and vibration,
consult the factory.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W:2000, Rev. 4
BR250D
COIL DATA:
MODEL BR250D PART NUMBER
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
DROP OUT VOLTAGE (MAX)
MAXIMUM BACK EMF
COIL RESISTANCE ± 10% @ 25 C
o
o
BR250D-20()()-6V
6 VDC
8 VDC
4.5 VDC
1.8 VDC
9 VDC
20 OHMS
BR250D-80()()-12V
12 VDC
15 VDC
9 VDC
3.5 VDC
18 VDC
80 OHMS
BR250D-320()()-28V
28 VDC
29 VDC
18 VDC
5.1 VDC
42 VDC
320 OHMS
BR250D-1000()()-48V
48 VDC
59 VDC
36 VDC
11 VDC
72 VDC
1000 OHMS
-------------------------------------------------------------------- Relay Type
-------------------------------------------------- Nominal coil resistance
-------------------------------------- Terminal style
-------------------------------- Mounting Type
--------------------- Nominal coil voltage
BR250D -
320
C
2 - 28V

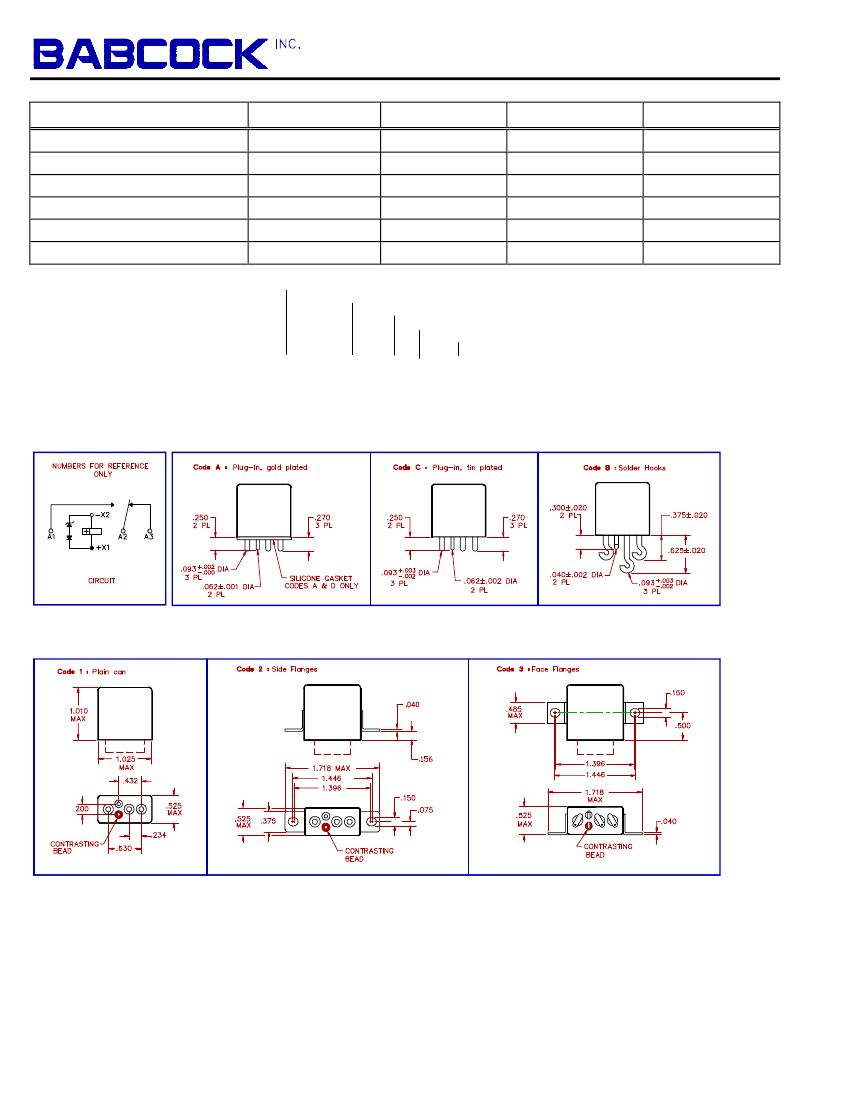

SCHEMATIC
TERMINAL VIEW
TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal coil
o
voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
W:2000, Rev. 4
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
