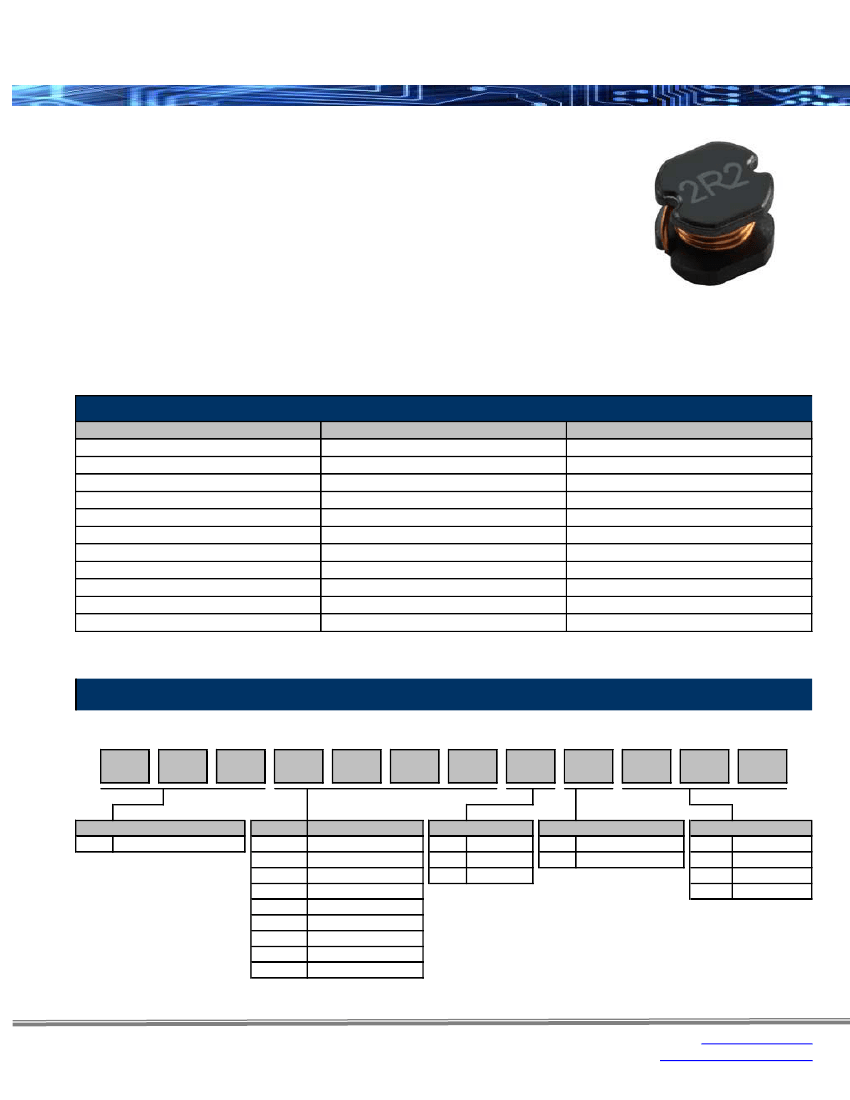

PCD Series
SMD Unshielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
Provides high power and high saturation
Silver plated for low cost design
Available on tape and reel for auto surface mounting
Contact factory for inductance values outside those listed in
the datasheet
Find Environmental Information and Packaging Specifications
in related supplemental documents
Power supply for VTRs
Personal computers
DC/DC converters
LCD televisions
Handheld communication
Applications:
•
•
•
•
•
Inductance and Current Ranges
Type
PCD0301
PCD0302
PCD0403
PCD0502
PCD0503
PCD0504
PCD0703
PCD0705
PCD1004
PCD1005
PCD1006
Electrical specifications at 25ºC
Inductance (μH)
1 ~ 390
1 - 330
1 ~ 680
1 ~ 470
1 ~ 1000
1 ~ 680
1 ~ 1000
1 ~ 1000
1 ~ 560
1.2 ~ 1000
1 ~ 1000
Current Ranges (A)
1.40 ~ 0.10
2.20 ~ 0.09
2.70 ~ 0.128
4.00 ~ 0.15
4.50 ~ 0.13
5.00 ~ 0.28
1.64 ~ 0.20
3.40 ~ 0.30
8.70 ~ 0.32
8.63 ~ 0.20
9.50 ~ 0.46
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
P
C
D
1
0
0
4
M
T
1
0
1
Product Series
PCD SMD Power Inductor
Code
0302
0403
0502
0503
0504
0703
0705
1004
1005
EIA
3.5x3.0x2.0
4.5x4.0x3.2
5.8x5.2x2.5
5.8x5.2x3.0
5.8x5.2x4.5
7.8x7.0x3.5
7.8x7.0x5.0
10x9.0x4.0
10x9.0x5.4
Tolerance
Tol
Code
±10%
K
±20%
M
Packaging
Description
Code
Tape and Reel
T
Inductance (μH)
Code Inductance
1R1
1.1
470
47
101
100
Rev Date: 05/19/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
PCD Series
SMD Unshielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

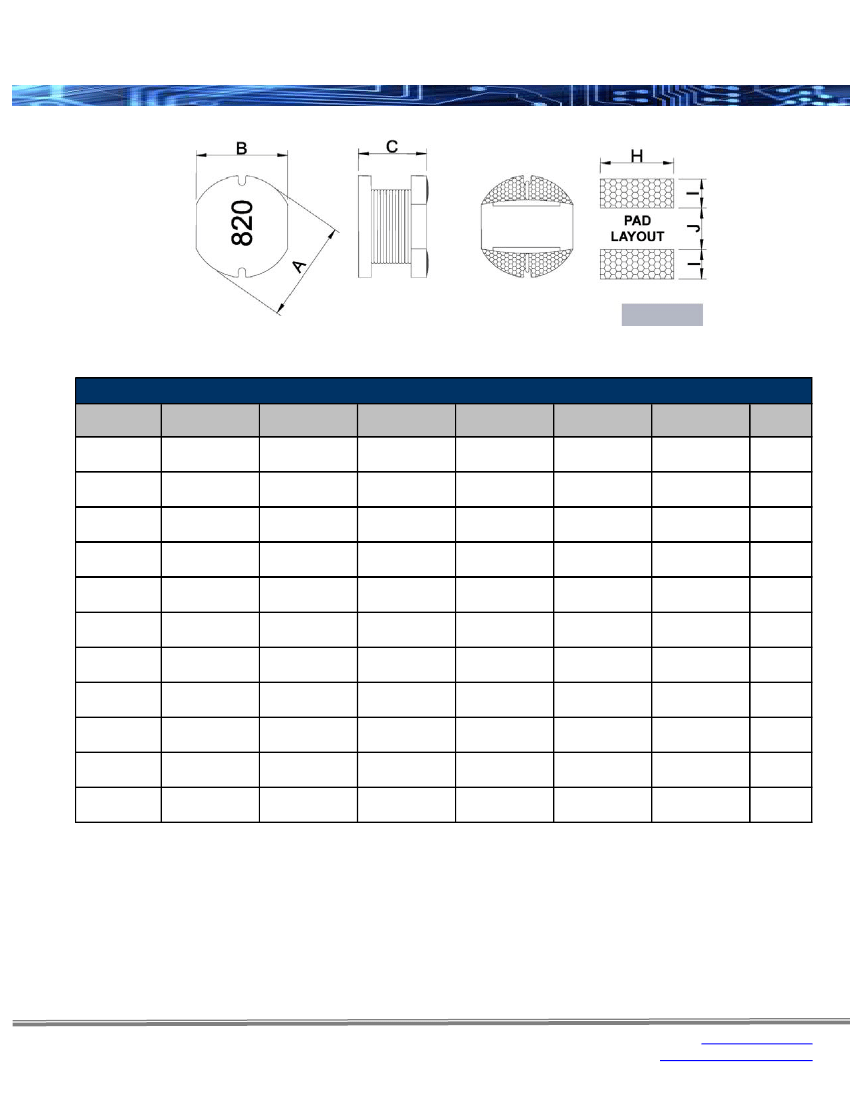

Mechanical Specifications - Standard
Type/Code
PCD0301
PCD0302
PCD0403
PCD0502
PCD0503
PCD0504
PCD0703
PCD0705
PCD1004
PCD1005
PCD1006
A
Max.
0.138 ± 0.012
3.5 ± 0.3
0.138 ± 0.012
3.5 ± 0.3
0.177 ± 0.012
4.5 ± 0.3
0.228 ± 0.012
5.8 ± 0.3
0.228 ± 0.012
5.8 ± 0.3
0.228 ± 0.012
5.8 ± 0.3
0.307 ± 0.012
7.8 ± 0.3
0.307 ± 0.012
7.8 ± 0.3
0.394 ± 0.016
10.0 ± 0.4
0.394 ± 0.016
10.0 ± 0.4
0.394 ± 0.016
10.0 ± 0.4
B
Max.
0.118 ± 0.012
3.0 ± 0.3
0.118 ± 0.012
3.0 ± 0.3
0.157 ± 0.012
4.0 ± 0.3
0.205 ± 0.012
5.2 ± 0.3
0.205 ± 0.012
5.2 ± 0.3
0.205 ± 0.012
5.2 ± 0.3
0.276 ± 0.012
7.0 ± 0.3
0.276 ± 0.012
7.0 ± 0.3
0.354 ± 0.012
9.0 ± 0.3
0.354 ± 0.012
9.0 ± 0.3
0.354 ± 0.012
9.0 ± 0.3
C
Max.
0.055
1.4
0.094
2.4
0.138
3.5
0.110
2.8
0.138
3.5
0.191
4.85
0.157
4.0
0.217
5.5
0.177
4.5
0.228
5.8
0.295
7.5
H
0.138
3.5
0.138
3.5
0.177
4.5
0.217
5.5
0.217
5.5
0.217
5.5
0.295
7.5
0.295
7.5
0.374
9.5
0.374
9.5
0.374
9.5
I
0.063
1.6
0.063
1.6
0.069
1.75
0.085
2.15
0.085
2.15
0.085
2.15
0.118
3.0
0.118
3.0
0.148
3.75
0.148
3.75
0.148
3.75
J
0.031
0.8
0.031
0.8
0.059
1.5
0.067
1.7
0.067
1.7
0.067
1.7
0.079
2.0
0.079
2.0
0.098
2.5
0.098
2.5
0.098
2.5
Units
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 05/19/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
PCD Series
SMD Unshielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – PCD0301
Code
1R0
1R4
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
221
331
391
L
(μH)
1.0
1.4
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
220
330
390
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
DCR
(Ω) Max
0.060
0.069
0.081
0.098
0.240
0.135
0.270
0.188
0.400
0.450
0.500
0.650
0.750
0.850
1.200
1.300
1.500
1.500
2.800
1.880
4.000
4.500
5.000
6.500
7.500
14.000
22.000
26.000
I DC
(A) Max
1.40
1.40
1.30
1.24
1.20
1.04
1.00
0.79
0.90
0.80
0.70
0.65
0.60
0.55
0.50
0.45
0.40
0.36
0.30
0.23
0.25
0.20
0.18
0.16
0.15
0.13
0.11
0.10
Rev Date: 05/19/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
PCD Series
SMD Unshielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – PCD0302, PCD0403, PCD0502
Code
1R0
1R2
1R4
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
L (μH)
1.0
1.2
1.4
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
Test Condition
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
DCR (Ω) Max
0302
0.045
0.050
0.050
0.055
0.070
0.085
0.100
0.120
0.130
0.170
0.185
0.200
0.250
0.320
0.350
0.460
0.520
0.660
0.760
0.920
1.120
1.270
1.500
2.000
2.440
2.850
3.400
4.470
5.110
7.310
8.500
10.190
-
-
-
-
0403
0.049
0.053
0.056
0.061
0.064
0.072
0.079
0.086
0.094
0.109
0.126
0.131
0.147
0.182
0.210
0.235
0.338
0.378
0.522
0.540
0.587
0.844
0.937
1.117
1.140
1.190
1.400
1.800
1.920
2.030
2.890
3.760
4.260
5.140
6.370
9.240
0502
0.021
0.050
-
0.060
0.065
0.070
0.080
0.100
0.120
0.140
0.150
0.160
0.170
0.200
0.230
0.250
0.300
0.350
0.400
0.500
0.550
0.650
0.750
0.950
1.200
1.400
1.750
2.000
2.600
3.000
3.700
4.300
6.000
6.700
-
-
0302
2.200
2.100
2.000
1.700
1.650
1.600
1.400
1.040
1.000
1.000
0.950
0.950
0.900
0.760
0.685
0.635
0.525
0.500
0.405
0.380
0.355
0.330
0.290
0.260
0.230
0.200
0.180
0.160
0.150
0.140
0.100
0.090
-
-
-
-
I DC (A) Max
0403
2.700
2.540
2.500
2.240
2.330
2.250
2.160
2.000
1.840
1.620
1.480
1.430
1.370
1.040
0.970
0.850
0.740
0.680
0.620
0.560
0.520
0.440
0.420
0.370
0.340
0.300
0.256
0.212
0.200
0.180
0.174
0.168
1.600
0.158
0.148
0.128
0502
4.00
4.20
-
4.00
3.70
3.50
3.20
2.70
2.40
2.00
1.80
1.50
1.40
1.30
1.10
1.05
1.00
0.90
0.85
0.75
0.70
0.60
0.55
0.50
0.45
0.40
0.35
0.25
0.25
0.20
0.18
0.17
0.16
0.15
-
-
Rev Date: 05/19/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
PCD Series
SMD Unshielded Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – PCD0503, PCD0504, PCD0703
Code
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
L (μH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
Test Condition
0503, 0504
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
7.96MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
0703
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
100KHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
2.52MHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
1KHz, 0.25V
0503
0.03
0.03
0.03
0.03
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.10
0.13
0.16
0.19
0.21
0.28
0.32
0.38
0.42
0.43
0.50
0.68
0.82
1.10
1.20
1.50
1.80
2.00
2.90
3.30
3.70
4.90
5.00
6.00
6.60
8.00
DCR (Ω) Max
0504
0.010
0.012
0.013
0.016
0.017
0.025
0.034
0.035
0.035
0.042
0.060
0.060
0.100
0.120
0.140
0.150
0.180
0.200
0.230
0.320
0.370
0.420
0.460
0.600
0.700
0.930
1.100
1.380
1.570
1.600
1.820
-
2.760
3.100
4.050
-
-
0703
0.018
-
0.020
-
-
-
0.025
-
0.039
-
0.040
0.080
0.080
0.090
0.104
0.111
0.129
0.153
0.170
0.217
0.252
0.282
0.332
0.406
0.481
0.536
0.755
1.022
1.200
1.306
1.495
1.700
2.100
2.660
3.000
3.630
4.760
0503
4.50
4.20
4.10
3.70
3.50
3.20
2.80
2.60
2.50
2.40
2.20
2.00
1.80
1.75
1.70
1.60
1.50
1.40
1.10
1.00
0.90
0.85
0.80
0.65
0.60
0.58
0.43
0.41
0.38
0.35
0.28
0.26
0.20
0.19
0.18
0.15
0.13
I DC (A) Max
0504
5.00
4.77
4.50
4.25
4.20
4.00
2.50
2.20
2.00
1.82
1.69
1.56
1.44
1.40
1.30
1.23
1.11
0.97
0.880
0.800
0.720
0.680
0.610
0.580
0.520
0.480
0.400
0.380
0.350
0.340
0.320
-
0.300
0.290
0.280
-
-
0703
1.64
-
1.60
-
-
-
1.59
-
1.54
-
1.49
1.46
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.49
0.40
0.36
0.31
0.29
0.28
0.27
0.26
0.25
0.23
0.21
0.20
Rev Date: 05/19/2011
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
