88E1011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 88E1011

88E1011: DescriptionMicro Peripheral IC,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size131KB，2 Pages; ManufacturerMarvell; Websitehttp://www.marvell.com

Download Datasheet Parametric Compare View All

88E1011 Overview

Micro Peripheral IC,

88E1011 Parametric

Parameter Name	Attribute value
Maker	Marvell
package instruction	,
Reach Compliance Code	compliant
Base Number Matches	1

Preview

Download Datasheet

View All

Transceiver

Solutions

Alaska

Ultra

Gigabit Ethernet Transceivers

88E1011/88E1011S

The Marvell

Alaska

family of Gigabit Ethernet (GbE) over copper transceivers are the industryÕs lowest power,

smallest form factor, highest performance, and highest port density solutions in volume production. The Alaska

Ultra single-channel GbE transceivers, consisting of the 88E1011 and 88E1011S devices, are the industryÕs first

GbE PHYs optimized for the mobile computing market. These devices perform all of the physical layer functions

for 100BASE-TX and 1000BASE-T full or half duplex Ethernet on category 5 (CAT 5) twisted pair cable, and

10BASE-T full or half duplex Ethernet on CAT 3, 4 and 5 cable. The Alaska Ultra

device (88E1011S) offers

additional support of 1000BASE-X through an integrated 1.25 GHz Serializer/Deserializer (SERDES).

Waveshape

Filter

10/100/1000

Transmit PCS

Trellis

Decoder

Decision

Feedback

Equalizer

Fiber Channel

Transmit

(88E1011S only)

10/100/1000

Receive PCS

JTAG

2.5V/3.3V

I/O

TRST#

TCK

TDI

TMS

TDO

TX_EN

TX_ER

TXD[7:0]

GTX_CLK

TX_CLK

S_IN+/-

S_CLK+/-

S_OUT+/-

RX_DV

RX_ER

RXD[7:0]

RX_CLK

CRS

COL

XTAL1

XTAL2

RESET#

125CLK

COMA

PRODUCT OVERVIEW

D/A

MDI[3:0]+/-

Echo

Canceller

Timing

Control

Near End

Crosstalk

Canceller

Feed

Forward

Equalizer

LED_LINK10

LED_LINK100

LED_LINK1000

LED_DUPLEX

LED_RX

LED_TX

CONFIG[6:0]

Active Hybrid

Gain Control

Baseline

10BASE-T

Receiver

MDC

MDIO

INT#

RSET

HSDAC+/-

TSTPT

A/D

DPLL

Registers

Auto-Negotiation

Skew

Control

Management

Interface

Bias/Test

LED/

Configuration

Clock/Reset

Low Power

SEL_25V

Down Modes

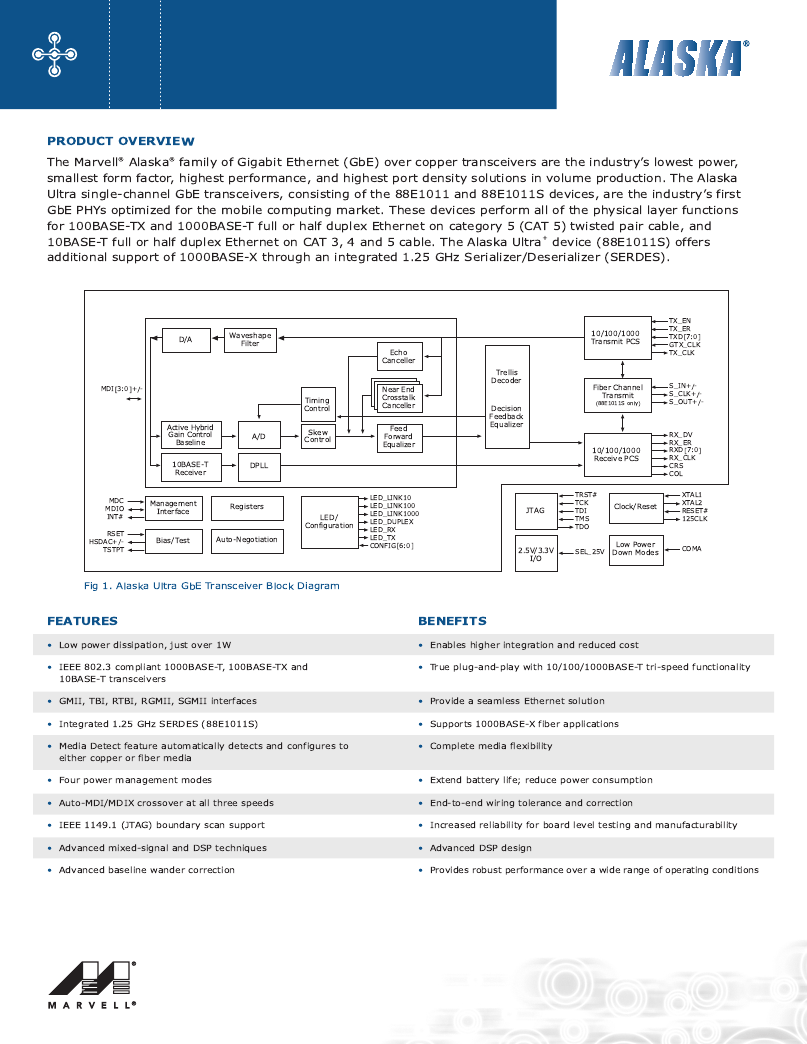

Fig 1. Alaska Ultra GbE Transceiver Block Diagram

FEATURES

Low power dissipation, just over 1W

IEEE 802.3 compliant 1000BASE-T, 100BASE-TX and

10BASE-T transceivers

GMII, TBI, RTBI, RGMII, SGMII interfaces

Integrated 1.25 GHz SERDES (88E1011S)

Media Detect feature automatically detects and configures to

either copper or fiber media

Four power management modes

Auto-MDI/MDIX crossover at all three speeds

IEEE 1149.1 (JTAG) boundary scan support

Advanced mixed-signal and DSP techniques

Advanced baseline wander correction

BENEFITS

Enables higher integration and reduced cost

True plug-and-play with 10/100/1000BASE-T tri-speed functionality

Provide a seamless Ethernet solution

Supports 1000BASE-X fiber applications

Complete media flexibility

Extend battery life; reduce power consumption

End-to-end wiring tolerance and correction

Increased reliability for board level testing and manufacturability

Advanced DSP design

Provides robust performance over a wide range of operating conditions

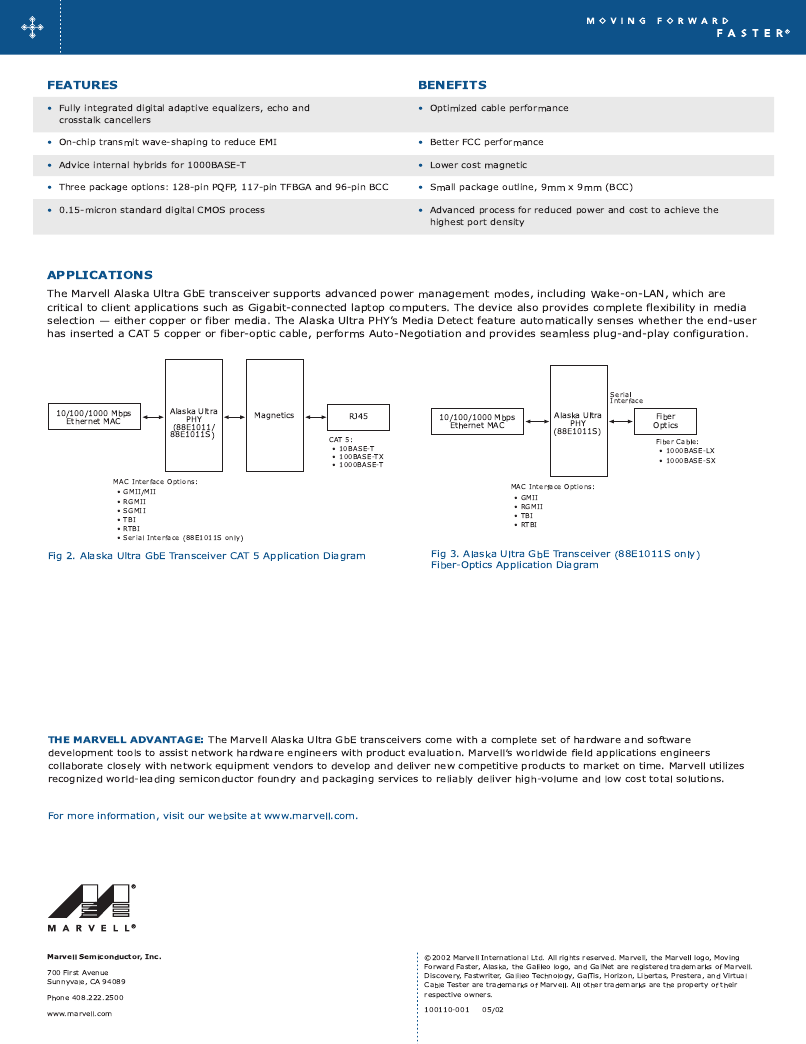

88E1011 Related Products

	88E1011	88E1011S
Description	Micro Peripheral IC,	Micro Peripheral IC
Maker	Marvell	Marvell
Reach Compliance Code	compliant	compliant
Base Number Matches	1	1
