3011W1PXK99A10X datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3011W1PXK99A10X

3011W1PXK99A10X: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

3011W1PXK99A10X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3011W1PXK99A10X	-	-	View	Buy Now

3011W1PXK99A10X Overview

D Subminiature Connector,

3011W1PXK99A10X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	3011W1PXK99A10X
Base Number Matches	1

Preview

Download Datasheet

View All

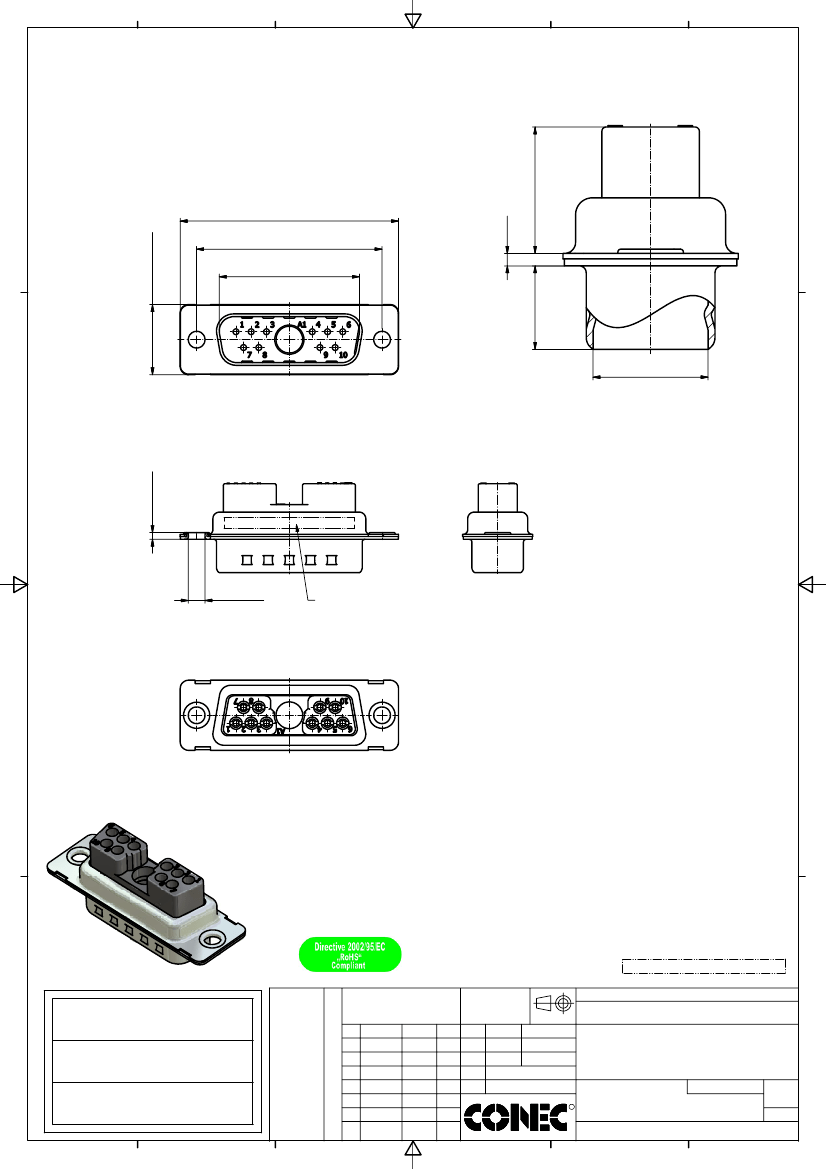

(5:1)

39,22

+ 0,3

- 0,46

0,33

12,6

+ 0,43

33,32

+ 0,13

- 0,12

25,17

+ 0,2

- 0,05

0,9

0,12

+ 0,18

9,1

8,26

+ 0,22

- 0,03

1,2

0,2

- 0

+ 0,2

see note 3

NOTES:

1. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

2. INSULATORS: PBT GF UL 94 V-0, BLACK

3. CONNECTOR IS PART MARKED: 3011W1PXK99A10X CONEC ABC

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

CUSTOMER APPROVAL DATE:

DO NOT ALTER CAD DRAWING BY HAND

tolerance

ISO 2768-m

date

drawn

appd.

norm

d-old

dim. in mm

name

scale:

material:

title:

2:1 (5.1)

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

see notes

NAME:

TITLE:

21.05.07

Schmidt

Koch

D-SUB COMBINATION MALE

11W1P CRIMP STYLE

dwg no:

COMPANY NAME:

Inventor 10

Origin

13K1A2030

part no:

DIN-

sh:

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

rev. description

date

name

3011W1PXK99A10X
