THIN FILM CHIP INDUCTORS
ATFC-0201
FEATURES:
• Photolithographic single layer ceramic chip
• High SRF, excellent Q, superior temperature stability
• Tight tolerance ± 0.1nH available
• Self resonant frequency controlled within 10%
• Stable inductance in high frequency circuit
• Highly stable design for critical needs
RoHS
Compliant
0.6 x 0.3
0.60 x 0.30
x
x
0.23m m
0.23mm
|
APPLICATIONS:
• Cell phones and GPS
• VCO, TCXO Circuit and RF Transceiver Module
• Wireless LAN, Bluetooth Module, Communication Appliances
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature :
Storage temperature:
Part Number
ATFC-0201-
Inductance Code
ATFC-0201-0N1
ATFC-0201-0N2
ATFC-0201-0N3
ATFC-0201-0N4
ATFC-0201-0N5
ATFC-0201-0N6
ATFC-0201-0N7
ATFC-0201-0N8
ATFC-0201-0N9
ATFC-0201-1N0
ATFC-0201-1N1
ATFC-0201-1N2
ATFC-0201-1N3
ATFC-0201-1N4
ATFC-0201-1N5
ATFC-0201-1N6
ATFC-0201-1N7
ATFC-0201-1N8
ATFC-0201-1N9
ATFC-0201-2N0
ATFC-0201-2N1
ATFC-0201-2N2
ATFC-0201-2N3
ATFC-0201-2N4
ATFC-0201-2N5
ATFC-0201-2N6
ATFC-0201-2N7
ATFC-0201-2N8
ATFC-0201-2N9
ATFC-0201-3N0
ATFC-0201-3N1
ATFC-0201-3N2
ATFC-0201-3N3
ATFC-0201-3N4
ATFC-0201-3N5
ATFC-0201-3N6
ATFC-0201-3N7
ATFC-0201-3N8
ATFC-0201-3N9
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 /2008
CE RTIFIED
ATFC-0201
-25˚C to +85˚C
25±3ºC; Humidity <80%RH in Tape & Reel.
L(nH)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
Tolerance
(±%)
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
B, C, S
Q, Min @ 500MHz
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
SRF Min
(GHz)
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
8
8
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
6
6
6
R
DC
Max
(
Ω
)
0.20
0.20
0.20
0.25
0.25
0.25
0.30
0.30
0.30
0.30
0.35
0.35
0.45
0.45
0.45
0.55
0.55
0.55
0.55
0.70
0.70
0.70
0.80
0.80
0.80
0.80
0.80
1.00
1.00
1.00
1.00
1.00
1.00
1.20
1.20
1.20
1.20
1.20
1.20
I
DC
Max
(mA)
400
400
400
350
350
350
300
300
300
300
300
300
250
250
250
200
200
200
200
200
200
200
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
Revised: 05.20.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTORS
ATFC-0201
Key Electrical Specifications (Con’d)
Part Number
AITFC-0201-
Inductance Code
ATFC-0201-4N0
ATFC-0201-4N4
ATFC-0201-4N7
ATFC-0201-4N9
ATFC-0201-5N6
ATFC-0201-6N1
ATFC-0201-6N8
ATFC-0201-7N4
ATFC-0201-8N2
ATFC-0201-9N1
ATFC-0201-9N2
ATFC-0201-10N
L(nH)
4.0
4.4
4.7
4.9
5.6
6.1
6.8
7.4
8.2
9.1
9.2
10
Tolerance
(±%)
B, C, S
B, C, S
B, C, S
B, C, S
G,
J
G,
J
G,
J
G,
J
G,
J
G,
J
G,
J
G,
J
Q, Min @ 500MHz
8
8
8
8
8
8
8
8
8
8
8
8
SRF Min
(GHz)
6
6
6
6
4
4
4
4
3
3
3
2
R
DC
Max
(
Ω
)
1.20
1.30
1.40
1.60
1.80
2.00
2.30
2.80
3.00
3.25
3.25
3.50
I
DC
Max
(mA)
150
140
130
130
130
120
110
110
110
100
100
80
RoHS
Compliant
0.6 x 0.3
0.60 x 0.30
x
x
0.23m m
0.23mm
|
Test Conditions and Equipments
Inductance (L)
a. Test
equipment:
Agilent4287A+Agilent16196C
b. Test frequency:
500MHz
PART IDENTIFICATION:
ATFC- 0201-
-
Inductance Code
Please
refer to the
table above
Inductance Tolerance
J:
±5%
G: ±2%
S:
±0.3nH
C:
±0.2nH
B:
±0.1nH
Packaging
T: Tape and Reel
(10kpcs / reel)

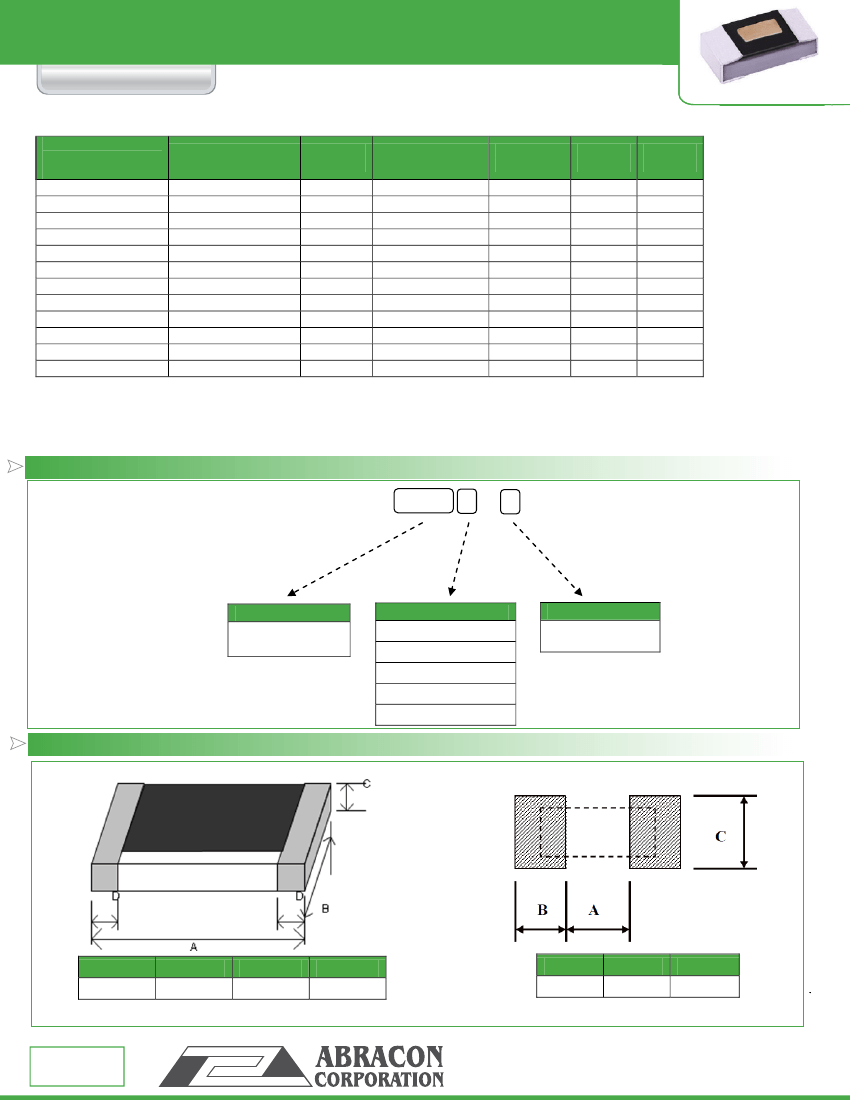

OUTLINE DIMENSIONS:
˚
Recommended Land Pattern
A
0.60±0.05
B
C
D
0.30±0.05
0.23±0.05 0.15±0.05
A
0.30
B
0.25
C
0.30±0.2
Dimension: mm
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 /2008
CE RTIFIED
Revised: 05.20.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTORS
ATFC-0201

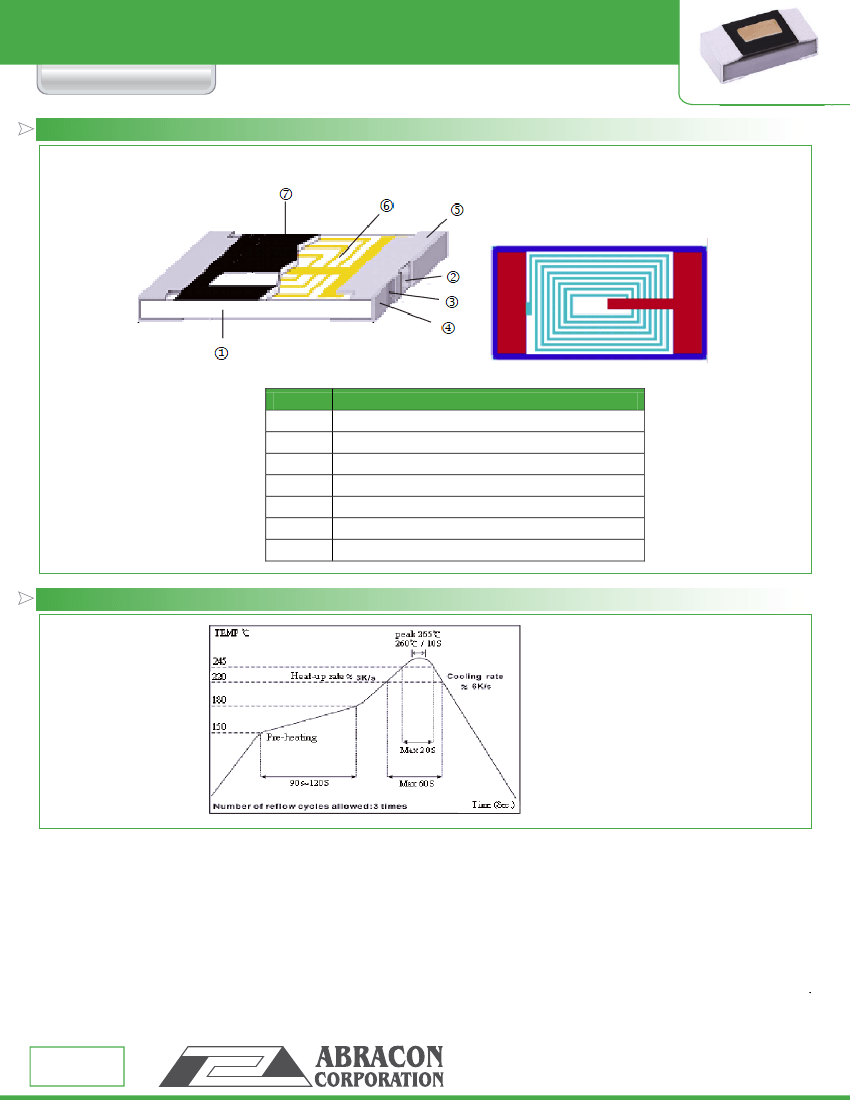

MATERIALS:
RoHS
Compliant
0.6 x 0.3
0.60 x 0.30
x
x
0.23m m
0.23mm
|
No.
1
2
3
4
5
6
7
Material
Alumina
Substrate
Inner Electrode (Ni-Cr)
Barrier
Layer
(Ni)
External Electrode (Sn)
Edge Electrode
Cu Circuits
Overcoat
REFLOW PROFILE:
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 /2008
CE RTIFIED
Revised: 05.20.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTORS
ATFC-0201

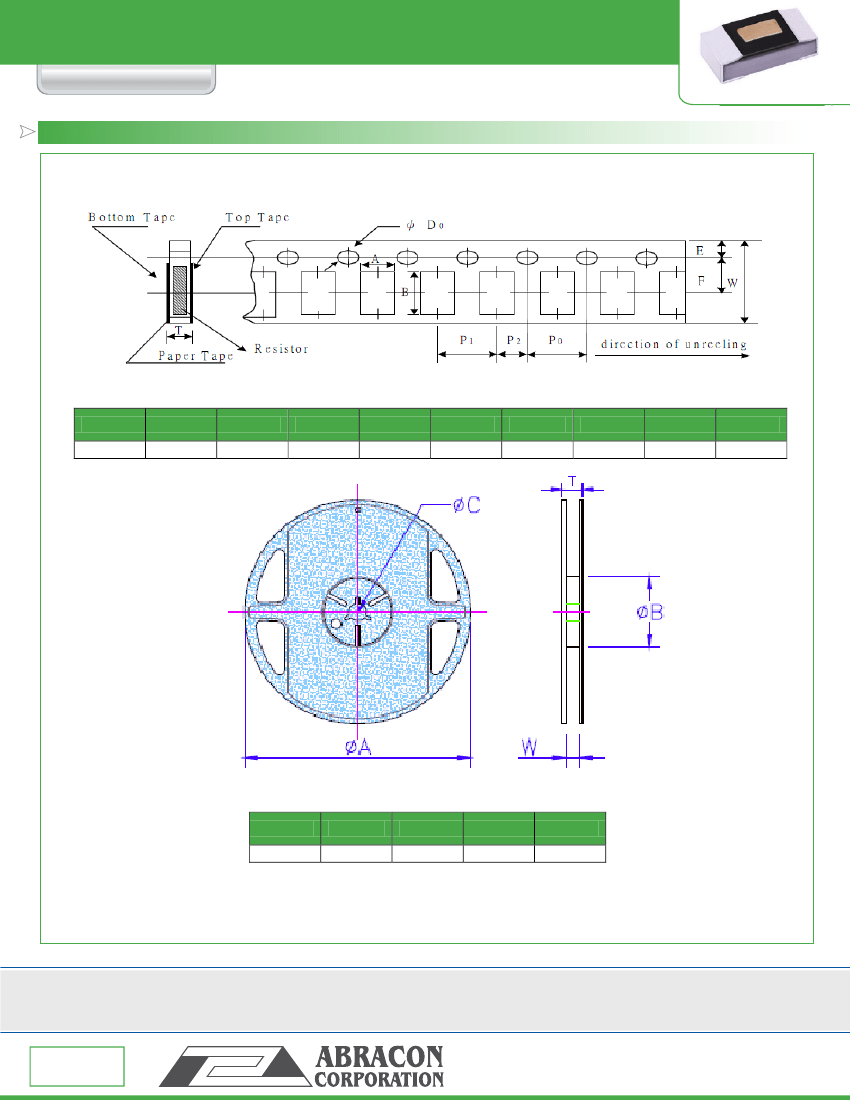

TAPE & REEL:
T= tape and reel (10,000pcsreel)
RoHS
Compliant
0.6 x 0.3
0.60 x 0.30
x
x
0.23m m
0.23mm
|
A
0.40±0.05
B
0.70±0.05
W
8.00±0.10
E
1.75±0.05
F
3.50±0.05
P0
4.00±0.10
P1
2.00±0.05
P2
2.00±0.05
ΦD0
1.55±0.03
T
0.42±0.02
ΦA
178±1.0
ΦB
60.0±1.0
ΦC
13.5±0.70
W
9.5±1.0
T
11.5±1.0
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products;
suitable
for Commercial,
Industrial
and, where designated,
Automotive
Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace,
Life-dependant
Medical applications or any application requiring high reliability where
component failure
could
result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating
environment,
written consent and
authorization
from Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 /2008
CE RTIFIED
Revised: 05.20.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-800
| www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
