TEMEX
TMX M369
SAW B
ANDPASS
F
ILTER
- PCS-CDMA T
X
-IF
Specification
All performances include temperature variations
Source impedance (Balanced or single)
Load impedance (Balanced or single)
Operating temperature range
Center frequency F
c
Template on the amplitude, reference is loss at F
c
Bandwidth at –2 dB
Bandwidth at –3 dB
Attenuation at F
c
+4.95 MHz
Attenuation at F
c
+9.9 MHz ± 0.615 MHz
All band rejection until 500 MHz
Insertion loss at F
c
Amplitude ripple within F
c
± 0.5 MHz
Phase linearity within F
c
± 0.63 MHz
Package type & size
Length x width
Height
Pin Out
Input (+)
Input (–)
Case Ground
1
6
2, 5
Output (+)
Output (–)
To Be Defined
mm
2
mm
MHz
MHz
dB
dB
dB
dB
dB
°rms
Ω
Ω
°C
MHz
Minimum
Typical
1000
1000
Maximum
–30
130.38
±0.5
±0.615
35
38
30
±1.400
±1.70
50
45
40
6.5
0.5
0.4
SMP 38
3.8 x 3.8
1.3
4
3
1, 2, 3, 4, 5, 6
+75
8
2
2.5
1.55

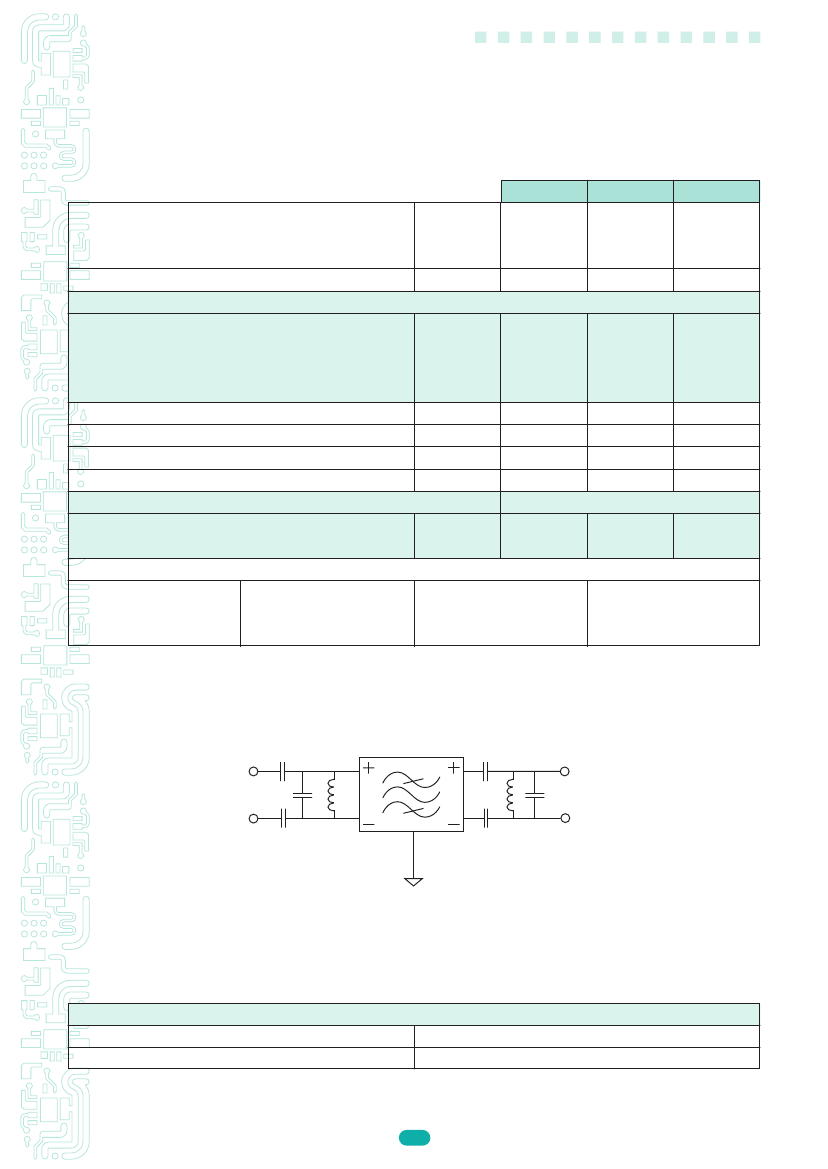

Matching network for 1000
Ω
/ 1000
Ω
configuration
C
1
C
3
L
1
L
2
C
4
C
T
Input
1000
Ω
Balanced
C
T
C
2
Output
1000
Ω
Balanced
GND
Temex Microsonics test fixture
L
1
= 220 nH Q
≥
50 / C
T
= TBD
L
2
= 220 nH Q
≥
50 / C
T
= TBD
Customer PC Board
L
1
= TBD Q
≥
50 / C
T
= TBD
L
2
= TBD Q
≥
50 / C
T
= TBD
C
1
= C
2
= 3.6 pF and C
3
= C
4
= 3 pF / TBD = To Be Defined on customer PC Board
1
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
TEMEX
TMX M369
SAW B
ANDPASS
F
ILTER
- PCS-CDMA T
X
-IF

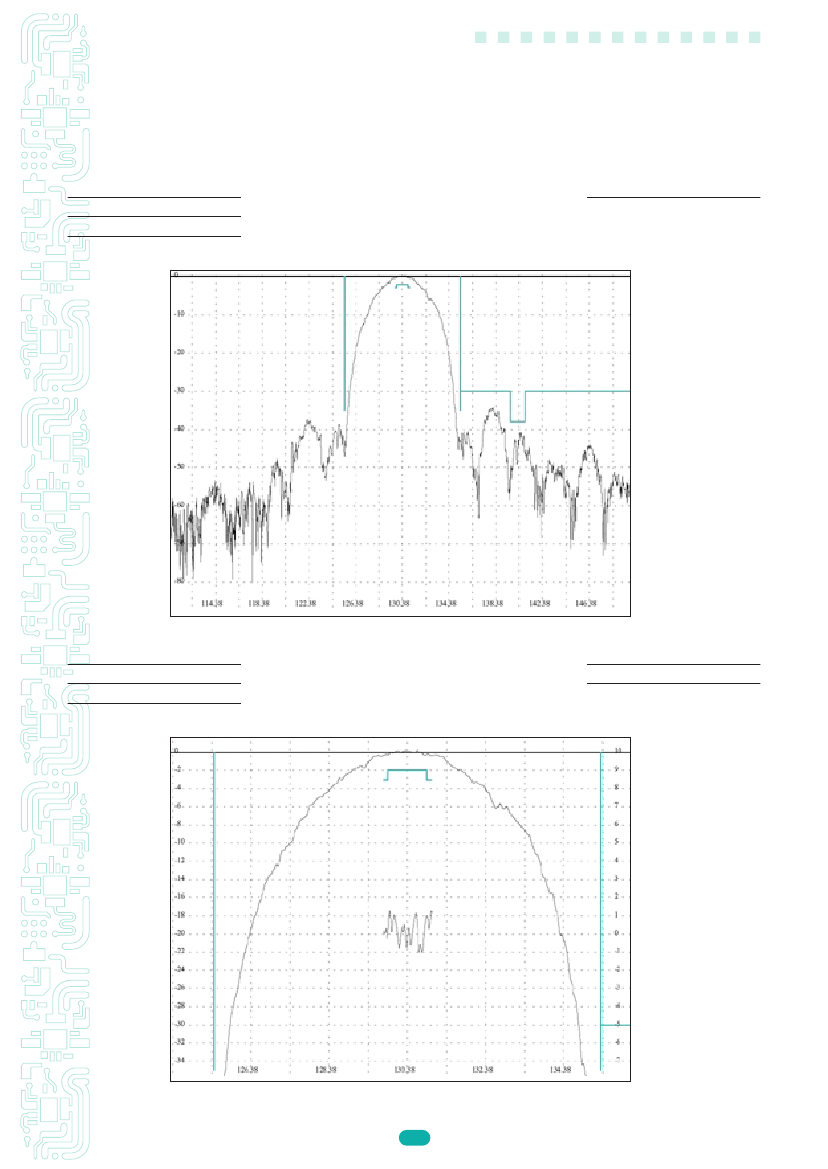

Typical response
Center frequency
Loss reference
Delay reference
Phase reference
= 130.38 MHz
= 6.25 dB
= 0.38 µs
= –83.13 deg
Scale frequency = 2 MHz/div
Scale amplitude = 10 dB/div
2
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
Center frequency
Loss reference
Delay reference
Phase reference
= 130.38 MHz
= 6.25 dB
= 0.38 µs
= –83.13 deg
Scale frequency = 1 MHz/div
Scale amplitude = 2 dB/div
Scale phase
= 1 deg/div
TEMEX
TMX M369
SAW B
ANDPASS
F
ILTER
- PCS-CDMA T
X
-IF

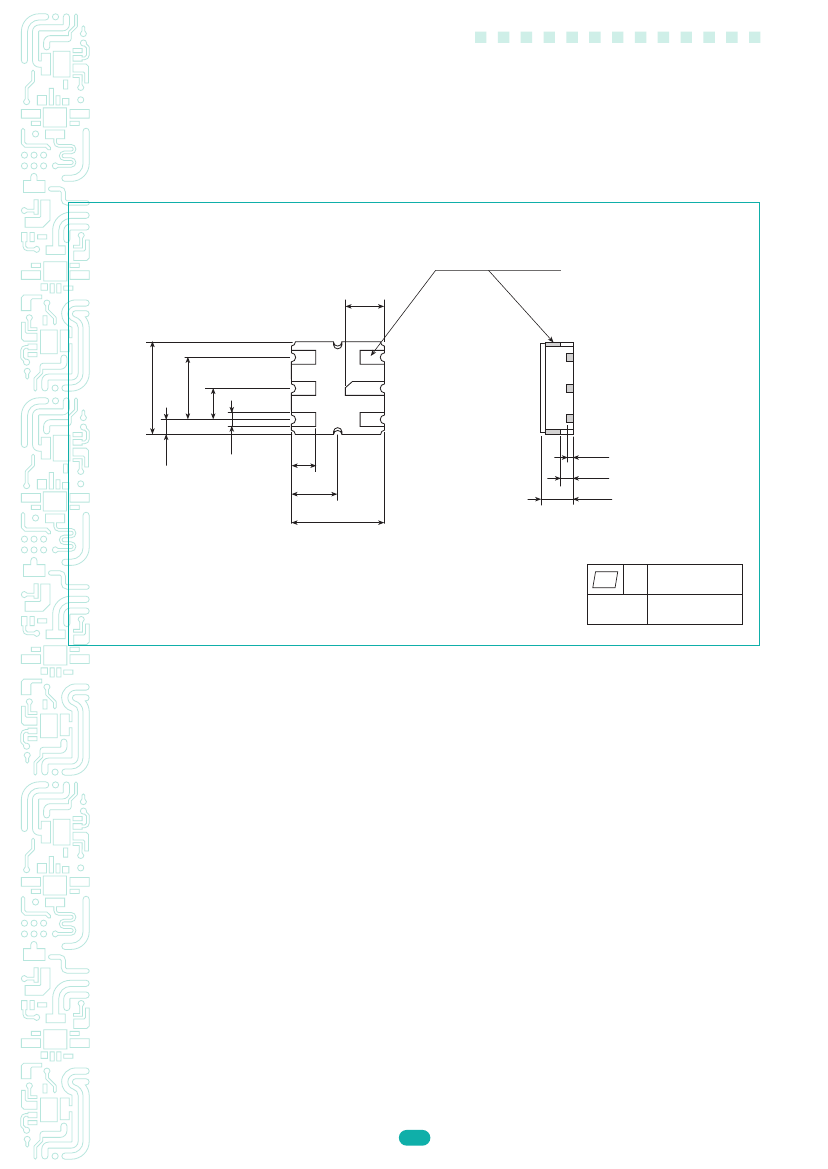

Package
All dimensions are in mm
METALLIZATION: GOLD (0.75
µm
MIN)
OVER NICKEL (4
µm)
1.6
6
1
3.8
2.54
1.27
3
0.6
4
1
1.9
3.8
0.25
0.55
1.325
0.63
BOTTOM VIEW
A
General
Tolerance
0.1mm/25.4mm
±0.2mm
3
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
