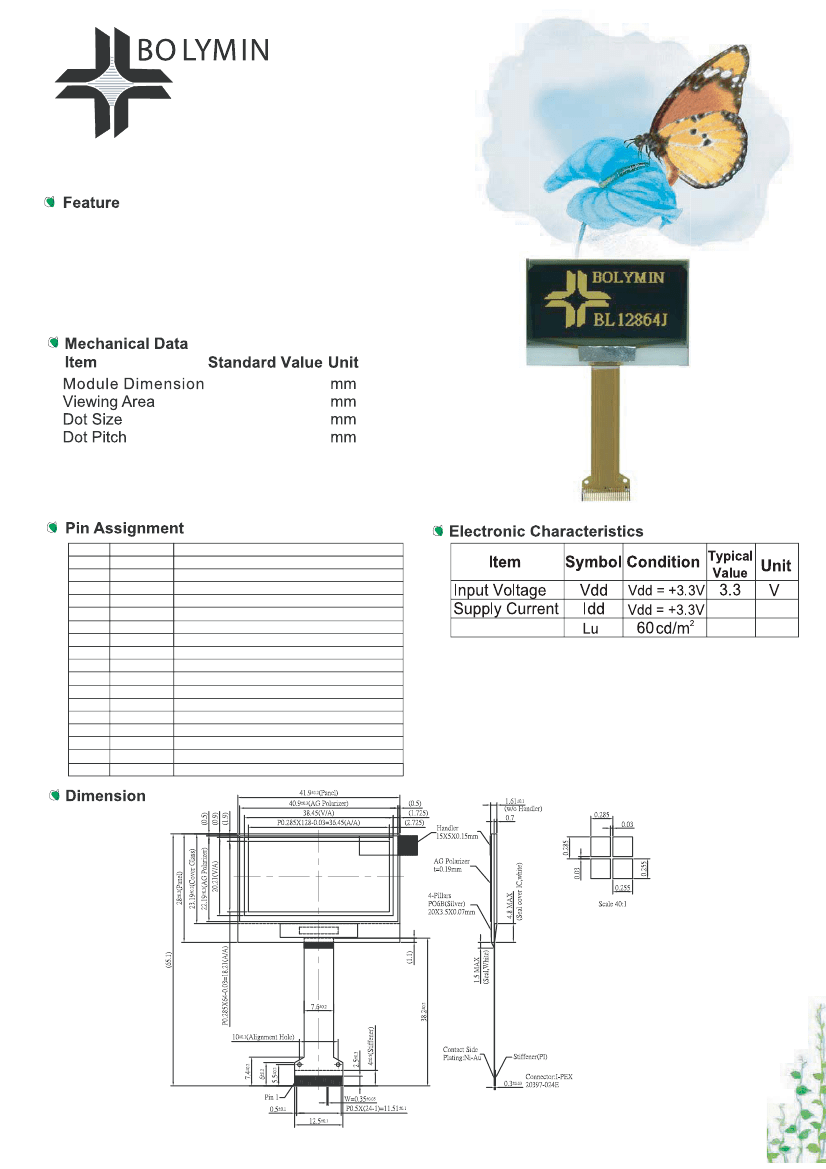

BL12864J: DescriptionOLED Display 128 x 64 dots Built-in controller SSD1325; File Size299KB，1 Pages; ManufacturerBOLYMIN; Websitehttp://www.bolymin.com.tw/

Download Datasheet View All

BL12864J Overview

OLED Display 128 x 64 dots Built-in controller SSD1325

Preview

Download Datasheet

View All

BL12864J

1. OLED Display 128 x 64 dots

2. Built-in controller SSD1325

3. +2.4~ +3.5V single power supply

4. 1/64 duty cycle

5. Color: yellow

41.9 x 28.0

38.45 x 20.21

0.255 x 0.255

0.285 x 0.285

13~20

Symbol

Vss

VSL

Vcc

VCOMH

VDD

BS1

BS2

CS#

RES#

D/C#

R/W#

E(RD)

DB0~DB7

IREF

Vcc

Vss

Function

Ground

The voltage output low level for SEG signals

Positive OLED high voltage power supply

The COM voltage reference pin

Voltage power supply for logic

Interface select pin

Chip select pin

Hardware reset signal

This is data/command control pin

Data read

Data write

Data bus line

The current reference input pin

Positive OLED high voltage power supply

No connection

Ground

Life Time

40,000

hrs
