PECL3-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PECL3-4

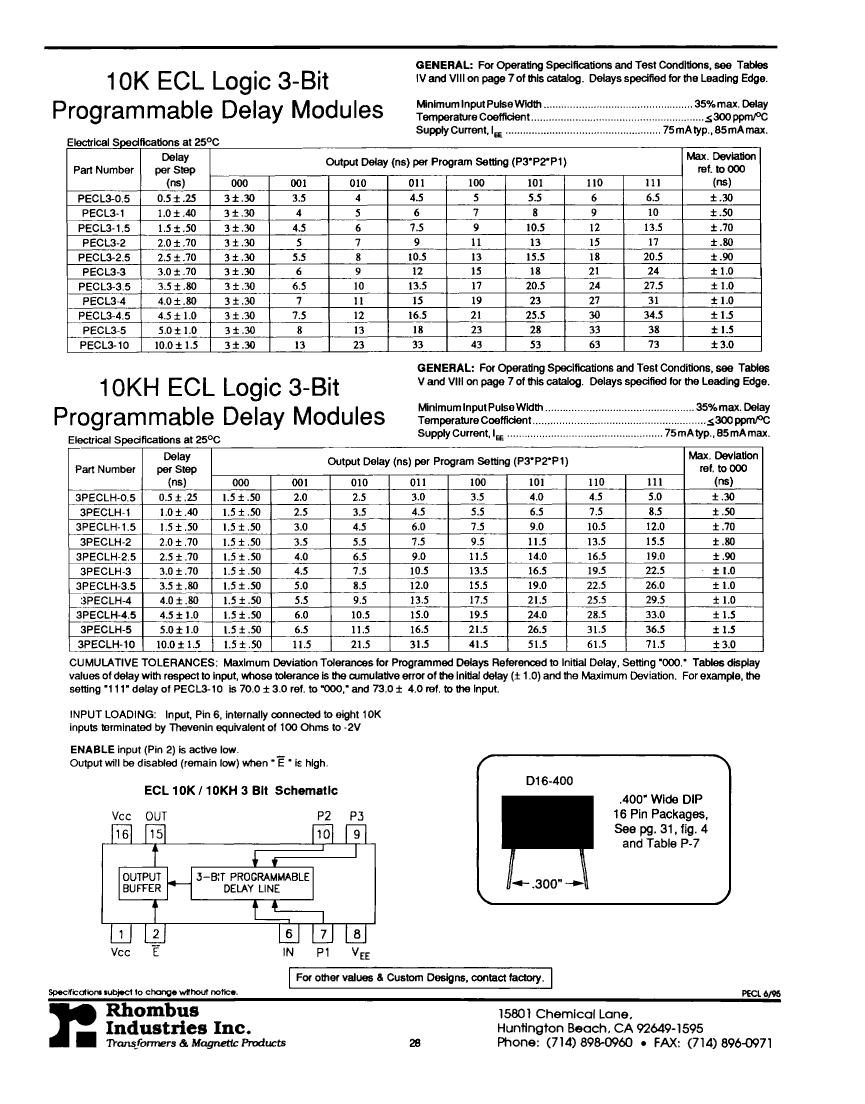

PECL3-4: DescriptionActive Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9; Categorylogic logic; File Size61KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

PECL3-4 Overview

Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9

PECL3-4 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Parts packaging code	DIP
package instruction	0.400 INCH, MODULE, DIP-16/9
Contacts	16/9
Reach Compliance Code	unknown
Other features	MAX RISE TIME CAPTURED
series	10K
JESD-30 code	R-XDIP-T9
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	9
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	85 mA
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	6.99 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	31 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

PECL3-4 Related Products

	PECL3-4	3PECLH-3.5	3PECLH-4	3PECLH-4.5	PECL3-4.5	PECL3-3.5
Description	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9	Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, 0.400 INCH, MODULE, DIP-16/9
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	0.400 INCH, MODULE, DIP-16/9	0.400 INCH, MODULE, DIP-16/9	0.400 INCH, MODULE, DIP-16/9	0.400 INCH, MODULE, DIP-16/9	0.400 INCH, MODULE, DIP-16/9	0.400 INCH, MODULE, DIP-16/9
Contacts	16/9	16/9	16/9	16/9	16/9	16/9
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Other features	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED	MAX RISE TIME CAPTURED
series	10K	10H	10H	10H	10K	10K
JESD-30 code	R-XDIP-T9	R-XDIP-T9	R-XDIP-T9	R-XDIP-T9	R-XDIP-T9	R-XDIP-T9
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1
Number of taps/steps	7	7	7	7	7	7
Number of terminals	9	9	9	9	9	9
Maximum operating temperature	85 °C	75 °C	75 °C	75 °C	85 °C	85 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	85 mA	85 mA	85 mA	85 mA	85 mA	85 mA
programmable delay line	YES	YES	YES	YES	YES	YES
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.99 mm	6.99 mm	6.99 mm	6.99 mm	6.99 mm	6.99 mm
surface mount	NO	NO	NO	NO	NO	NO
technology	ECL	ECL	ECL	ECL	ECL	ECL
Temperature level	OTHER	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	31 ns	26 ns	29.5 ns	33 ns	34.5 ns	27.5 ns
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	-
