TS0508W1S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TS0508W1S

TS0508W1S: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, 0.075 X 0.060 INCH, DIE; CategoryWireless rf/communication Radio frequency and microwave; File Size55KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

TS0508W1S Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, 0.075 X 0.060 INCH, DIE

TS0508W1S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=1W
Nominal attenuation	8 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

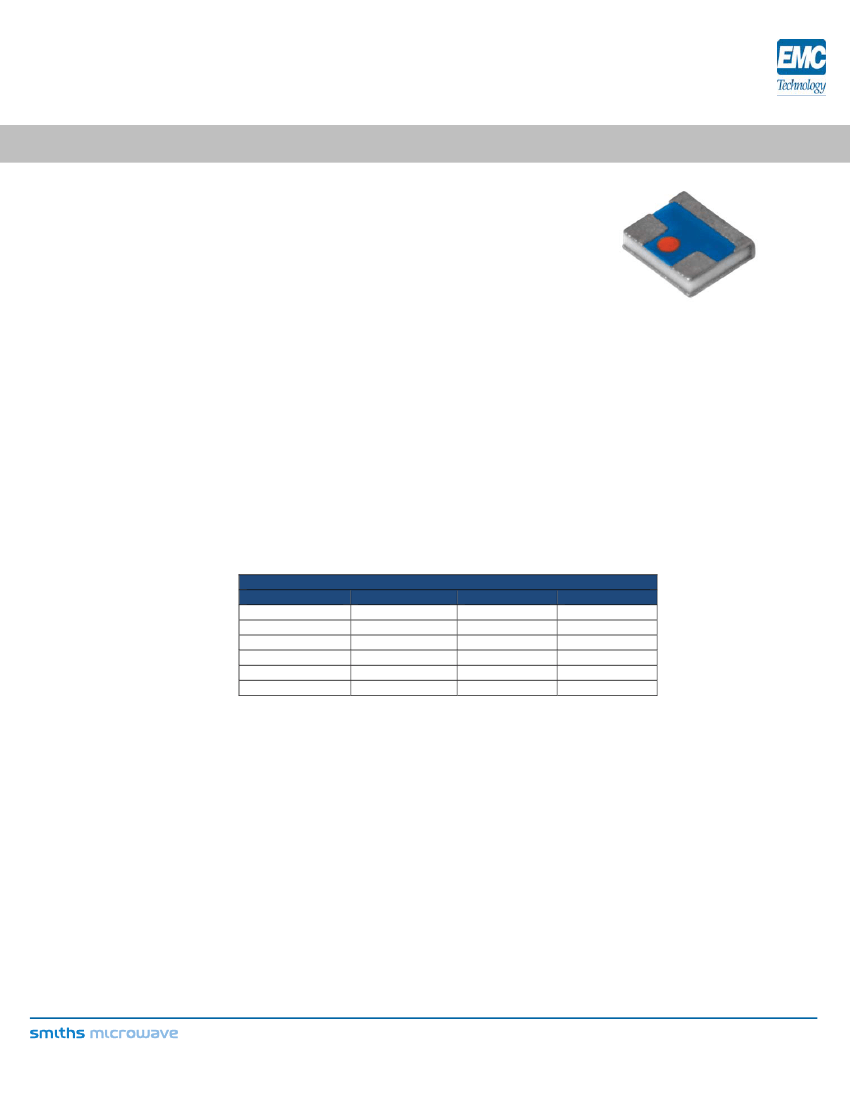

ATTENUATOR

CHIP 1 WATT

DATA SHEET

FEATURES

Small Footprint

High Power

Surface Mount

Low VSWR

Easy Installation

Wide Attenuation Offering

PART SERIES: TS05XXW1S

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators/Circulators

Military

Instrumentation

SHEET 1 OF 2

Dwg 1007585

EN 16-0685

Revision G

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip attenuators worldwide. Chip components are offered in Alumina, Aluminum Nitride,

Beryllium Oxide, and CVD diamond for maximum performance.

ORDERING INFORMATION

Part Identifier:

TS05XXW1S

(XX) – dB Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

ATTENUATION ACCURACY

DC – 4 GHz

4 – 8 GHZ

8 – 12.4 GHz

-0,+ .3

-0,+.5

1–3

±0.3

±0.5

4–6

±0.4

±0.5

7 – 10

±0.5

±0.75

11 – 15

±0.75

+0.5,-3.0

+0.5,-3.5

16 - 20

±1.0

+0.5,-4.0

+1.0,-6.0

100 Milliwatts CW full rated power to 125c, derated linearly to 0 watts at 150c.

1 watt for 10us pulse width @ 1% duty cycle.

DC – 4 GHz - 1.25 Max

4 – 8 GHz - 1.35 Max

8 – 12.4 GHz - 1.50 Max

50 ohms

DC – 12.4 GHz

0 – 20 in 1 dB increments

Input Power CW:

Peak Power:

VSWR:

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Altitude Non-Operating

Altitude Operating:

Vibration:

Shock:

Moisture Resistance

-55˚C to +150˚C

-65˚C to +150˚C

Sea level to 50,000 feet.

Per MIL-STD-202, METHOD 204, COND. D.

Per MIL-STD-202, METHOD 213, COND. I.

Per MIL-STD-202, METHOD 106 except subcycle steps 7a and 7b and polarization and load

are not applicable.

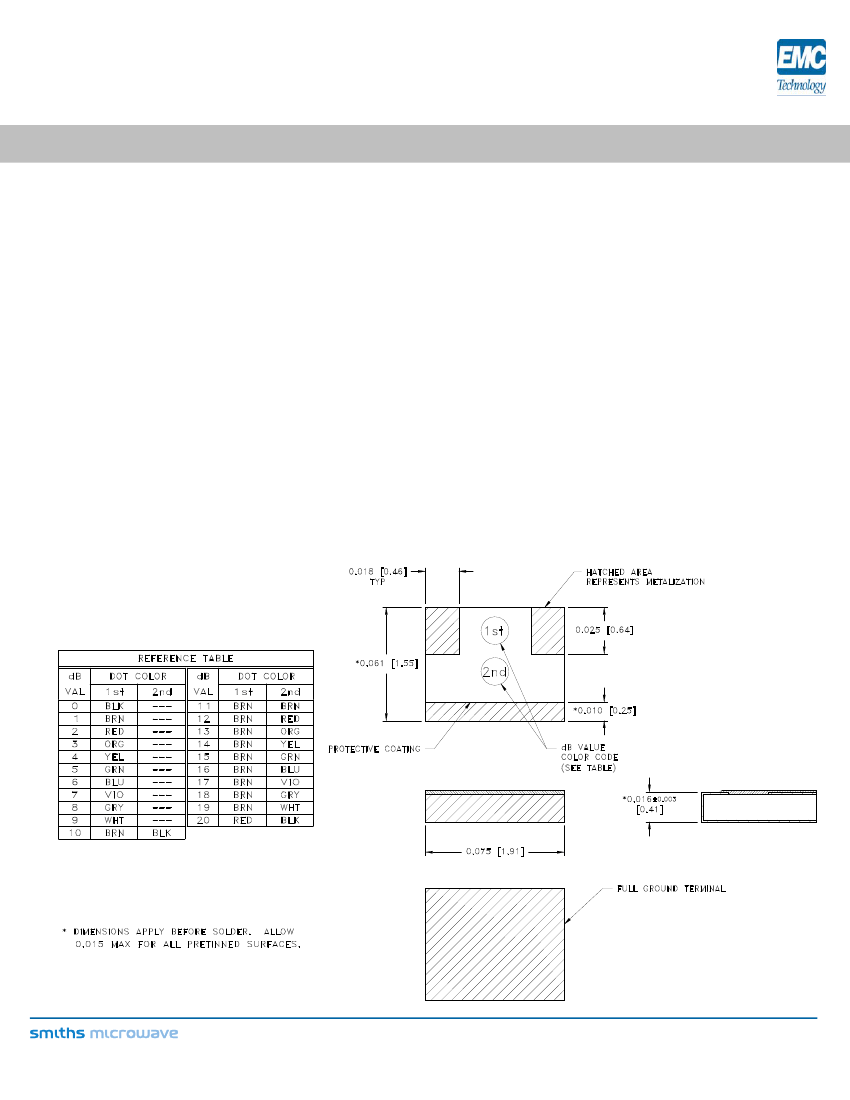

Form 423F110

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
