LNA Module

Product Features

RFL- 2635D

RFL- 3535D

Application

• Wibro, Wimax Repeater

• Base Station

• RF Sub-Systems

• Low Noise Figure

• High Reliability

• High Linearity

• Single Supply Voltage

• Small size by using simple matching circuit board

• High Productivity

• Hybrid Amplifiers on Ceramic Board

• Competitive Price

Description

This LNA Module is a high gain, ultra low noise amplifier module.

It has superior performance comes with a modest price tag.

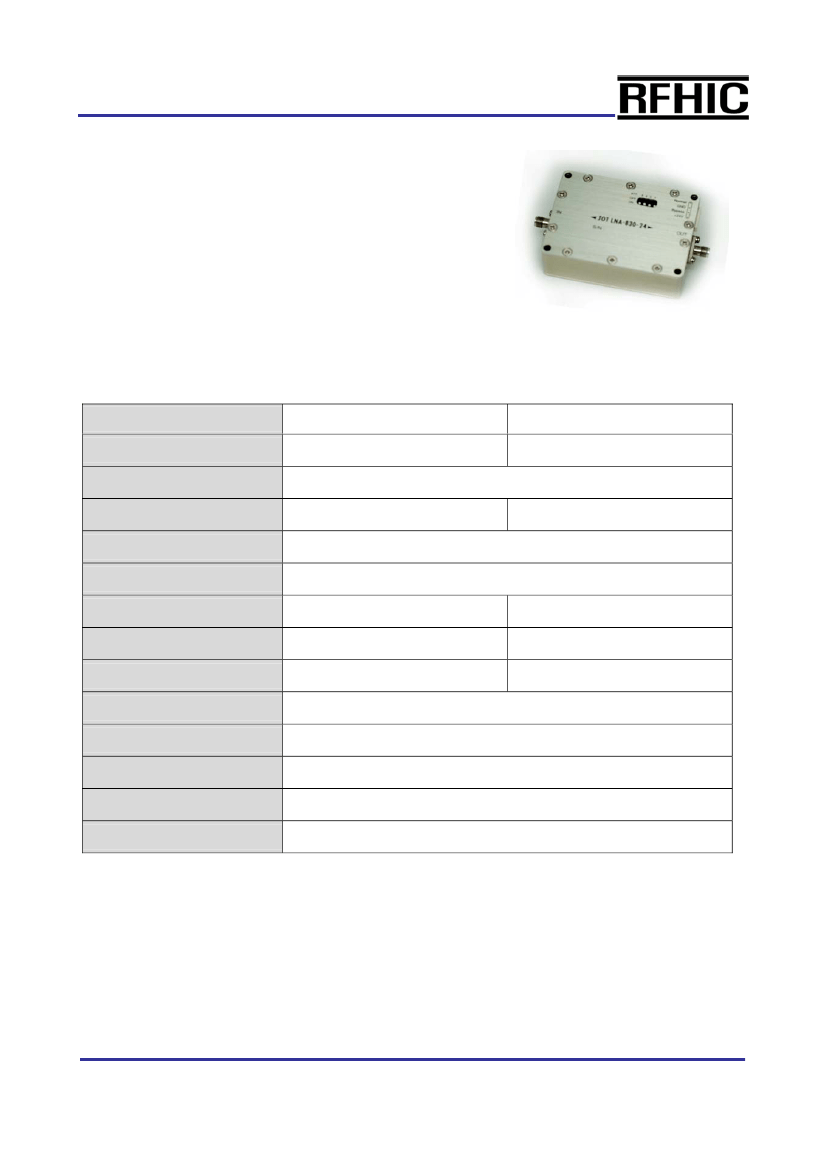

Specifications

PARAMETER

Frequency Range

Bandwidth

Gain

Gain Flatness

VSWR

Noise Figure(Max)

OIP3(Max)

Current(Max)

Supply Voltage

Current Alarm

Operating Temperature

Connector Type

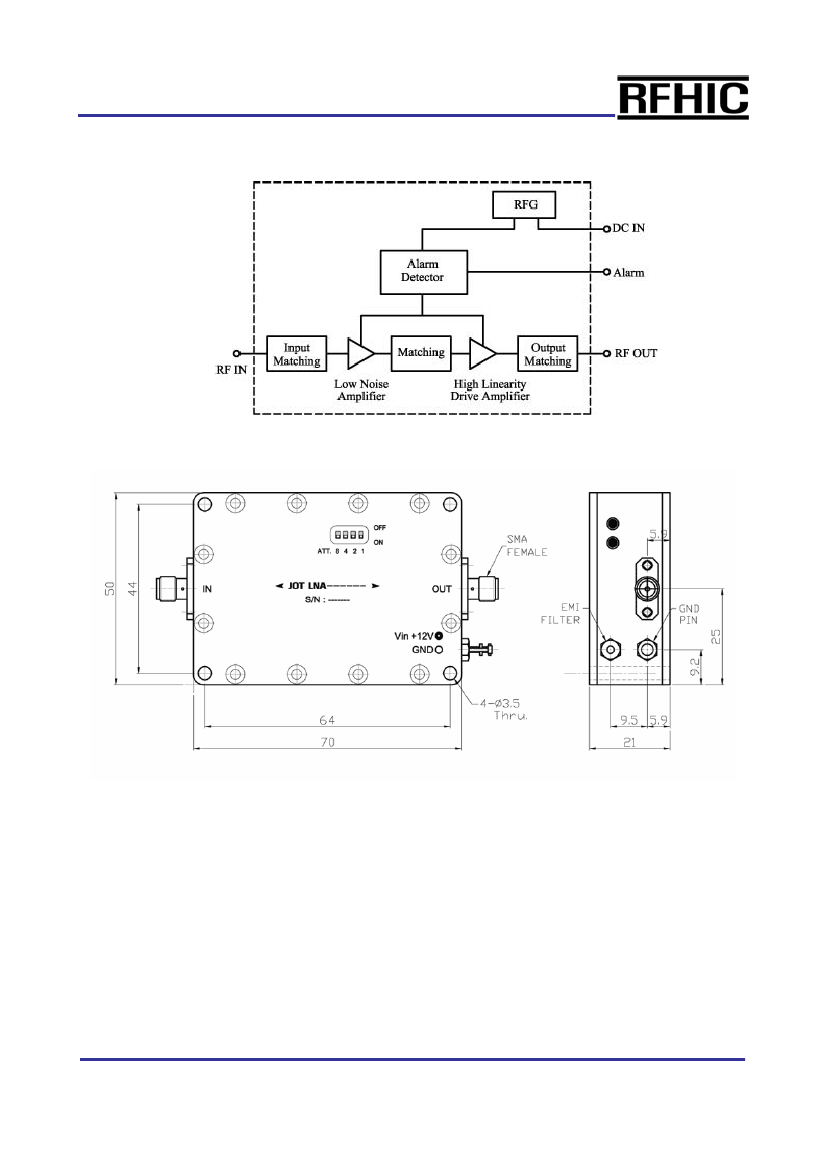

Case Dimension

1.2dB

37dBm

450mA

8~12V

35dB ± 0.5dB

0.5dB

1.3 : 1

(Operating Temperature:-30°C~+70°C)

RFL-2635D

2500~2700MHz

20MHz

RFL-3535D

3400~3600MHz

35dB ± 0.5dB

1.6dB

37dBm

500mA

Normal : Open, Fail : GND ( Open Collector )

-30℃ ~ +70℃

SMA - Female

52 × 46 × 19 [mm]

▪

Tel : 82-31-250-5011

▪

rfsales@rfhic.com

▪

All specifications may change without notice.

▪

Version 5.2
