52270-2017: DescriptionCard Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator; CategoryThe connector The connector; File Size152KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52270-2017 Overview

Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator

52270-2017 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body width	0.118 inch
subject depth	0.169 inch
body length	1.035 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BEIGE
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

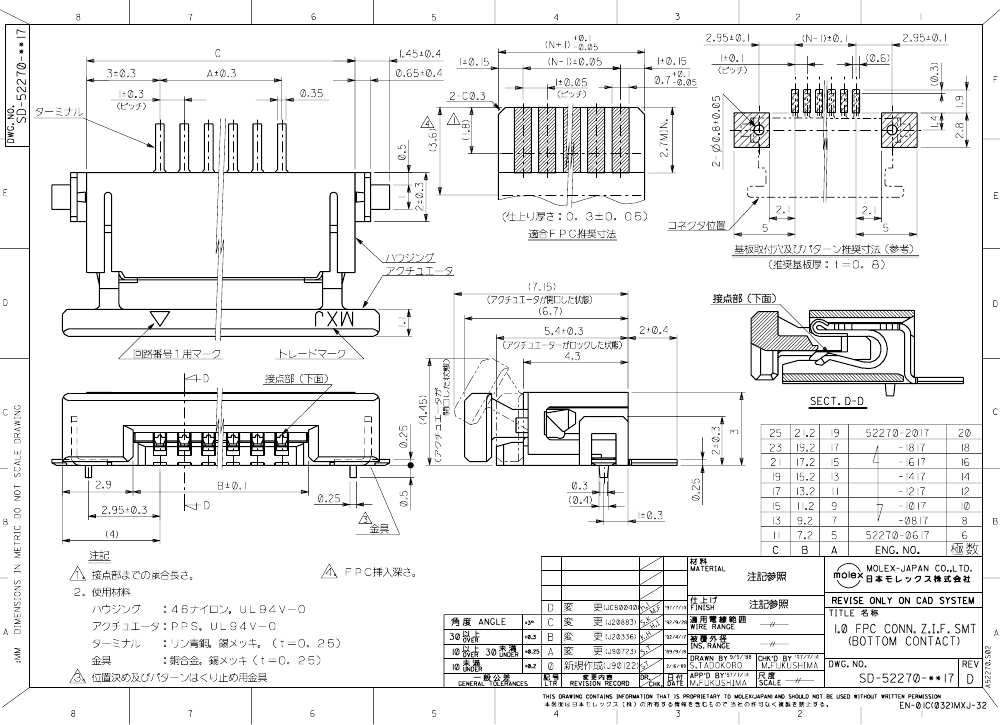

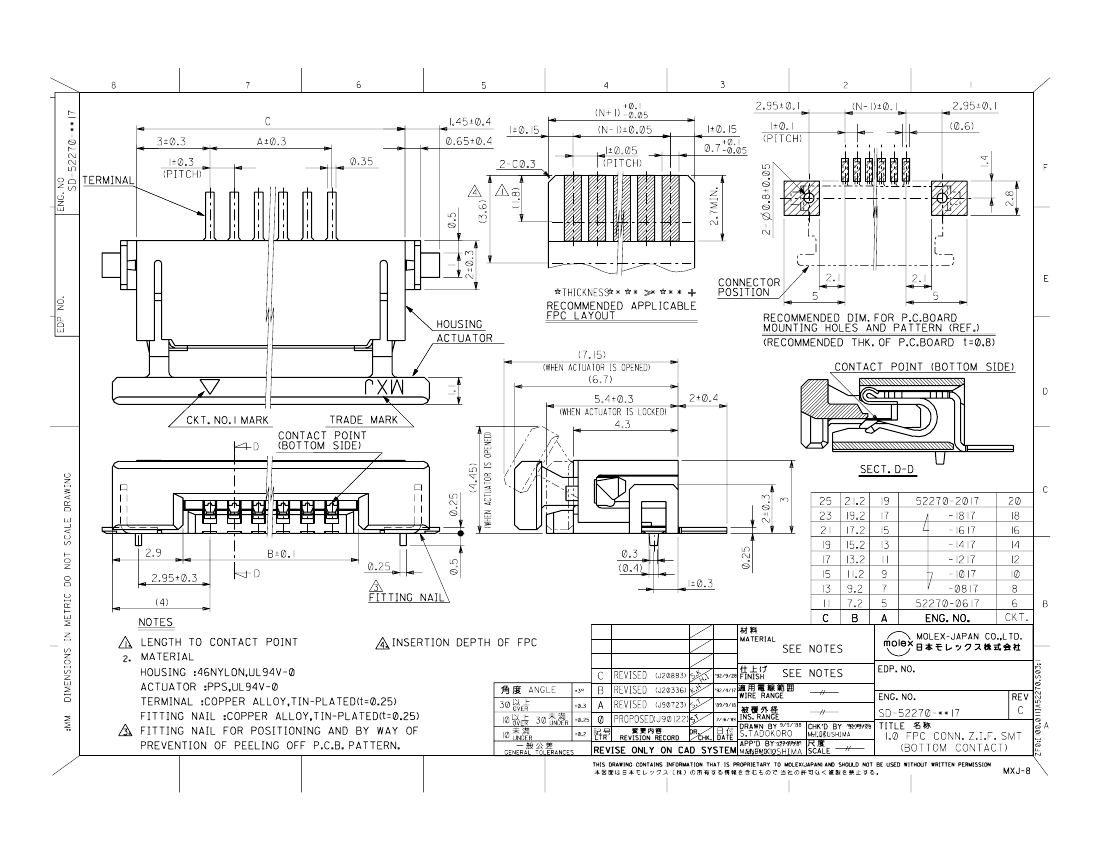

Preview

Download Datasheet

View All

52270-2017 Related Products

	52270-2017	52270-1817	52270-0617	52270-0817	52270-1017	52270-1217	52270-1617	52270-1417
Description	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator	Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
subject depth	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch	0.169 inch
body length	1.035 inch	0.957 inch	0.484 inch	0.563 inch	0.642 inch	0.72 inch	0.878 inch	0.799 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN	NOT SPECIFIED	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	18	6	8	10	12	16	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Contact completed and terminated	TIN	-	TIN	TIN	TIN	TIN	TIN	TIN
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3
Base Number Matches	1	1	1	1	1	1	1	-
