AIK-1001G datasheet, PDF - EEWORLD Datasheet

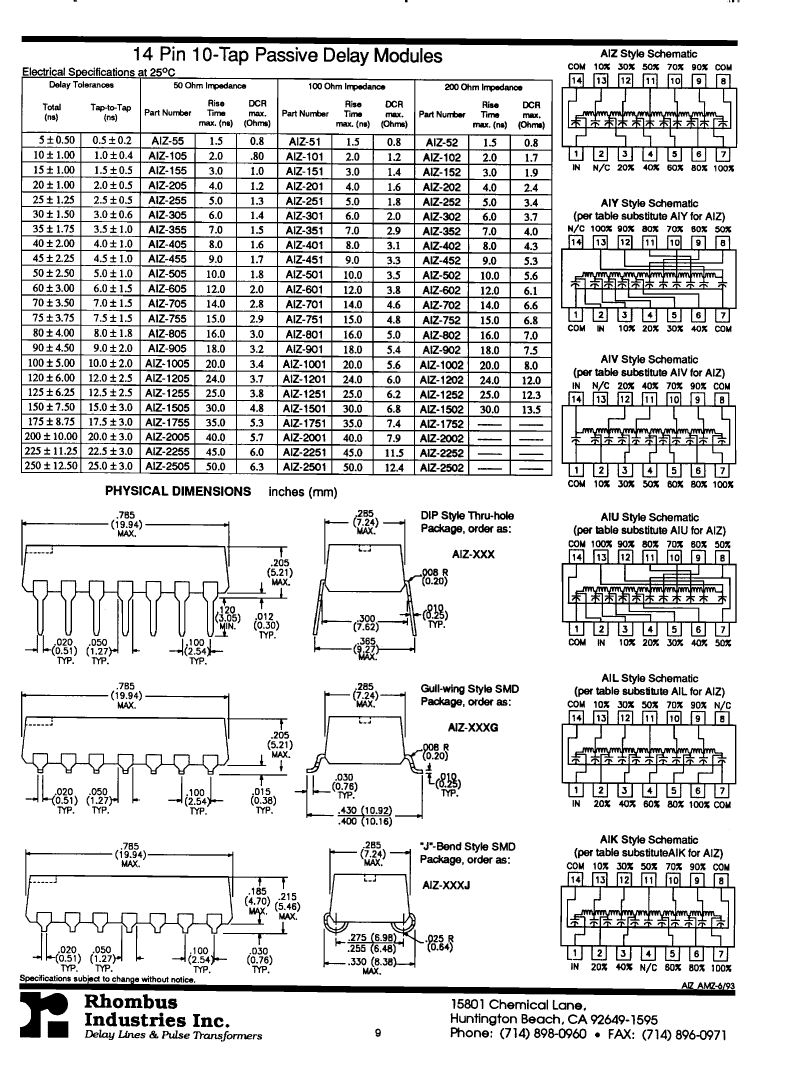

AIK-1001G: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, PDSO14, GULLWING, MODULE, SMD-14; Categorylogic logic; File Size81KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

AIK-1001G Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, PDSO14, GULLWING, MODULE, SMD-14

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Parts packaging code	SOIC
package instruction	GULLWING, MODULE, SMD-14
Contacts	14
Reach Compliance Code	unknown
Other features	MAX WORKING VOLTAGE 25VDC; MIN. DIELECTRIC STRENGTH 100VDC; IMPEDANCE TOL. 5%
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	100 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	5.21 mm
surface mount	YES
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	100 ns
Base Number Matches	1
