LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
SURFACE MOUNT LED TAPE AND REEL
Pb
Lead-Free Parts
LURF9553S/TR1
DATA SHEET
DOC. NO
REV.
DATE
:
:
QW0905-LURF9553S/TR1
A
: 23 - Apr. - 2007
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LURF9553S/TR1
Page 1/7

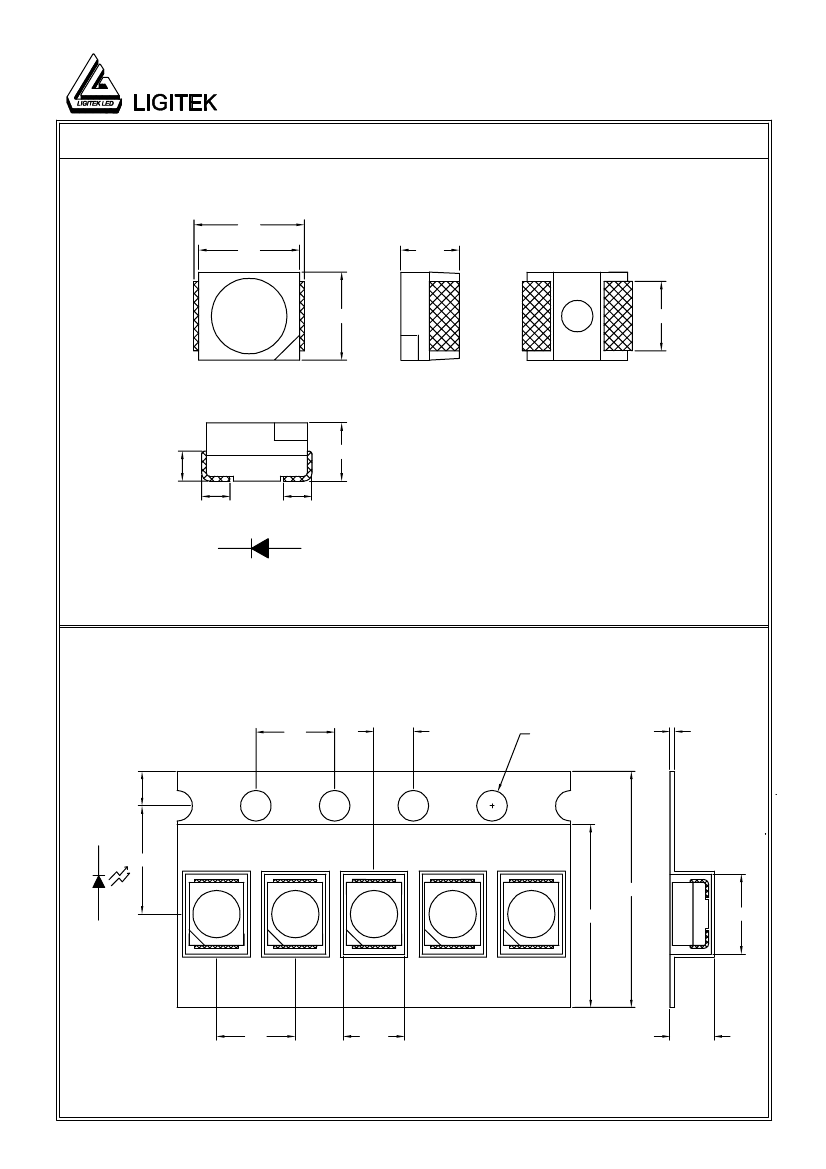

Package Dimensions
3.5
3.2
1.85
2.8
2.2
1.85
0.95
0.9
0.9
-
+
Note : 1.All dimension are in millimeter tolerance is
±
0.2mm unless otherwise noted.
2.Specifications are subject to change without notice.
Carrier Type Dimensions
4.0
2.0
1.55
0.23
1.75
5.5
12.0±0.3
9.3
Polarity
4.06
4.0
3.12
2.24
Note : The tolerances unless mentioned is
±
0.2mm,Angle
±
0.5. Unit=mm.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LURF9553S/TR1
Page 2/7
Reel Dimensions
16.0
±
1.0
ψ
178
±
2.0
14.2
±
1.0
74.0
±
1.5
Part No.
LURF9553S/TR1
Description
12.0mm tape,7"reel
Quantity/Reel
1500 devices
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LURF9553S/TR1
Page 2/5
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
URF(S)
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Electrostatic Discharge( * )
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
ESD
T
opr
Tstg
50
90
120
10
2000
-40 ~ +85
-40 ~ +100
mA
mA
mW
UNIT
μ
A
V
℃
℃
Static Electricity or power surge will
the
Use of
anti-electrosatic
*
glove is recommended when handingdamageLED.LED.devices, a conductive wrist band or must be properly
these
All
equipment and machinery
grounded.
Typical Electrical & Optical Characteristics (Ta=25
℃
)
COLOR
PART NO
MATERIAL
Emitted
LURF9553S/TR1
Forward
Dominant
Spectral
voltage
wave
halfwidth
length
△λ
nm
@20mA(V)
λ
Dnm
Viewing
angle
@20mA(mcd)
2
θ
1/2
(deg)
Luminous
intensity
Lens
Water Clear
Min. Max. Min. Typ.
625
20
1.7
2.6
500
800
120
AlGaInP
Red
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LURF9553S/TR1
Page 3/5
Typical Electro-Optical Characteristics Curve
URFS CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Luminous Intensity vs. Forward Current
Forward Current(mA)
150
6.0
Luminous Intensity
Normalize @20mA
5.0
4.0
3.0
2.0
1.0
0.0
0
50
100
150
100
50
0
0
0.5
1.0
1.5
2.0
2.5
3.0
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
Forward Current(mA)
Fig.4 Luminous Intensity vs. Temperature
Luminous Intensity@20mA
Normalize @25
℃
Forward Voltage@20mA
Normalize @25
℃
1.06
1.04
1.02
1.00
0.98
0.96
0.94
-40
-20
0
20
40
60
80
100
1.2
1.0
0.8
0.6
0.4
0.2
0.0
-40
-20
0
20
40
60
80
100
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Relative Intensity@20mA
1.0
0.5
0
550
600
650
700
Wavelength (nm)
