SQUARE WITH 4LEADS TYPE LED LAMPS
Pb
Lead-Free Parts
LUY9653H-50A
DATA SHEET
DOC. NO :
REV.
DATE
:
:
QW0905-LUY9653H-50A
B
22 - May - 2006
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUY9653H-50A
Page 1/5

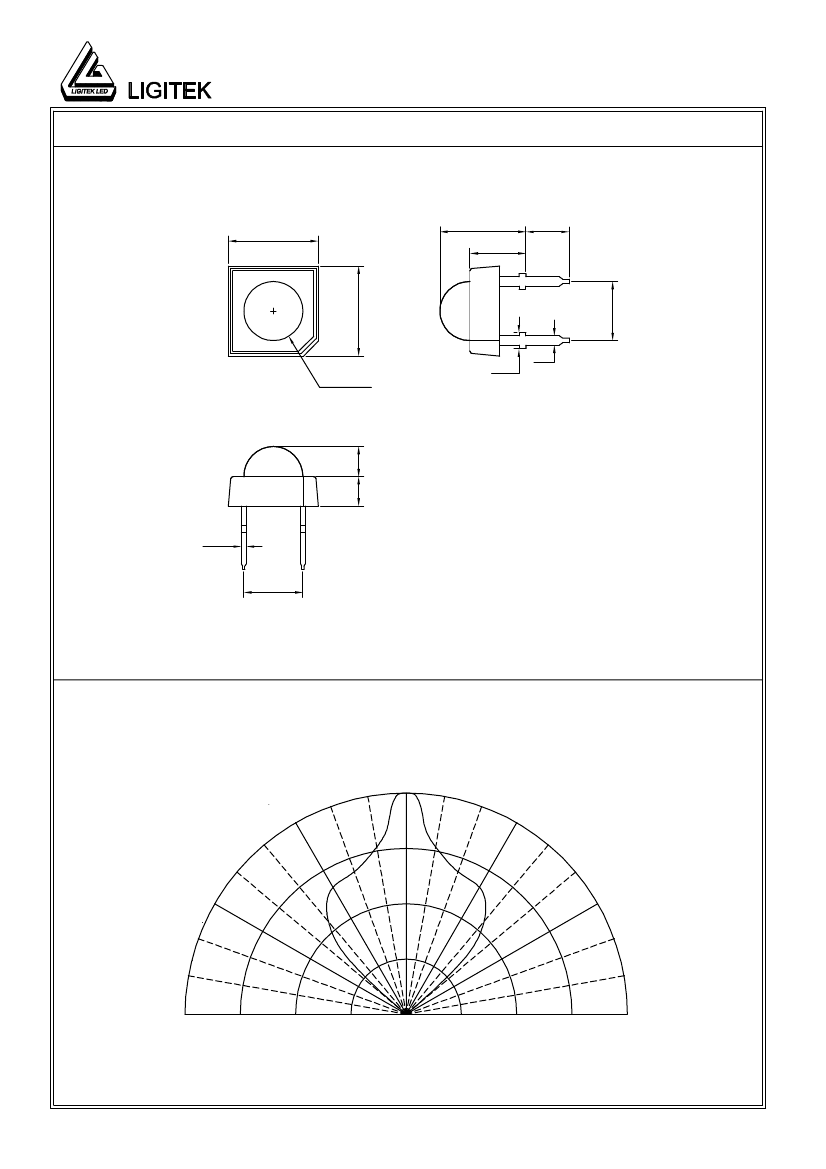

Package Dimensions
7.62
±
0.5
7.35
4.8
3.5±0.5
ANODE
7.62
±
0.5
5.08±0.3
CATHODE
ψ
5.0
1.55
0.8
2.55
2.5
0.4
5.08
±
0.3
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
Directivity Radiation
0
°
-30
°
30
°
-60
°
60
°
100% 75% 50%
25%
0
25%
50% 75% 100%
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUY9653H-50A
Page 2/5
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
UY(H)
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Electrostatic Discharge( * )
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
ESD
T
opr
Tstg
70
100
130
10
2000
-40 ~ +85
-40 ~ +100
mA
mA
mW
UNIT
μ
A
V
℃
℃
Static Electricity or power surge will
the
Use of
anti-electrosatic
*
glove is recommended when handingdamageLED.LED.devices, a conductive wrist band or must be properly
these
All
equipment and machinery
grounded.
Typical Electrical & Optical Characteristics (Ta=25
℃
)
COLOR
PART NO
MATERIAL
Emitted
LUY9653H-50A
AlGaInP/GaP
Yellow
Forward
Dominant
Spectral
voltage
wave
halfwidth
length
△λ
nm
@20mA(V)
λ
Dnm
Luminous
intensity
@20mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Lens
Water Clear
Min. Max. Min. Typ.
590
20
1.7
2.6
550 1100
85
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUY9653H-50A
Page 3/5
Typical Electro-Optical Characteristics Curve
UY(H) CHIP
Fig.1 Forward Current vs. Forward Voltage
1000
Fig.2 Relative Intensity vs. Forward Current
3.0
Forward Current(mA)
100
10
1.0
Relative Intensity
Normalize @20mA
1.0
2.0
3.0
4.0
5.0
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
0.1
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
1.2
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
Forward Voltage@20mA
Normalize @25
℃
Relative Intensity@20mA
Normalize @25
℃
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
1.1
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Relative Intensity@20mA
1.0
0.5
0.0
500
550
600
650
Wavelength (nm)
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LUY9653H-50A
Page 4/5
Soldering Condition(Pb-Free)
1.Iron:
Soldering Iron:30W Max
Temperature 350°C Max
Soldering Time:3 Seconds Max(One Time)
Distance:2mm Min(From solder joint to body)
2.Wave Soldering Profile
Dip Soldering
Preheat: 120° C Max
Preheat time: 60seconds Max
Ramp-up
2°C/sec(max)
Ramp-Down:-5°C/sec(max)
Solder Bath:260° C Max
Dipping Time:3 seconds Max
Distance:2mm Min(From solder joint to body)
Temp(° C)
260°C3sec Max
260°
5° /sec
max
120°
2° /sec
max
Preheat
60 Seconds Max
25°
0° 0
50
100
150
Time(sec)
