3134-180P Rev.C

3134-180P

180W PSM - PLUG AND PLAY

- For S-Band Pulsed Radar Application

180 Watts - 100µs, 10%, 36V

S-Band Pulsed Radar 3100 - 3400 MHz

•

Easy To Use – 50

Ω

Plug-and-Play

Reduce Design Cycle Time

Improve System Performance

Reduce System Size and Components

GENERAL DESCRIPTION

The 3134-180P is a 50 ohm matched Power Solution Module (PSM), consists of two common base

high power transistors, for S-Band pulsed Radar application. This PSM is capable of providing 180

Watts of pulsed RF output power at one hundred microsecond pulse width ten percent duty factor

across the band 3100-3400 MHz. This PSM is designed with plug-and-play concept which is

extremely user friendly and requires no additional tuning and impedance matching from the customer.

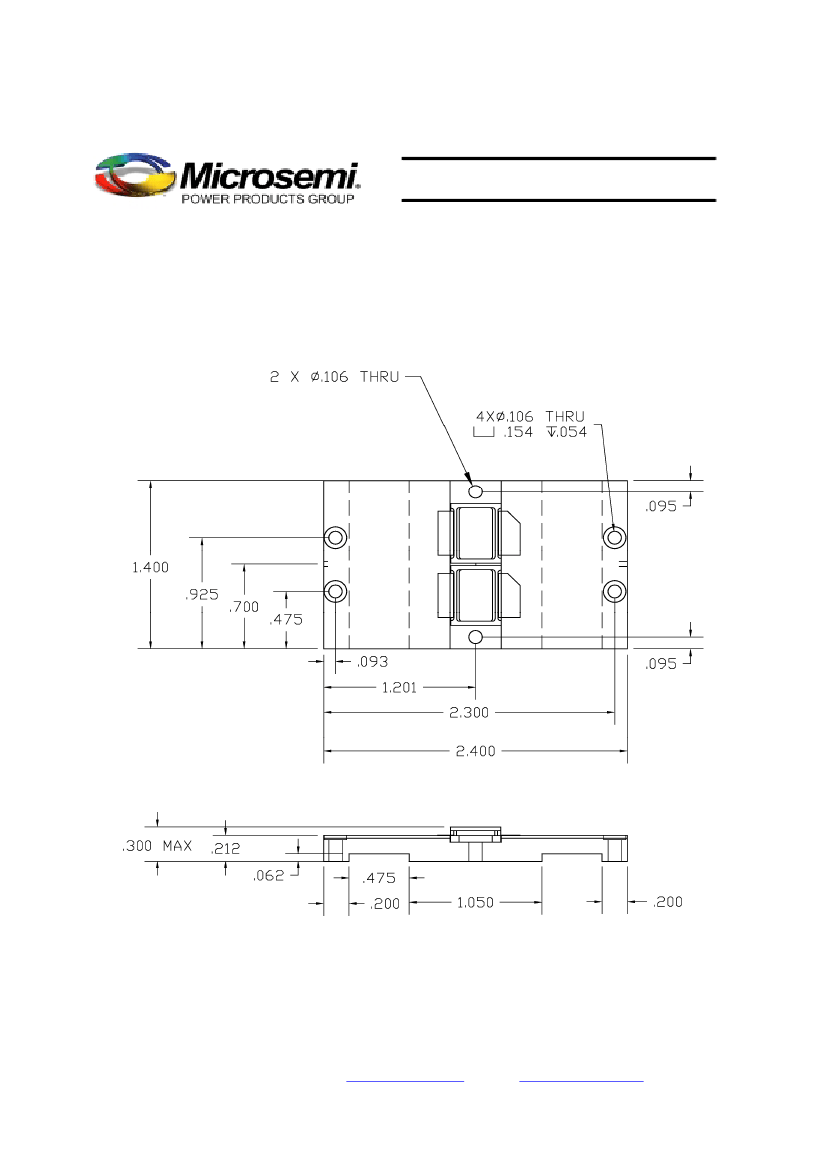

Mechanical Size is 2.4” x 1.4” x 0.21”

ELECTRICAL CHARACTERISTICS @ 25

C, Pulse Width=100us, 10%

Symbol

ηc

Droop

R/L

VSWR-T

Өjc

Characteristics

Input Power

Power Gain

Collector Efficiency

Pulse Droop

Input Return Loss

Load Mismatch Tolerance

Thermal Resistance

Test Conditions

Vcc=36V, Pout=180W, Freq=3.1 to 3.4 GHz

Pulse Width=100uS, Duty=10%

Min

22.5

8.0

-8

2.0:1

0.30

Typ

25.5

8.5

0.2

Max

28.5

9.0

0.6

Units

°C/W

Typical Test Data:

Frequency

3100 MHz

3200 MHz

3300 MHz

3400 MHz

Pout (W)

180

Pin (W)

26.6

25.1

26.6

Ic (A)

1.13

1.11

1.13

1.10

RL (dB)

-10

-16

-20

-15

Nc (%)

G (dB)

8.3

8.6

8.3

Microsemi reserves the right to change, without notice, the specifications and information contained herein. To verify the

current version please check our website at

www.microsemi.com,

email to

psm@microsemi.com,

or contact our factory

direct. Microsemi PPGR 3295 Scott Blvd, Suite 150, Santa Clara, CA 95054 Tel. 408-986-8031
