DRS-16RAS datasheet, PDF - EEWORLD Datasheet

DRS-16RAS: DescriptionROTARY SWITCH,RIGHT ANGLE,HEX,ON-ON,16,SURFACE MOUNT TERMINAL,ROTARY SHAFT; CategoryMechanical and electronic products switch; File Size687KB，7 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

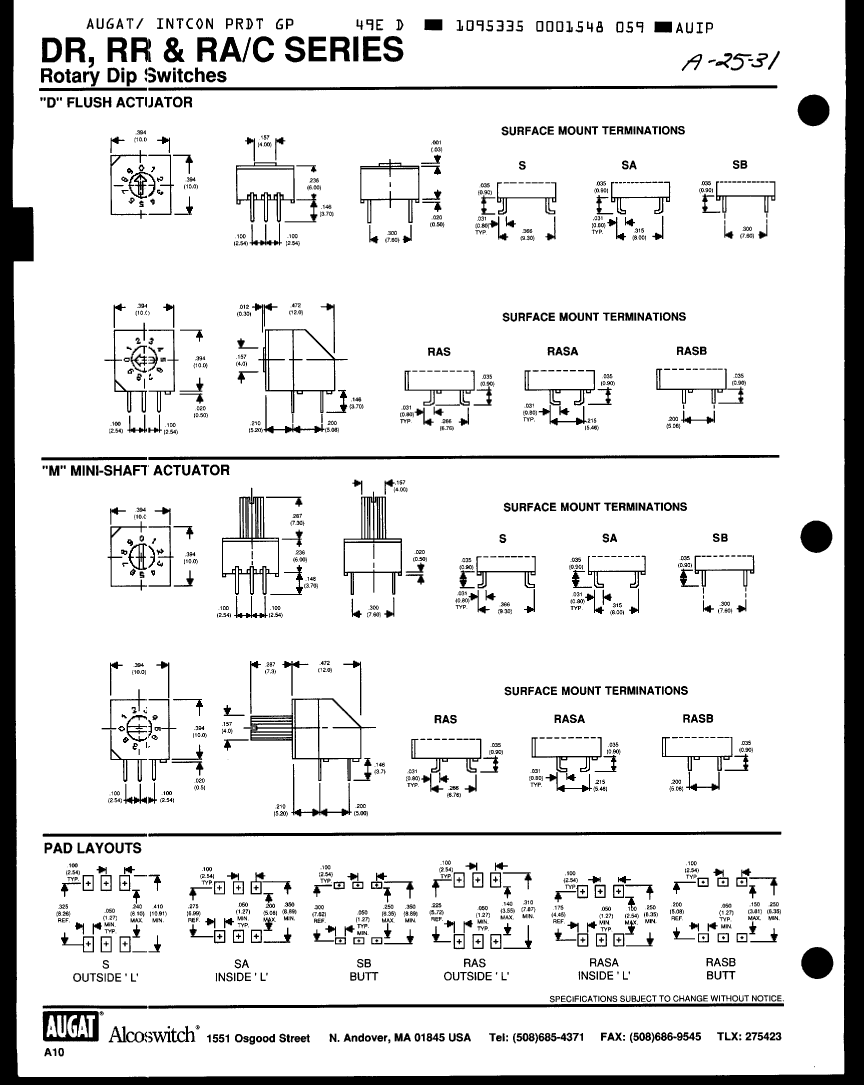

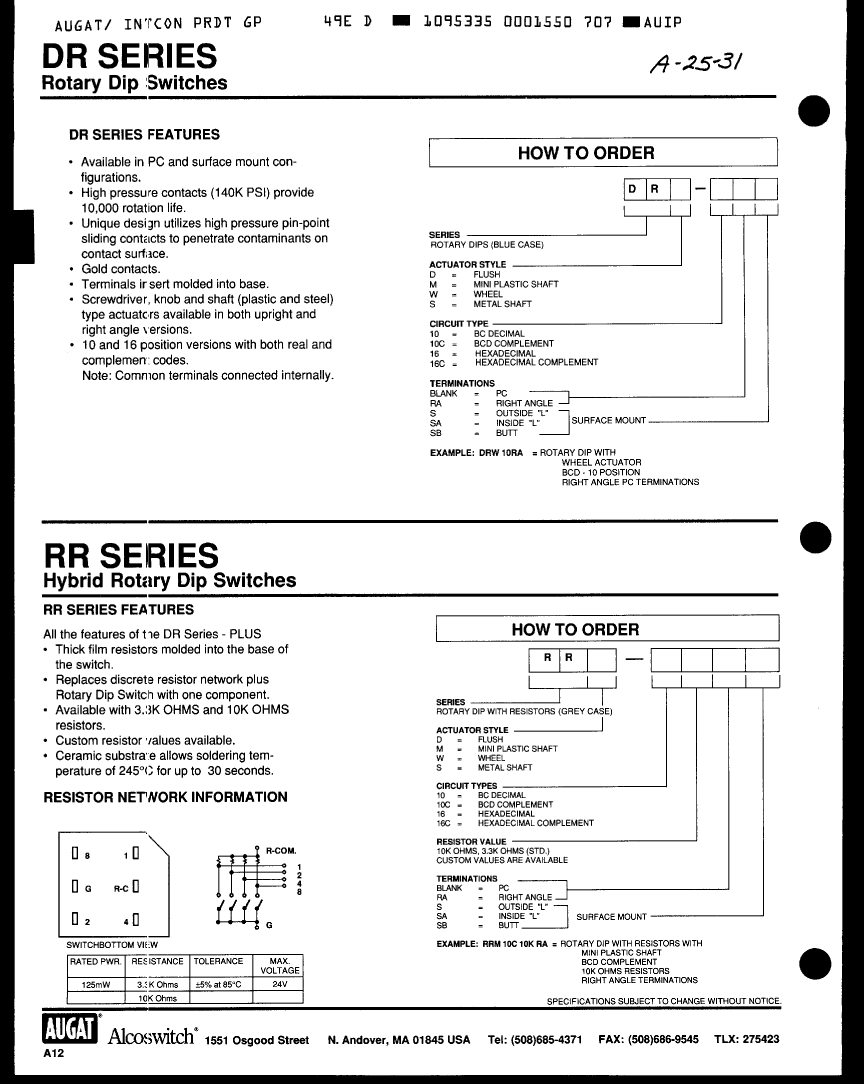

DRS-16RAS Overview

ROTARY SWITCH,RIGHT ANGLE,HEX,ON-ON,16,SURFACE MOUNT TERMINAL,ROTARY SHAFT

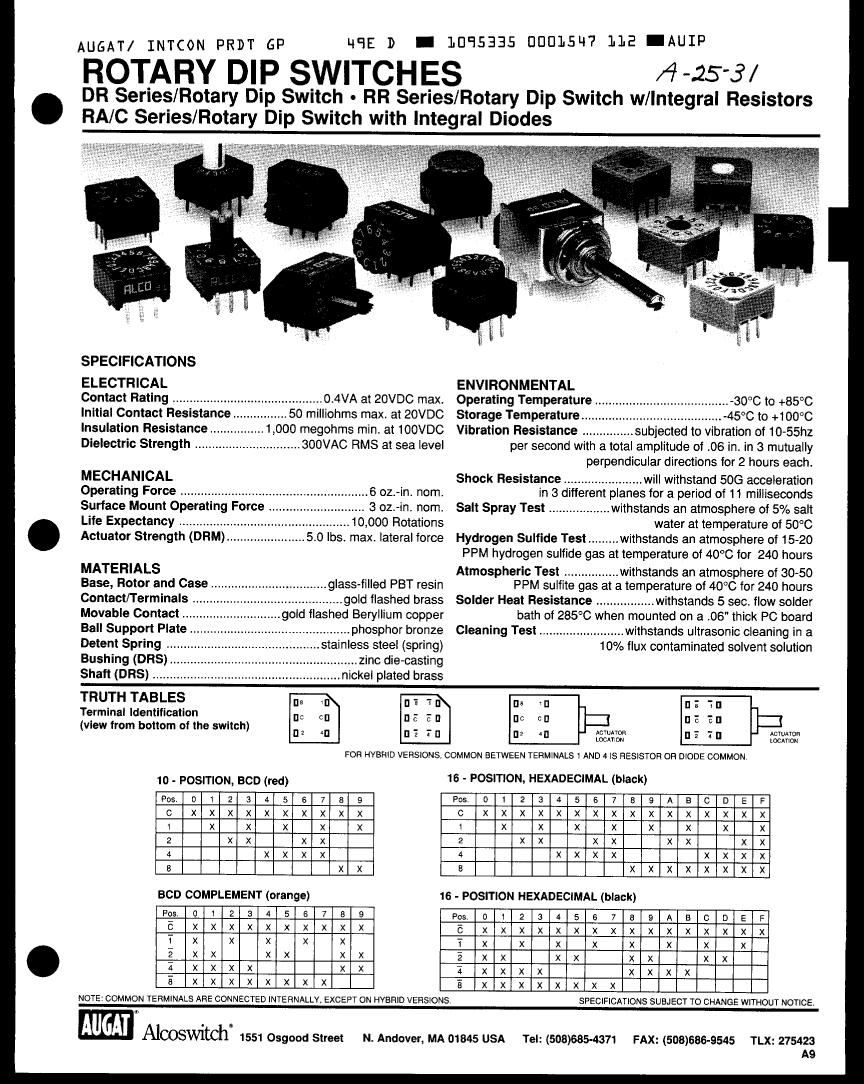

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown

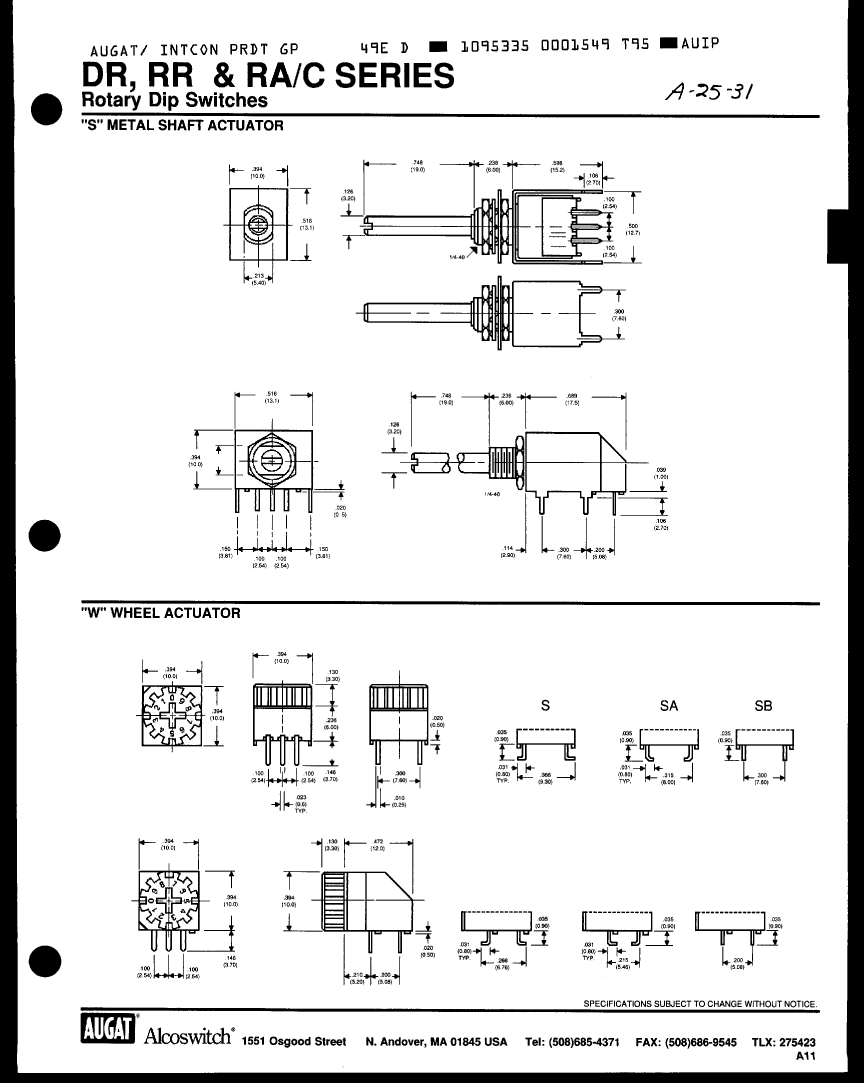

Actuator length	0.748 inch
Actuator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Actuator type	ROTARY SHAFT
Other features	METAL SHAFT
body width	10.5156 mm
Body color	BLUE
body height	17.5006 mm
Body length or diameter	13.1064 mm
Nozzle length	0.236 inch
Casing type	1/4-40
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact function	ON-ON
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Dielectric withstand voltage	300VRMS V
Electrical life	10000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Graduation angle	22.5 deg
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DR
Installation features	SURFACE MOUNT-RIGHT ANGLE
Number of positions	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	CIRCULAR
switch function	HEXADECIMAL
Switch type	ROTARY CODED SWITCH
Terminal material	BRASS
Termination type	SOLDER

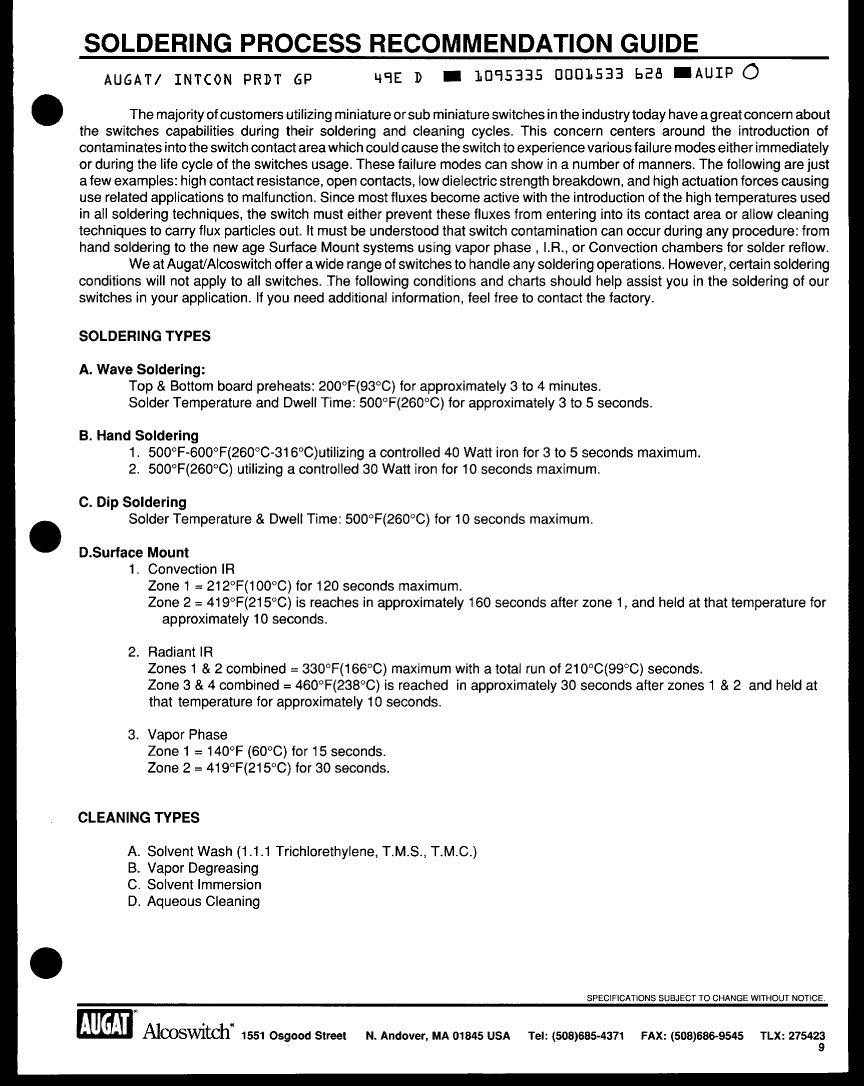

Washability	ULTRASONIC
Base Number Matches	1
