TDC10-500-R: DescriptionElectric Fuse, Fast Blow, 0.5A, 750VAC, 5A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size353KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

TDC10-500-R Overview

Electric Fuse, Fast Blow, 0.5A, 750VAC, 5A (IR), Inline/holder, ROHS COMPLIANT

TDC10-500-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	FAST
body height	31.8 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	6.35mm x 31.8mm
Rated breaking capacity	5 A
Rated current	0.5 A
Rated voltage (AC)	750 V
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

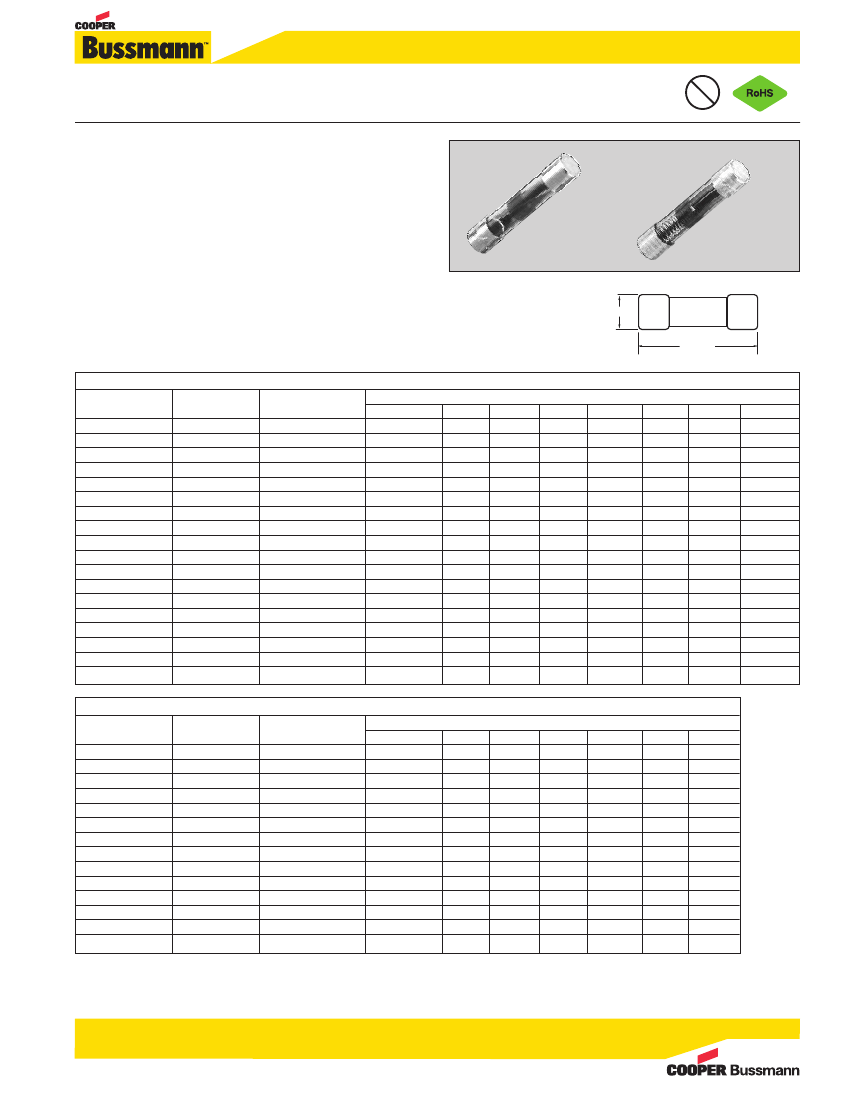

1

⁄

4

” x 1

1

⁄

4

” Glass Tube Fuses

TDC10 Series (Fast-Acting) & TDC11 Series (Time-Delay)

Description

• TDC10 Series fast-acting

• TDC11 Series time-delay

• Lead free and RoHS compliant

•

1

⁄

4

" x 1

1

⁄

4

" physical size

• Glass tube, electroplated brass endcap construction

• Interrupting rating equals 10 times rated current

• TDC10 Series designed to British Standard BS2950A

Ordering

Specify part number and product code prefix,

e.g.: BK/TDC10-20-R

Pb

Drawing Not to Scale

Dimensions - mm

6.35

31.8

Part

Number

TDC10-50-R

TDC10-60-R

TDC10-100-R

TDC10-150-R

TDC10-250-R

TDC10-500-R

TDC10-750-R

TDC10-1-R

TDC10-1.5-R

TDC10-2-R

TDC10-3-R

TDC10-5-R

TDC10-7-R

TDC10-10-R

TDC10-12-R

TDC10-15-R

TDC10-20-R

TDC10-25-R

Amps

50mA

60mA

100mA

150mA

250mA

500mA

750mA

1

1.5

2

3

5

7

10

12

15

20

25

F

AST

-A

CTING

Voltage Rating

(Vac)

1000

750

500

350

250

150

100

32

TDC10 S

ERIES

S

PECIFICATIONS

Interrupting Rating (amps @ rated voltage) *

1000V

750V

500V

350V

250V

150V

100V

500mA

—

600mA

—

1

—

1.5

—

2.5

—

5

—

7.5

—

10

—

15

—

20

—

30

—

50

—

70

—

100

—

32V

—

120

150

200

250

Part

Number

TDC11-50-R

TDC11-60-R

TDC11-100-R

TDC11-150-R

TDC11-250-R

TDC11-500-R

TDC11-750-R

TDC11-1-R

TDC11-1.5-R

TDC11-2-R

TDC11-3-R

TDC11-5-R

TDC11-7-R

TDC11-10-R

Amps

50mA

60mA

100mA

150mA

250mA

500mA

750mA

1

1.5

2

3

5

7

10

T

IME

-D

ELAY

TDC11 S

ERIES

S

PECIFICATIONS

Voltage Rating

Interrupting Rating (amps @ rated voltage) *

(Vac)

1000V

750V

500V

350V

250V

150V

100V

1000

500mA

—

1000

600mA

—

1000

1

—

1000

1.5

—

1000

2.5

—

750

—

5

—

500

—

7.5

—

350

—

10

—

250

—

15

—

250

—

20

—

250

—

30

—

250

—

50

—

150

—

70

—

100

—

100

* Interrupting Rating: Interrupting rating is 10 times the rated current.

** DC Cold Resistance (Measured at <10% of rated current)

0313

BU?SB13328

Page 1 of 2

Data Sheet OC?2602
