BK1/TDC10-750-R: DescriptionElectric Fuse, Fast Blow, 0.75A, 500VAC, 7.5A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size244KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

BK1/TDC10-750-R Overview

Electric Fuse, Fast Blow, 0.75A, 500VAC, 7.5A (IR), Inline/holder, ROHS COMPLIANT

BK1/TDC10-750-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Fusing characteristics	FAST
body height	31.8 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	6.35mm x 31.8mm
Rated breaking capacity	7.5 A
Rated current	0.75 A
Rated voltage (AC)	500 V
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

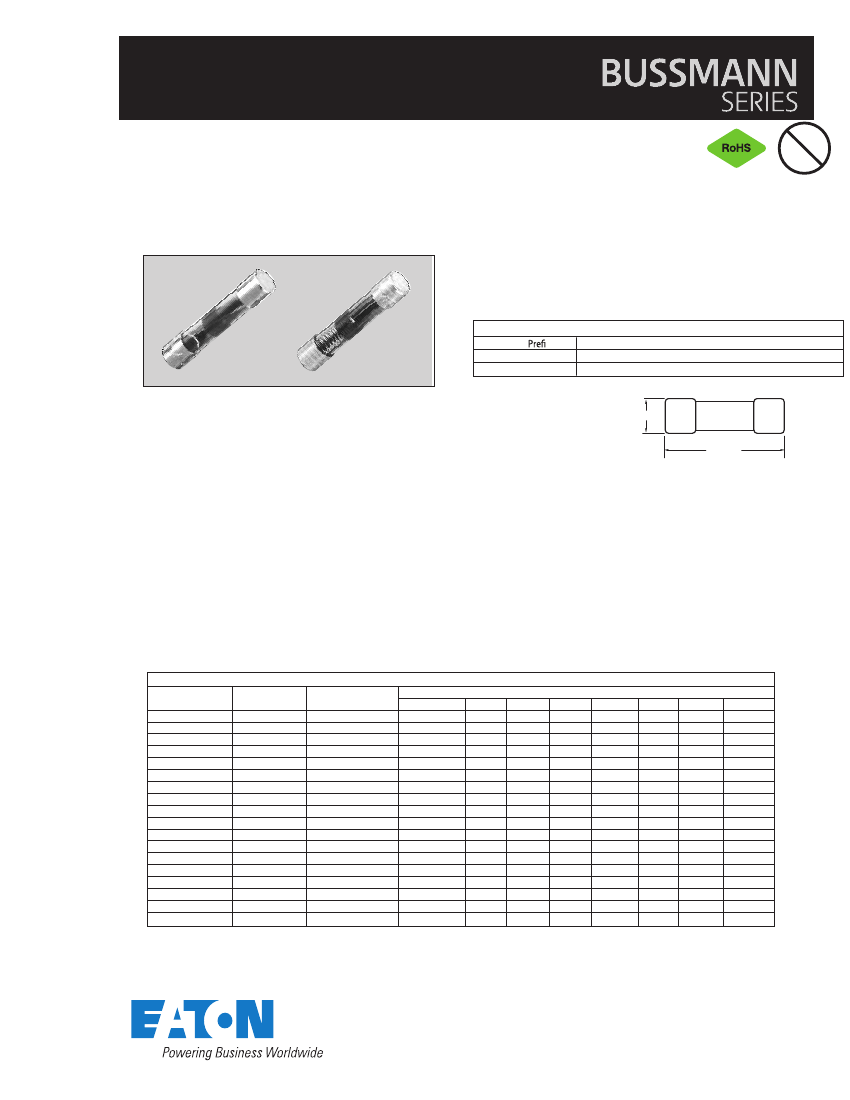

Technical Data

2602

Effective

June

2017

Supersedes

March

2013

TDC10 and TDC11

Pb

1/4" x 1 1/4" (TDC10) fast-acting (TDC11) time delay

glass tube

fuses

Ordering information

•

Specify part number and product code prefix,

•

e.g.: BK/TDC10-20-R

Packaging Code

Packaging

BK

BK1

x

Description

100 fuses packed into a cardboard carton

1000 fuses packed into a cardboard carton

Product features

TDC10 fast-acting

TDC11 time-delay

Lead free and RoHS compliant

1⁄4" x 1 1⁄4" physical size

Glass tube, electroplated brass endcap

construction

•

Interrupting rating equals 10 times rated current

•

TDC10 Series designed to British Standard

BS2950A

•

Drawing Not to Scale

Dimensions - mm

6.35

31.8

Part

Number

TDC10-50-R

TDC10-60-R

TDC10-100-R

TDC10-150-R

TDC10-250-R

TDC10-500-R

TDC10-750-R

TDC10-1-R

TDC10-1.5-R

TDC10-2-R

TDC10-3-R

TDC10-5-R

TDC10-7-R

TDC10-10-R

TDC10-12-R

TDC10-15-R

TDC10-20-R

TDC10-25-R

Amps

50mA

60mA

100mA

150mA

250mA

500mA

750mA

1

1.5

2

3

5

7

10

12

15

20

25

F

AST

-A

CTING

Voltage Rating

(Vac)

1000

750

500

350

250

150

100

32

TDC10 S

PECIFICATIONS

Interrupting Rating (amps @ rated voltage) *

1000V

750V

500V

350V

250V

150V

500mA

—

600mA

—

1

—

1.5

—

2.5

—

5

—

7.5

—

10

—

15

—

20

—

30

—

50

—

70

—

100V

—

100

—

32V

—

120

150

200

250

* Interrupting Rating: Interrupting rating is 10 times the rated current.
