767165181AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 767165181AP

767165181AP: DescriptionArray/Network Resistor, Terminator, Metal Glaze/thick Film, 2.3W, 179ohm, 50V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2244, ROHS COMPLIANT; CategoryPassive components The resistor; File Size84KB，4 Pages; ManufacturerCTS; Environmental Compliance; Related ProductsFound14parts with similar functions to 767165181AP

Download Datasheet Parametric View All

767165181AP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	767165181AP	-	-	View	Buy Now

767165181AP Overview

Array/Network Resistor, Terminator, Metal Glaze/thick Film, 2.3W, 179ohm, 50V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2244, ROHS COMPLIANT

767165181AP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 2244
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	26 weeks
structure	Rectangul
Component power consumption	0.15 W
The first element resistor	330 Ω
Manufacturer's serial number	767
Installation features	SURFACE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	14
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.16 mm
Package length	11.18 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.59 mm
method of packing	Tube
Rated power dissipation(P)	2.3 W
Rated temperature	25 °C
resistance	179 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	390 Ω
series	767
size code	2244
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Silver/Copper - with Nickel barrie
Terminal shape	GULL WING
Tolerance	2%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

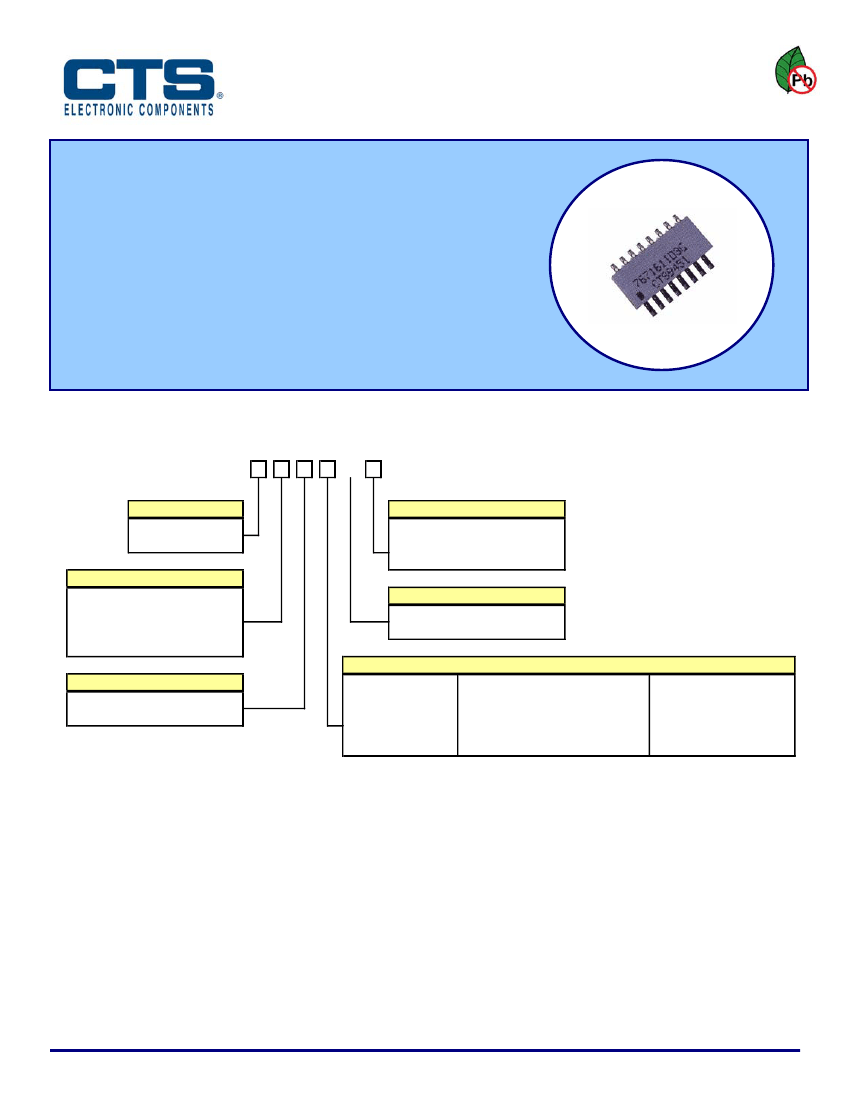

Surface Mount Resistor Network

FEATURES

•

Medium Body Design

Surface Mount Gull Wing Design

Solid Ceramic Construction

No Internal Dendrite Growth

Requires 30% Less Board Space than Molded Products

of the Same Power Rating

Meets EIA PDP SOGN-0001 Outline

Application Specific Circuits are Available

Compatible with Solder Reflow Process

Tape and Reel Packaging or Slide Packs

RoHS Compliant in Accordance with EU Directive 2011/65/EU

- Lead-Free Termination Finish

- Exemption 7(c)-I, Electrical and electronic components containing lead [Pb] in glass

Series 767

ORDERING INFORMATION

767

NUMBER OF PINS

14 = 14 pins

16 = 16 pins

SCHEMATIC

Bussed Circuit

Isolated Circuit

Dual Terminator Circuit

Ladder

RESISTOR CODE

Refer to tables on Page 2.

[Codes are 3 - 4 characters.]

PACKAGING

Blank = Slide Pack

TR13 = Tape & Reel, 13" reel

RoHS COMPLIANT

Lead Finish: SnAgCu over Ni

barrier on Cu lead wire.

TOLERANCE

Schematic 1 & 3

J = ±5%

G = ±2% [Std]

F = ±1%

D = ±1/2%

Schematic 5

Tolerance code is not added for

dual terminator configuration.

Standard tolerance is ±2%.

Schematic 7

F = ±1 LSB

D = ±1/2 LSB

[LSB = Least Significant Bit]

Notes:

1. No dashes or spaces to appear in part number.

2. Example Part Numbers;

Tape & Reel, 767141103GPTR13.

Slide Pack, 767141103GP.

Not all performance combinations and resistor values may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

Document No. 008-0349-0

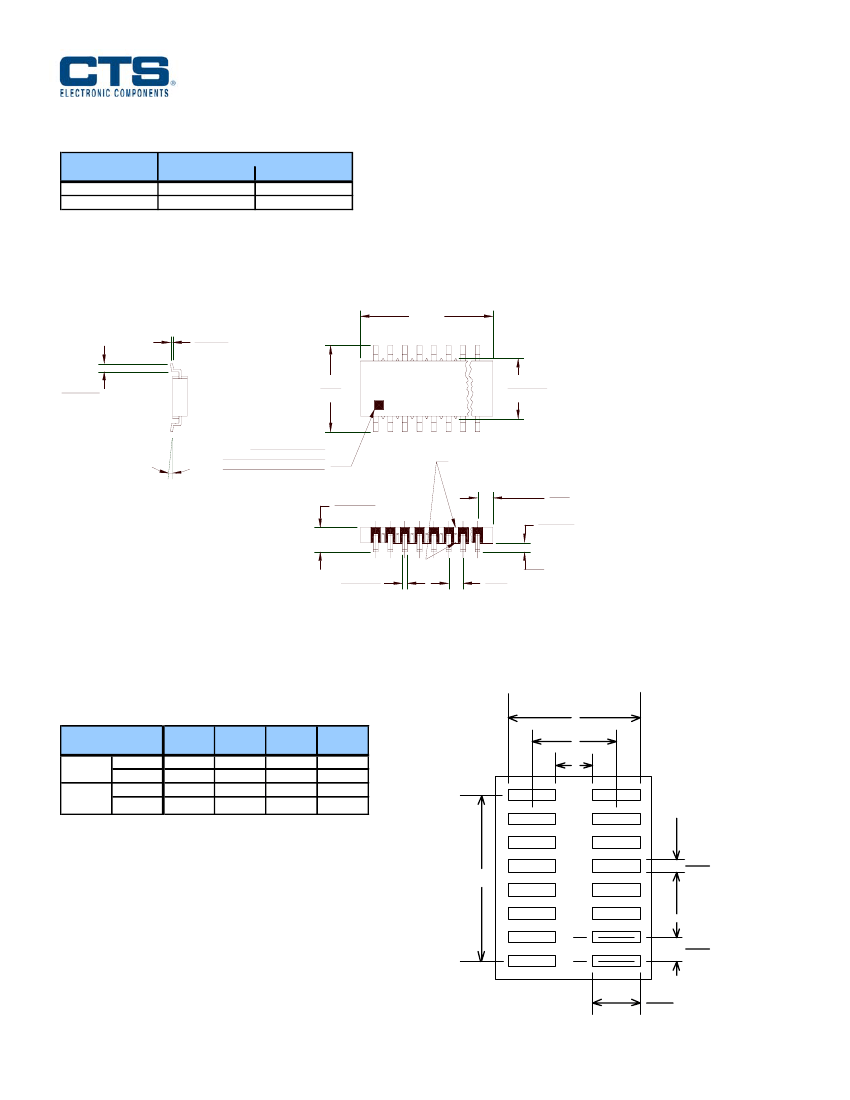

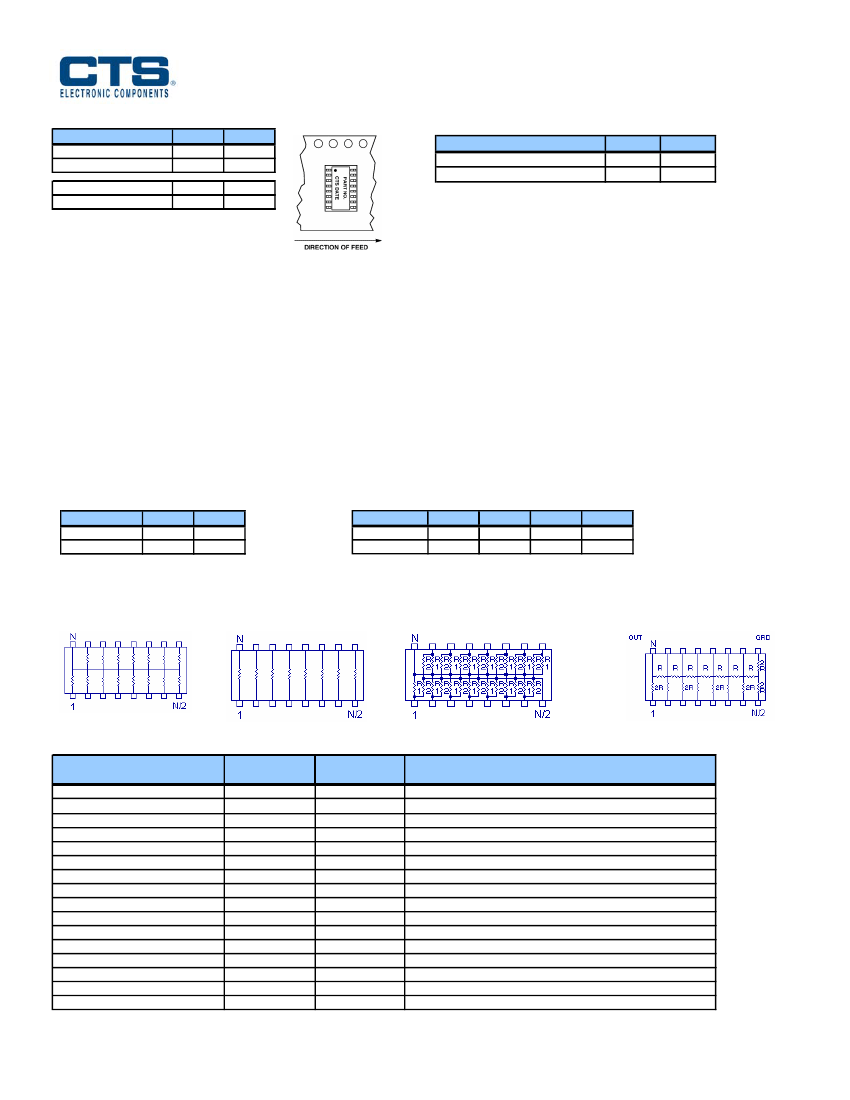

Page 1 - 4

Rev. C

www.ctscorp.com
