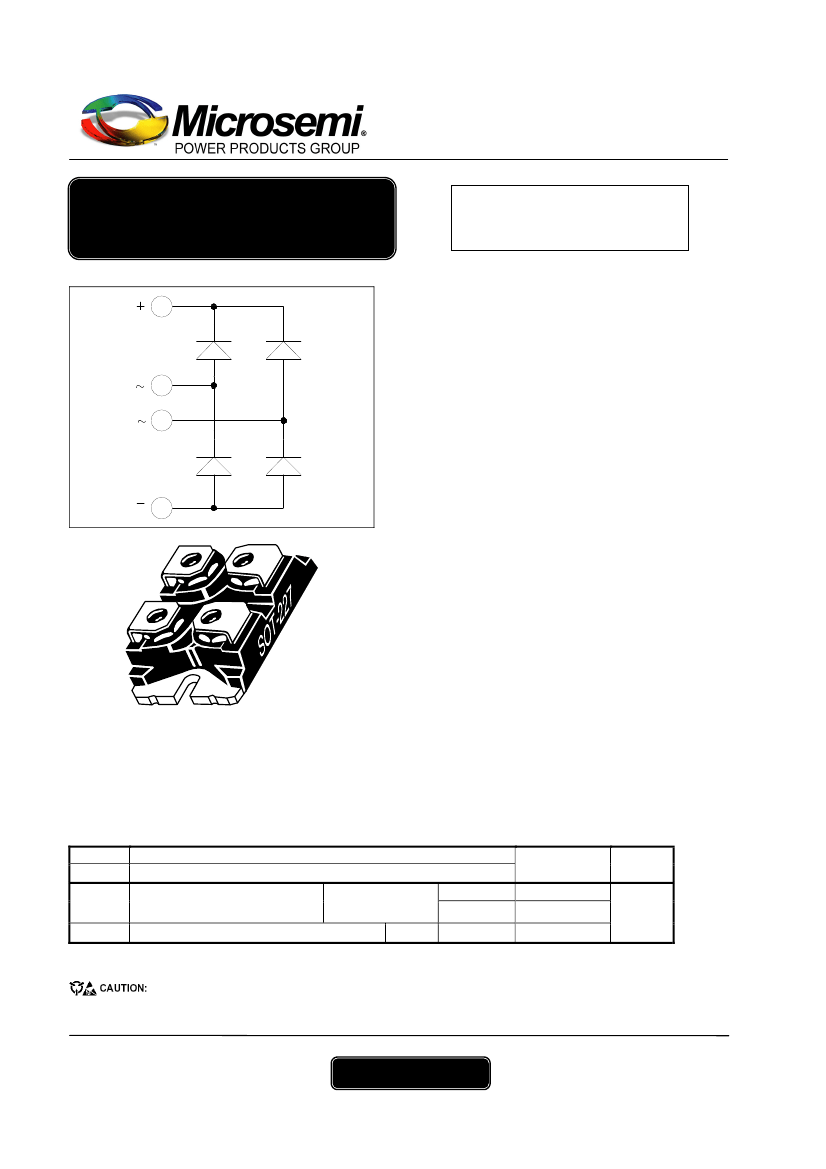

APT30DS20HJ
ISOTOP
®
Schottky Diode
Full Bridge Power Module
Application
Switch mode power supplies rectifier
Induction heating
Welding equipment
V
RRM
= 200V
I
F
= 30A @ Tc = 80°C
Features
Ultra fast recovery times
Soft recovery characteristics
High current
Very low stray inductance
High level of integration
ISOTOP
®
Package (SOT-227)
+
~
-
Benefits
Outstanding performance at high frequency operation
Low losses
Low noise switching
Direct mounting to heatsink (isolated package)
Low junction to case thermal resistance
RoHS Compliant
~
Absolute maximum ratings
Symbol
V
R
V
RRM
I
F(AV)
I
FSM
Parameter
Maximum DC reverse Voltage
Maximum Peak Repetitive Reverse Voltage
Maximum Average Forward
Current
Duty cycle = 50%
8.3ms
T
C
= 25°C
T
C
= 80°C
T
J
= 45°C
Max ratings
200
45
30
320
A
APT30DS20HJ – Rev 1 October, 2012
Unit
V
Non-Repetitive Forward Surge Current
These Devices are sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed. See application note
APT0502 on www.microsemi.com
www.microsemi.com
1-5
APT30DS20HJ

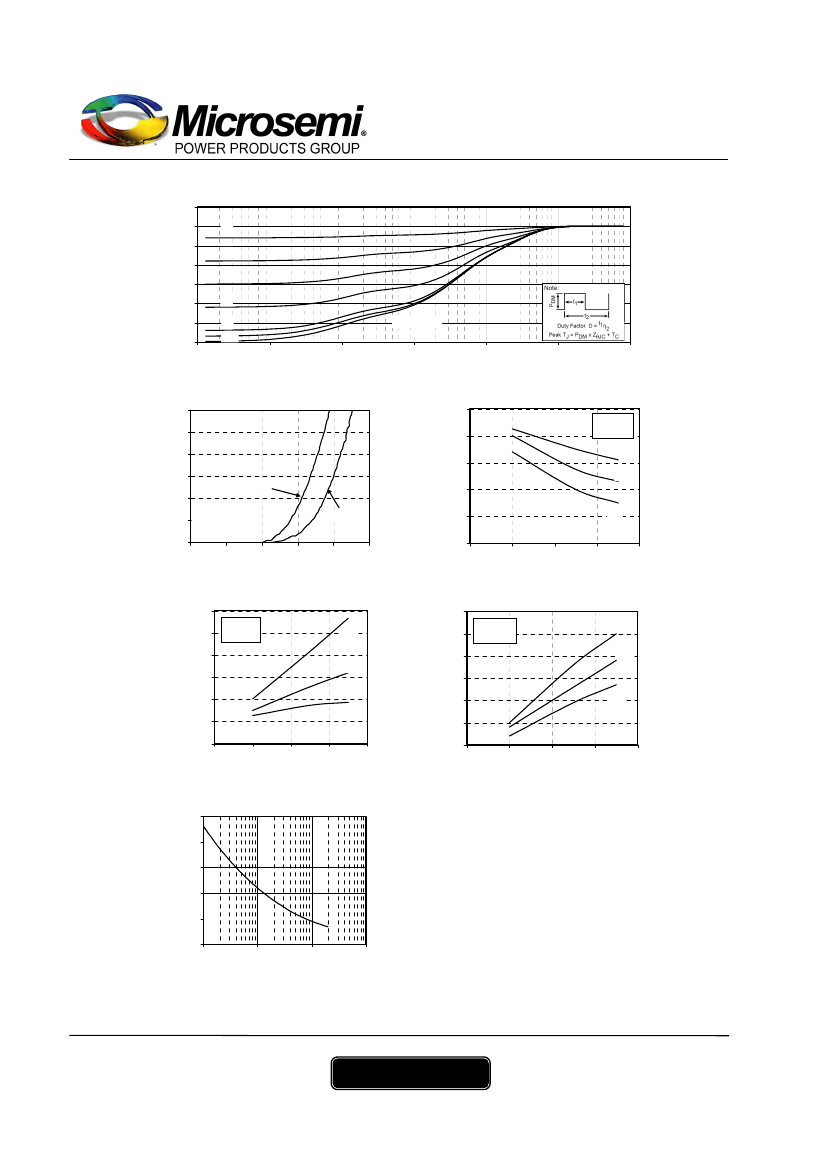

Typical Performance Curve
Maximum Effective Transient Thermal Impedance, Junction to Case vs Pulse Duration
1.4
Thermal Impedance (°C/W)
1.2
1
0.8
0.6
0.4
0.2
0
0.00001
0.5
0.3
0.1
0.05
0.0001
0.001
Single Pulse
0.9
0.7
0.01
0.1
1
10
Rectangular Pulse Duration (Seconds)
Forward Current vs Forward Voltage
60
I
F
, Forward Current (A)
50
40
30
T
J
=125°C
120
t
rr
, Reverse Recovery Time (ns)
Trr vs. Current Rate of Charge
T
J
=125°C
V
R
=133V
60 A
100
80
30 A
20
10
0
0.0
0.2
0.4
0.6
0.8
1.0
V
F
, Anode to Cathode Voltage (V)
Q
RR
vs. Current Rate Charge
T
J
=125°C
V
R
=133V
T
J
=25°C
60
40
20
0
200
400
-di
F
/dt (A/µs)
600
800
15 A
Q
RR
, Reverse Recovery Charge (nC)
I
RRM
, Reverse Recovery Current (A)
1800
1500
1200
900
600
35
30
25
20
15
10
5
0
I
RRM
vs. Current Rate of Charge
T
J
=125°C
V
R
=133V
60 A
30 A
60 A
30 A
15 A
15 A
300
0
0
200
400
-diF/dt (A/µs)
Capacitance vs. Reverse Voltage
1250
600
800
200
400
-diF/dt (A/µs)
600
800
C, Capacitance (pF)
1000
750
500
250
0
1
10
100
1000
V
R
, Reverse Voltage (V)
www.microsemi.com
3-5
APT30DS20HJ – Rev 1 October, 2012
APT30DS20HJ
