MN09-D-03-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MN09-D-03-50

MN09-D-03-50: DescriptionRF N Connector, Female, Cable Mount, Crimp Terminal; CategoryThe connector The connector; File Size569KB，6 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

MN09-D-03-50 Overview

RF N Connector, Female, Cable Mount, Crimp Terminal

MN09-D-03-50 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	INSERTION LOSS IS LESS THAN 0.15DB AT 10GHZ, APPLICABLE CABLES: RG58/U; RG59/U
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	ACETAL
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	N
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

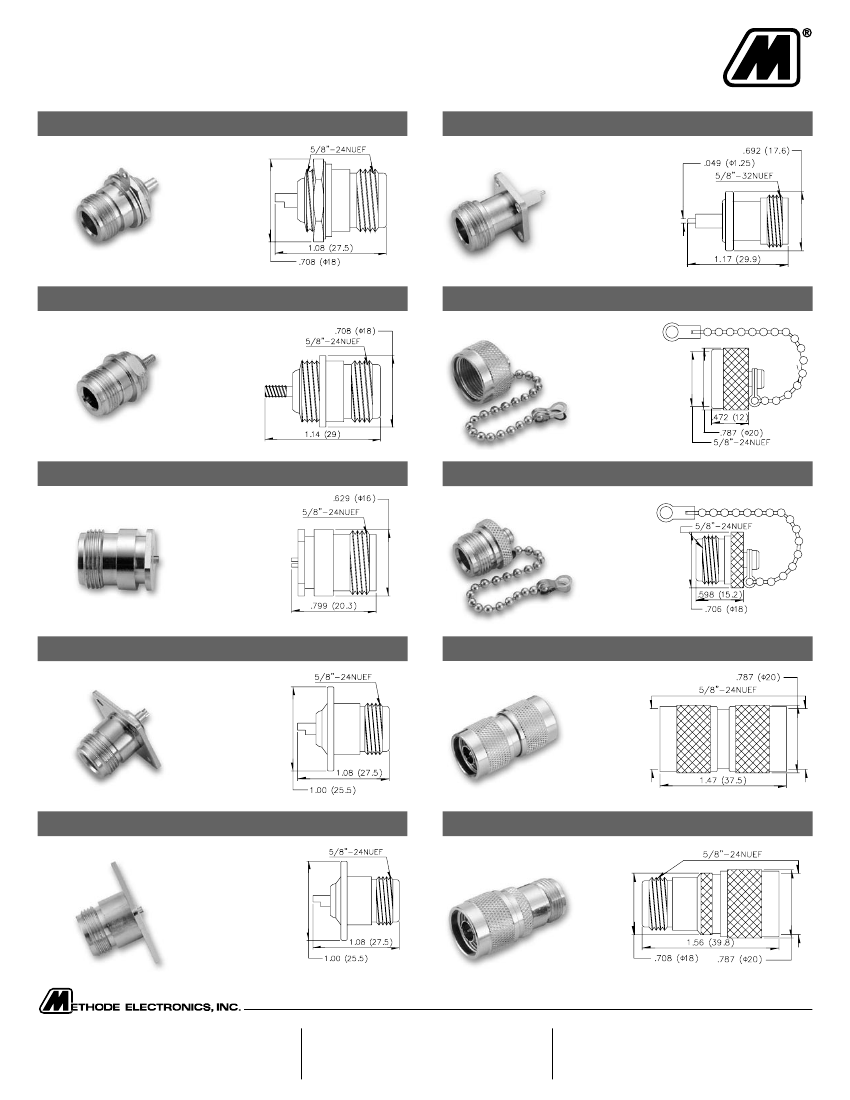

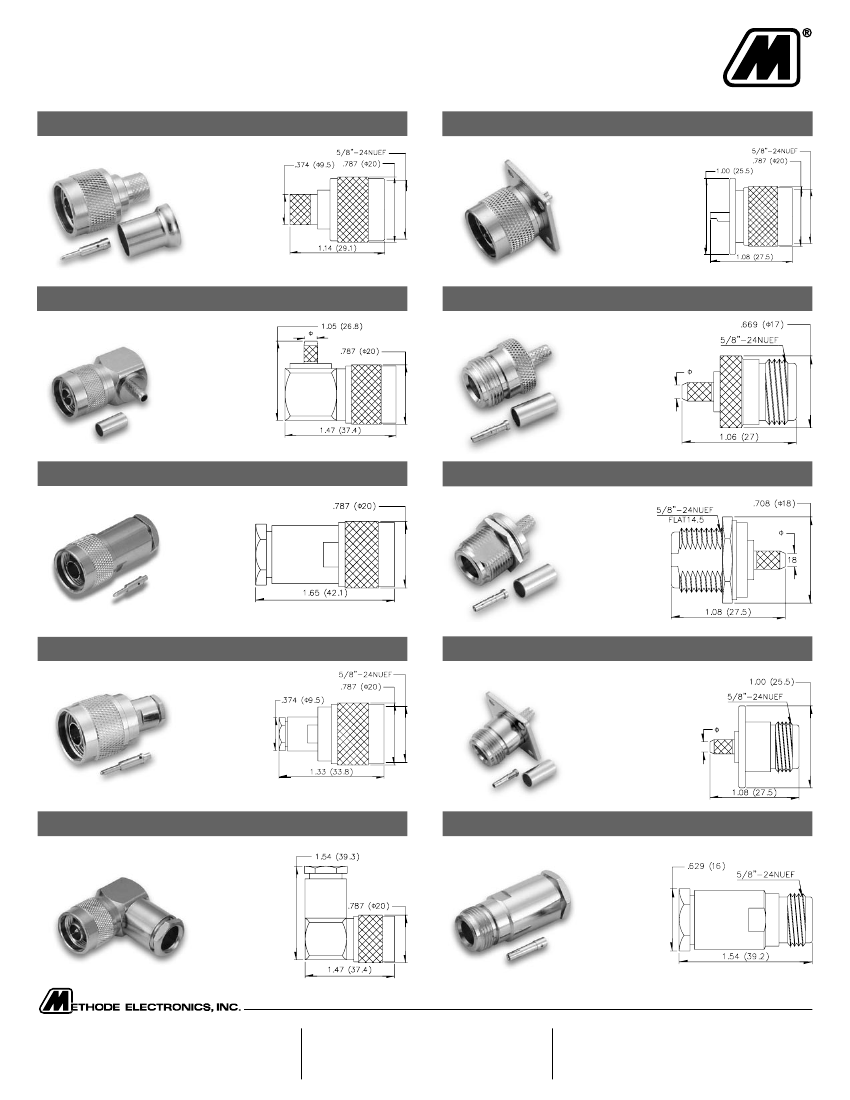

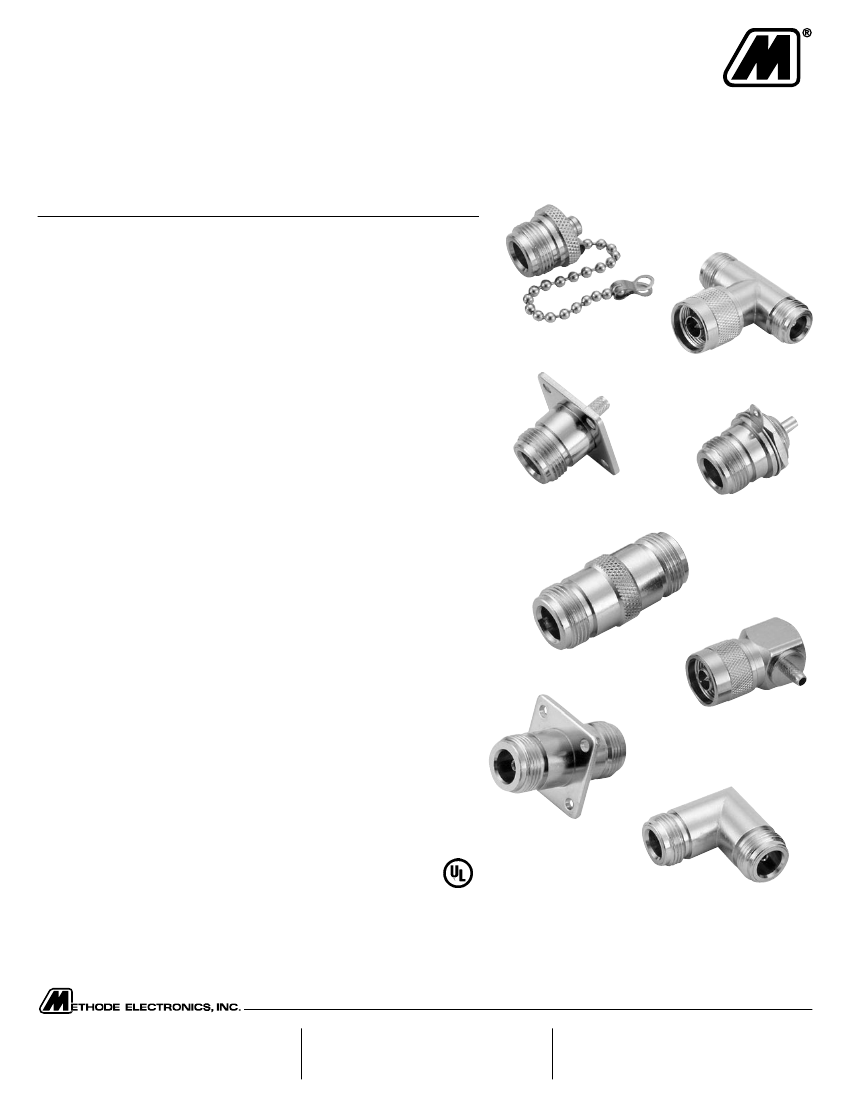

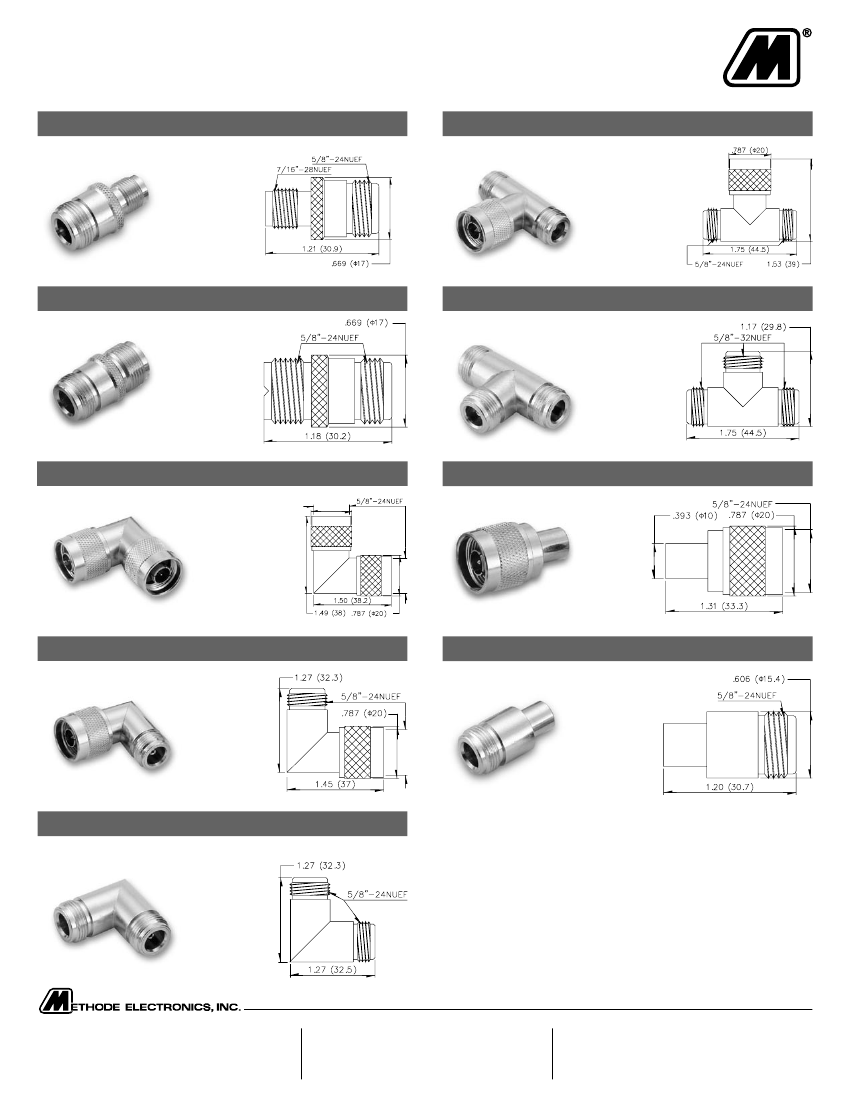

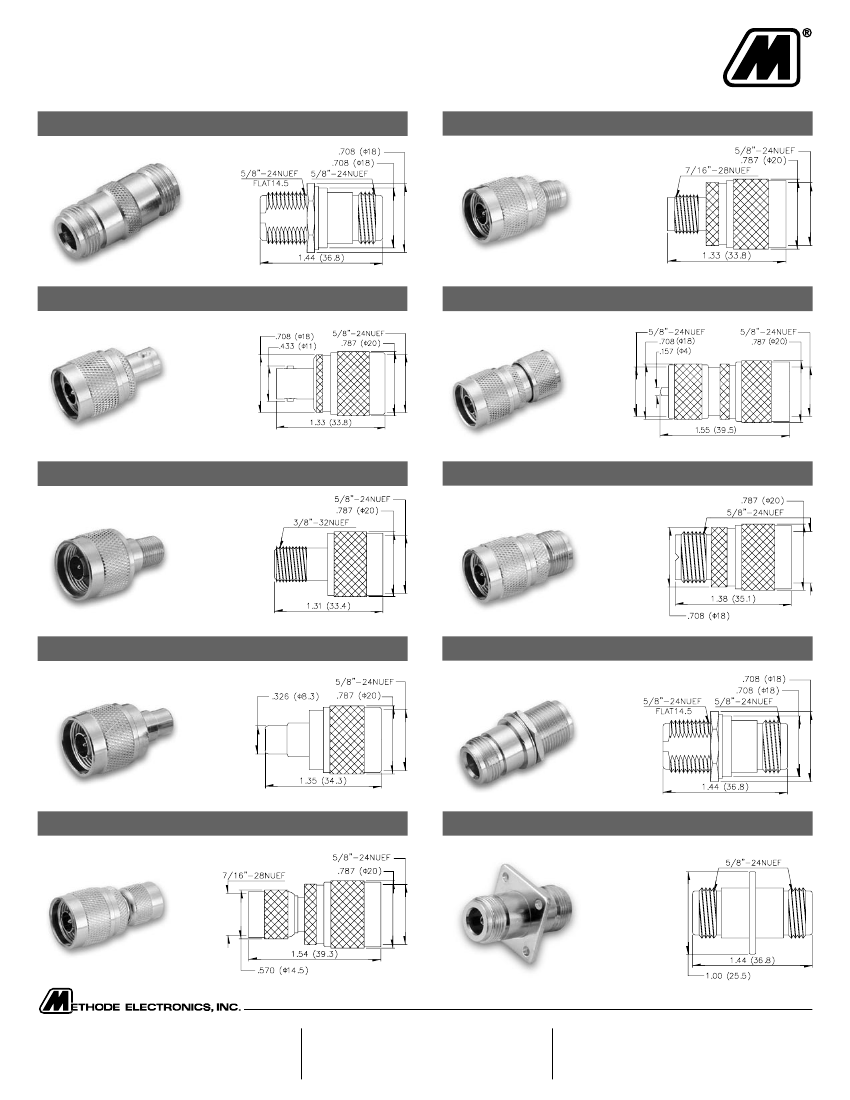

N Series

N Series connectors are medium size, high quality connectors. They feature a threaded coupling and operate up to 11GHz. N Series

connectors are most suitable when high performance and precision are necessary. Applications include Test and Measurement,

Antennas, and Broadcast Equipment.

Electrical

Speciﬁcation:

Impedance:

Frequency Range:

Contact Current:

Working Voltage:

Contact Resistance:

MIL-C-39012

Paragraph

50Ω 75Ω

DC - 11GHz DC - 1.5GHz

DC 3.5A Max.

5000 VDC RMS

Center contacts 3.0 mΩ

max @ 1A, DC

Outer contacts 0.3 mΩ

5000 MΩ, min.

<0.15dB at 10 GHz

≤

1.5

-90 dBm min from 2-3 GHz

20 Ncm ~ 170 Ncm

27 N

500 matings

(3-16)

(3-11)

(3-29)

(3-15)

(3-28)

Insulation Resistance:

Insertion Loss:

VSWR:

RF Leakage:

Mechanical Data:

Coupling Torque:

Inner Conductor Retention

Force Axial:

Mating Cycles:

Environmental Data:

Temperature Range:

-55˚C ~ +165˚C

Corrosion Resistance:

MIL-STD-202 Method 101 Condition B

Thermal Cycling Tests:

MIL-STD-202 Method 102 Condition C

Shock:

MIL-STD-202 Method 213 Condition I

Vibration:

MIL-STD-202 Method 204 Condition B

Materials:

Bodies and Male Contacts:

Center Contact Female:

Insulators:

Gaskets:

Platings

Bodies:

Contacts:

Brass

Beryllium Copper

PTFE Teﬂon

Silicon Rubber

Nickel

Gold

(3-14)

(3-20)

(3-19)

E191630

*Consult Factory

Methode offers additional products and options, not illustrated in the catalog. Please contact the factory if you require additional assistance

to resolve your design needs.

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
