MSM77C20ARS datasheet, PDF - EEWORLD Datasheet

MSM77C20ARS: DescriptionDigital Signal Processor, 8-Ext Bit, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size246KB，16 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

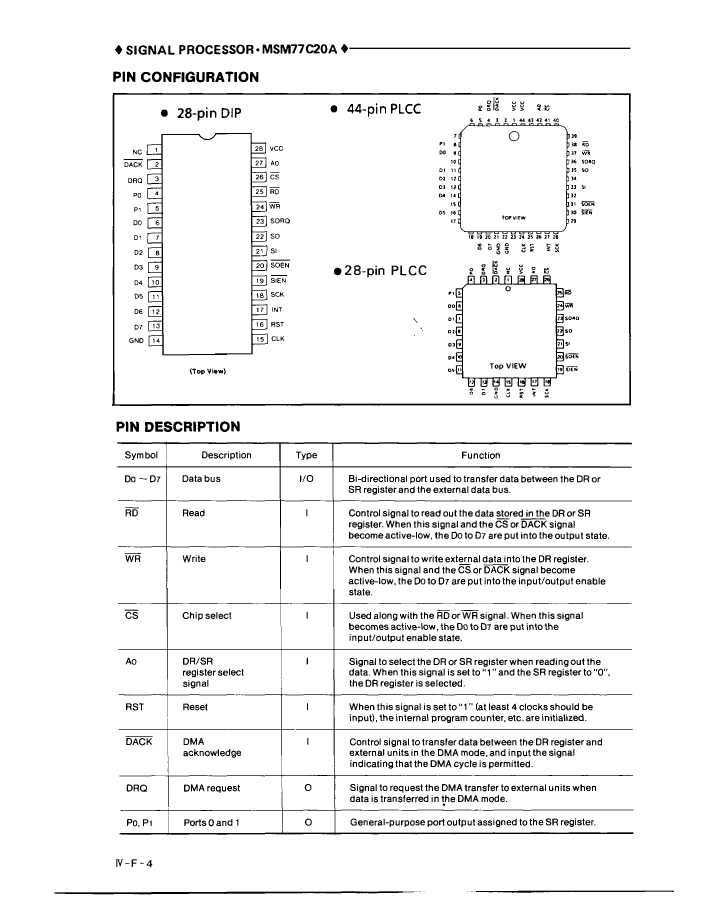

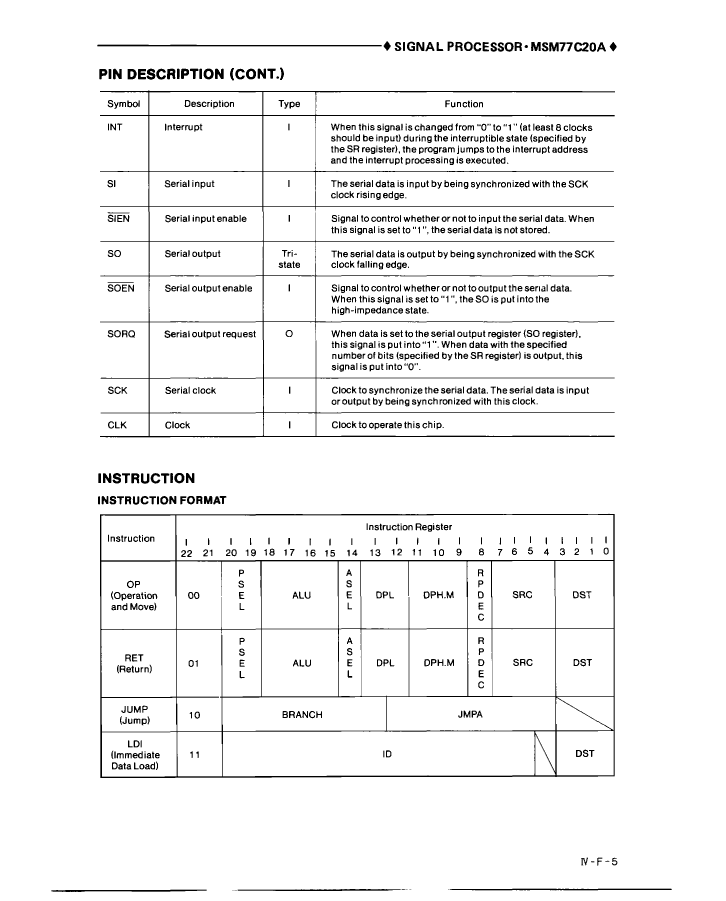

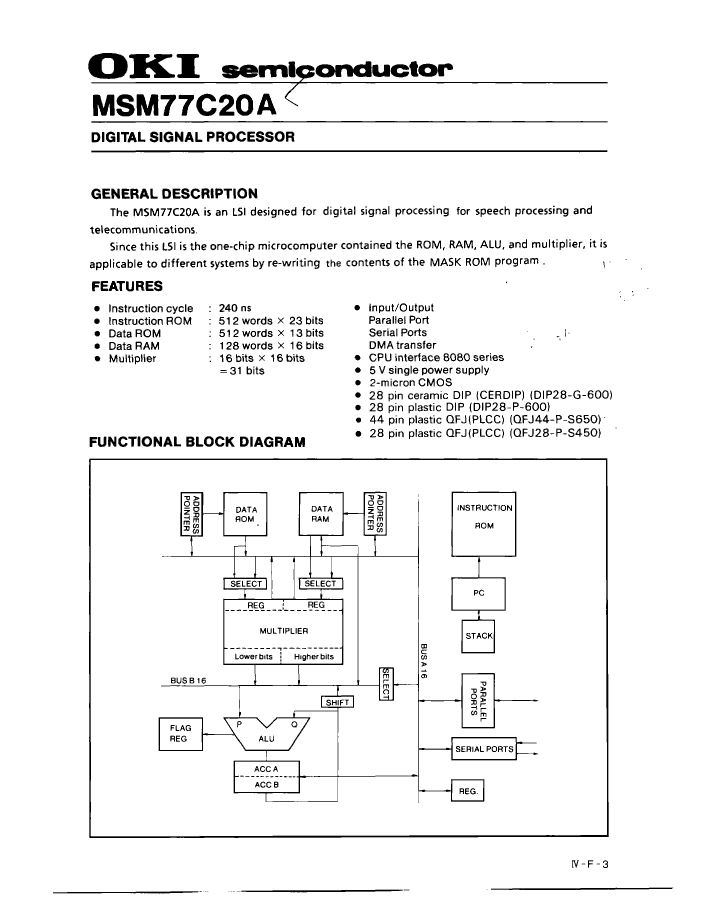

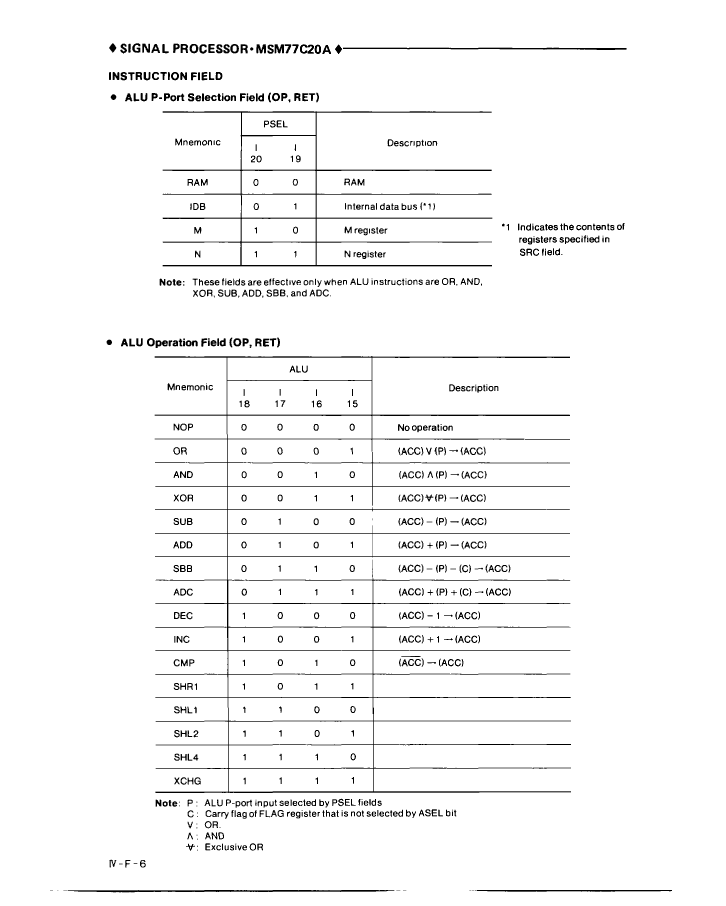

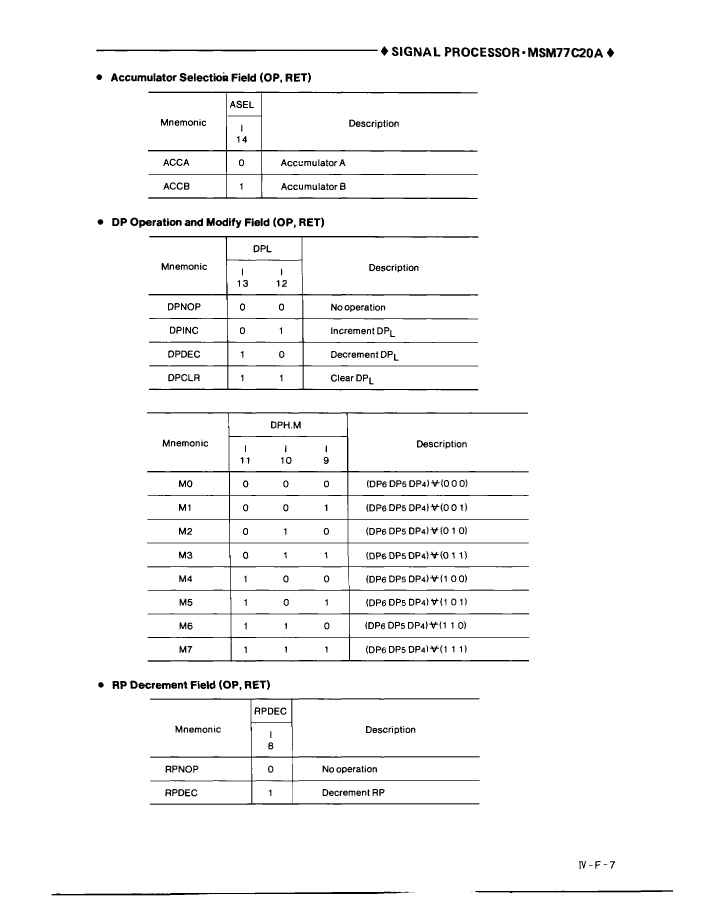

MSM77C20ARS Overview

Digital Signal Processor, 8-Ext Bit, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Address bus width	1
barrel shifter	NO
External data bus width	8
Internal bus architecture	MULTIPLE
JESD-30 code	R-PDIP-T28
length	36.7 mm
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.15 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
Base Number Matches	1

	MSM77C20ARS	MSM77C20AJS	MSM77C20AAS
Description	Digital Signal Processor, 8-Ext Bit, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28	Digital Signal Processor, 8-Ext Bit, CMOS, PQCC44, PLASTIC, LCC-44	Digital Signal Processor, 8-Ext Bit, CMOS, CDIP28, 0.600 INCH, CERDIP-28
Maker	OKI	OKI	OKI
Parts packaging code	DIP	LCC	DIP
package instruction	DIP,	QCCJ,	DIP,
Contacts	28	44	28
Reach Compliance Code	unknown	unknown	unknown
Address bus width	1	1	1
barrel shifter	NO	NO	NO
External data bus width	8	8	8
Internal bus architecture	MULTIPLE	MULTIPLE	MULTIPLE
JESD-30 code	R-PDIP-T28	S-PQCC-J44	R-GDIP-T28
Number of terminals	28	44	28
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCJ	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.15 mm	4.6 mm	5.1 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
width	15.24 mm	16.59 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER
length	36.7 mm	16.59 mm	-
