M80-7960305: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-7960305 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

M80-7960305 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

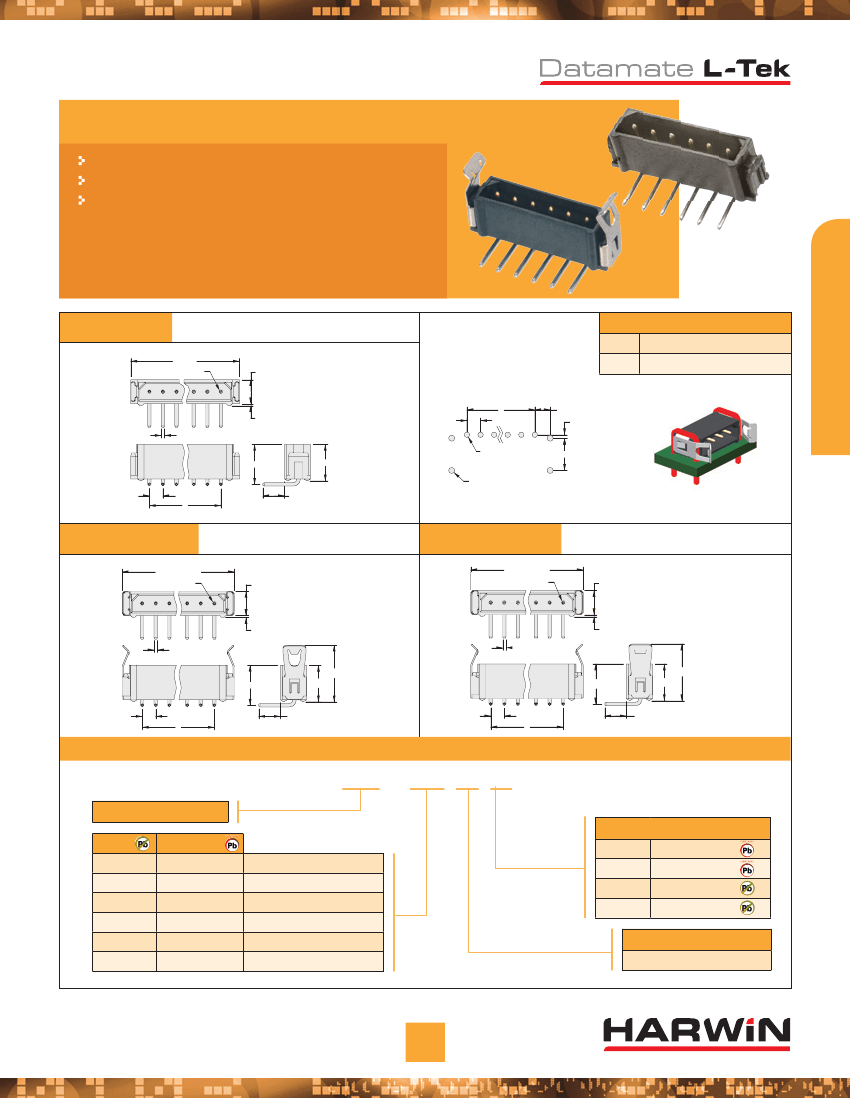

Datamate Connectors

Male Single row Horizontal PC Tail

Mates with female connectors on pages 21 to 24.

For British Standard versions see pages 18 to 19.

Supplied with Strain Relief straps:

order code M80-0030006.

uNLATCHED

A max

No. 1 contact

3.55

CALCULAtion

A

B

B + 5.60

(Total no. of contacts - 1) x 2

0.30

Ø0.50

B

2.00

2.25

0.50

Ø0.80

max

5.90

5.40

4 x

Ø0.90

min

For Strain Relief straps

4.75

2.00

B

Tail

recommended PC Board Pattern

View of Strain relief

strap in place

LOCKINg LATCH

A + 0.50 max

No. 1 contact

3.55

FrICTION LATCH

A + 0.50 max

No. 1 contact

3.55

0.30

Ø0.50

8.35

5.90

2.00

B

5.40

Ø0.50

0.30

8.35

5.90

5.40

Tail

2.00

B

Tail

HOw TO OrDEr

M80 - XXX XX XX

seRies CoDe

Rohs

843

842

846

793

792

796

All dimensions in mm.

non-Rohs

878

876

804

793

792

796

Unlatched (3mm tail)

Locking Latch (3mm tail)

Friction Latch (3mm tail)

Unlatched (4.5mm tail)

Locking Latch (4.5mm tail)

Friction Latch (4.5mm tail)

Finish

05

22

42

45

Gold

Gold + Tin/Lead

Gold + Tin

Gold

totAL no. oF ContACts

02 to 07, 17, 22

www.harwin.com

29

DATAMATE L-TEK

M80-7960305 Related Products

	M80-7960305	M80-7960205	M80-7960405	M80-7960505	M80-7960605	M80-7960705	M80-7961705	M80-7962205
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M80	M80	M80	M80	M80	M80	M80	M80
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	2	4	5	6	7	17	22
Base Number Matches	1	1	1	1	1	1	1	1

Recommended Resources

Using 8255 port to form matrix keyboard circuit

Touch type alarm circuit 4

Charge mode amplifier circuit diagram

Household experimental electrotherapy circuit

LM324+TBA820 hands-free call circuit telephone circuit

Universal regulated power supply
