4.0x4.0mm RIGHT ANGLE SURFACE MOUNT
LED LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: AA4040RWC/J
WHITE
Description
The source color devices are made with InGaN on SiC Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
Features
SINGLE COLOR.
SUITABLE FOR ALL SMT ASSEMBLY AND SOLDER PROCESS.
AVAILABLE ON TAPE AND REEL.
IDEAL FOR BACKLIGHTING.
PACKAGE : 500PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
ELECTROSTATIC DISCHARGE THRESHOLD (HBM):1000V.
TYP. COLOR TEMPERATURE:6500K
COLOR COORDINATES:X=0.33,Y=0.34 ACC. TO
CIE1931(WHITE).
OPTICAL EFFICIENCY:30 lm/W(TYP.)
COLOR REPRODUCTION INDEX:80
RoHS COMPLIANT.
All devices, equipment and machinery must be electrically
grounded.
Applications
traffic signaling.
backlighting (illuminated advertising , general lighting).
interior and exterior automotive lighting.
substitution of micro incandescent lamps.
reading lamps.
signal and symbol luminaire for orientation.
marker lights (e.g. steps, exit ways, etc).
decorative and entertainment lighting.
indoor and outdoor commercial and residential
architectural lighting.

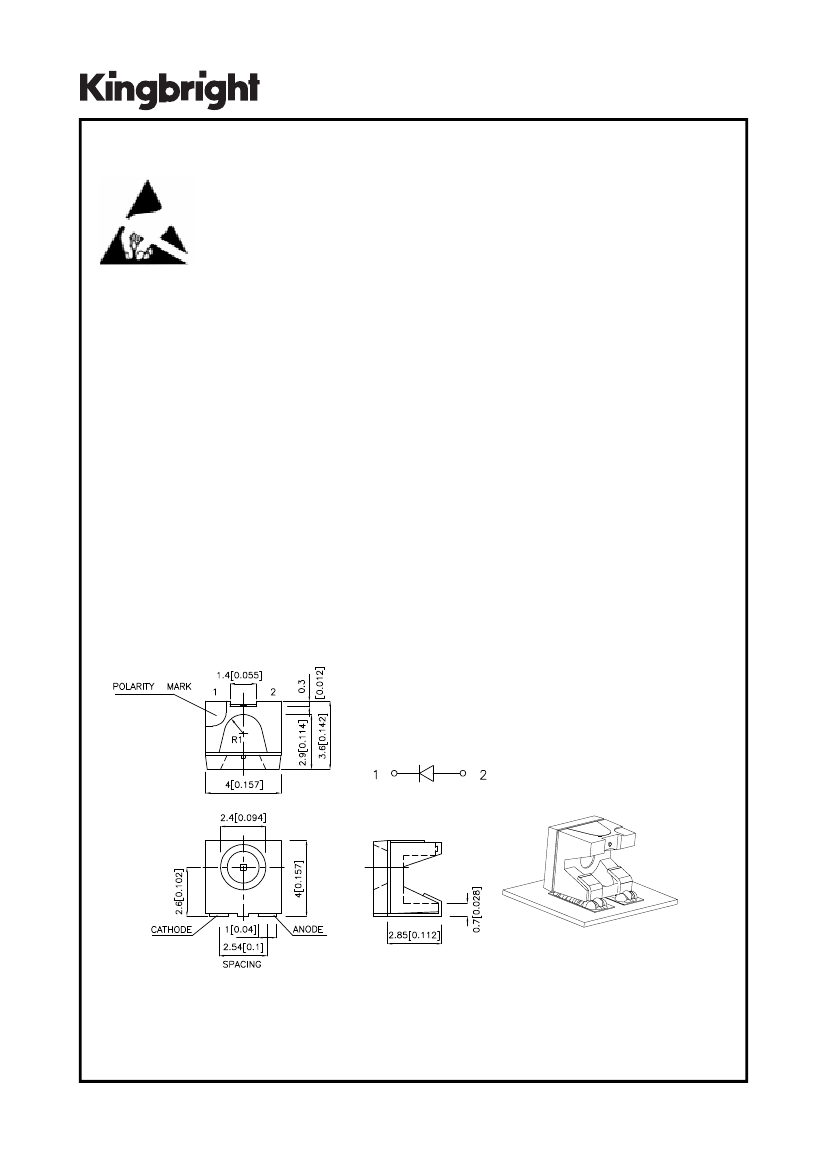

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAG2565
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAY/23/2006
DRAWN: H.Q.YUAN
PAGE: 1 OF 7
ERP: 1201002163
Selection Guide
Part No.
Dice
Lens Type
luminous Intensity
Iv(mcd) @ 20 mA
Min.
AA4040RWC/J
WHITE (InGaN)
WATER CLEAR
480
Typ.
800
Note2
v (mlm)
@ 20 mA
Typ.
1950
Note3
Viewing
Note1
Angle
2θ1/2
θ
90°
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Reverse Voltage
Junction temperature
Operating Temperature
Storage Temperature
DC Forward Current
Peak Forward Current
Note4
Symbol
P
t
V
R
T
J
Top
Tstg
I
F
I
FM
R
th JA
R
th JS
Value
120
5
110
-40 To +85
-40 To +100
30
100
300
160
Unit
mW
V
°C
°C
°C
mA
mA
°C/W
°C/W
Thermal resistance
Note5
Junction/ambient
Junction/solder point
Notes:
1.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
3.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data.
For the purpose of product enhancement, the typical data is subject to change without prior notice.
4.1/10 Duty Cycle, 0.1ms Pulse Width.
5.Rth(J-A) Results from mounting on PC board FR4 (pad size≥16 mm
2
per pad),

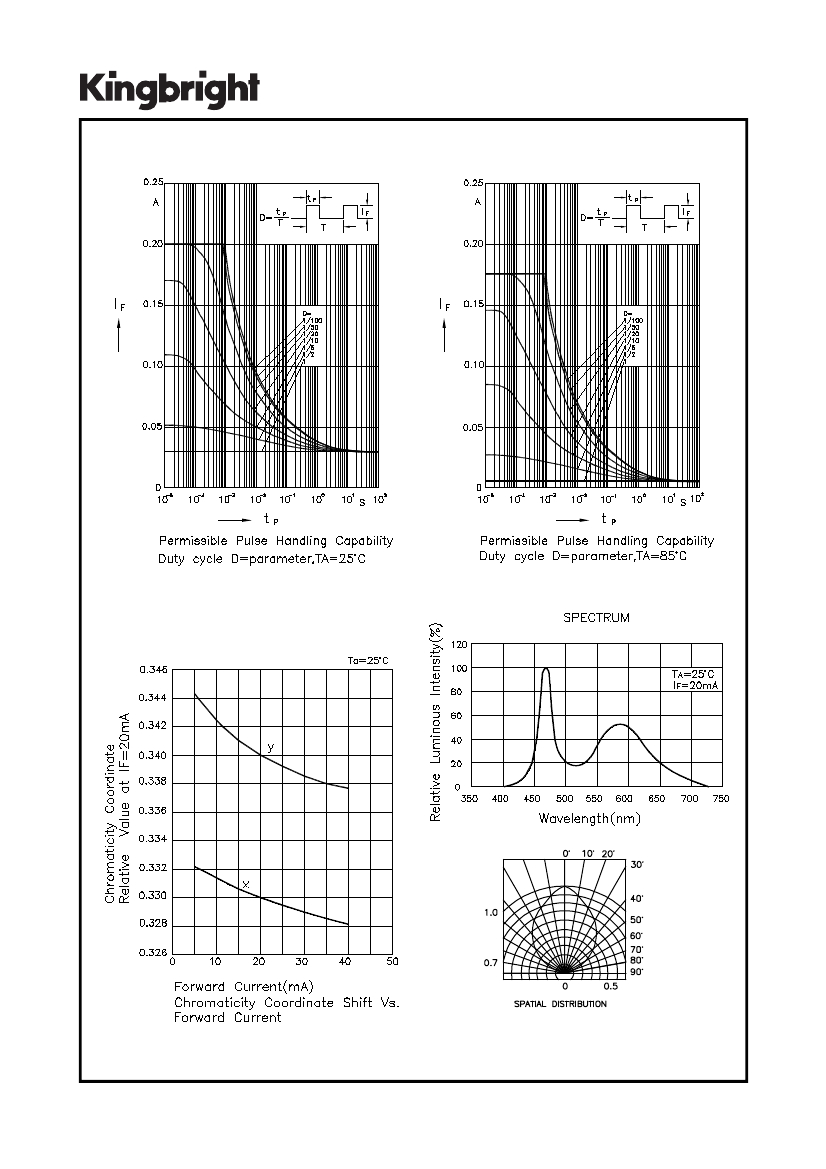

Electrical / Optical Characteristics at T
A
=25°C
Parameter

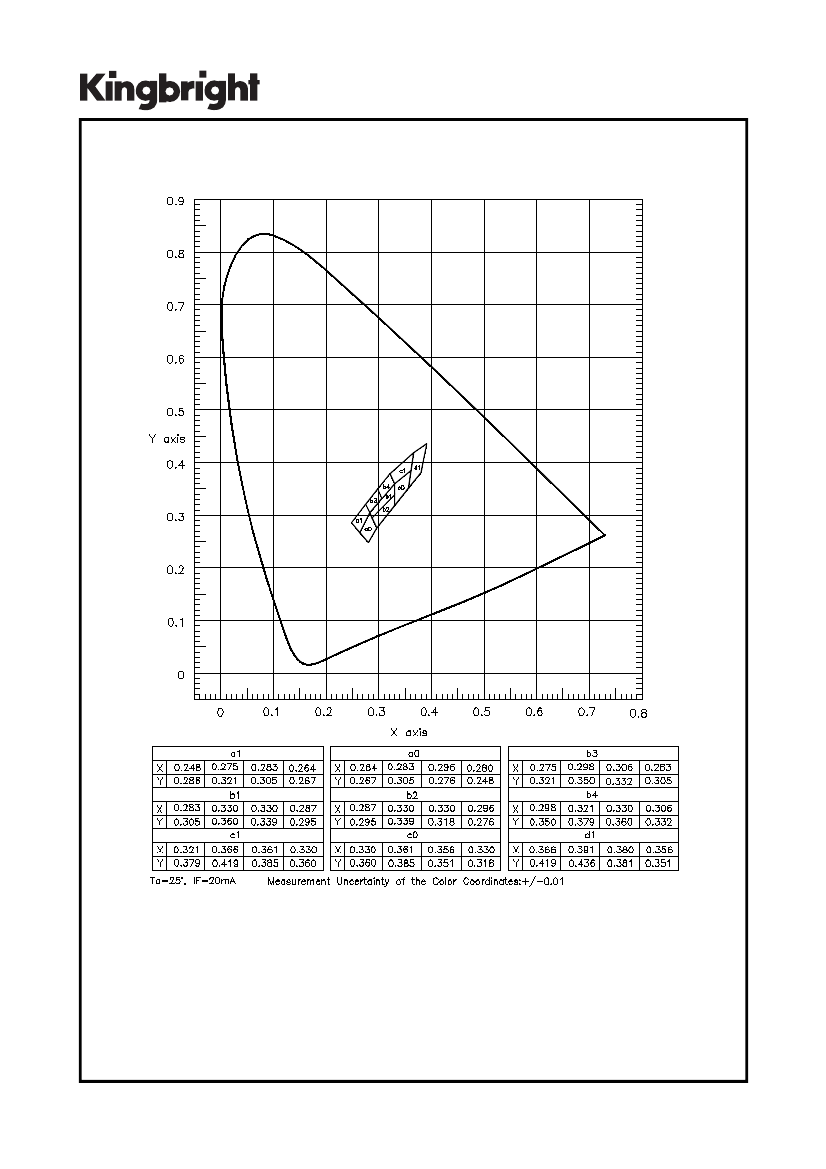

Chromaticity coordinate x acc.to CIE1931
I
F
=20mA [Typ.]
Chromaticity coordinate y acc.to CIE1931
I
F
=20mA [Typ.]
Forward Voltage I
F
=20mA [Min.]
Forward Voltage I
F
=20mA [Typ.]
Forward Voltage
I
F
=20mA [Max.]
[Typ.]
I
R
Reverse Current (V
R
=5V)
[Max.]
TC x
10
-0.1
Temperature coefficient of x
[Typ.]
I
F
=20mA, -10
°
C T 100
°
C
Temperature coefficient of y
[Typ.]
I
F
=20mA, -10
°
C T 100
°
C
Temperature coefficient of V
F
I
F
=20mA, -10
°
C T 100
°
C
[Typ.]
V
F
Note2
Symbol
X
Y
Note1
Value
0.33
0.34
2.6
3.2
4.0
0.01
Unit
-
-
Note1
V
Reverse Current (V
R
=5V)
µA
10
-3
/
°
C
10
-3
/
°
C
mV/
°
C
TCy
-0.2
TC
V
-2.5
Notes:
1.Chromaticity coordinates are measured by a current pulse of 20ms with a tolerance of ±0.01 in X and Y color coordinates.
2.Forward voltage is measured with a current pulse of 10ms at a tolerance of ±0.1V.
SPEC NO: DSAG2565
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAY/23/2006
DRAWN: H.Q.YUAN
PAGE: 2 OF 7
ERP: 1201002163

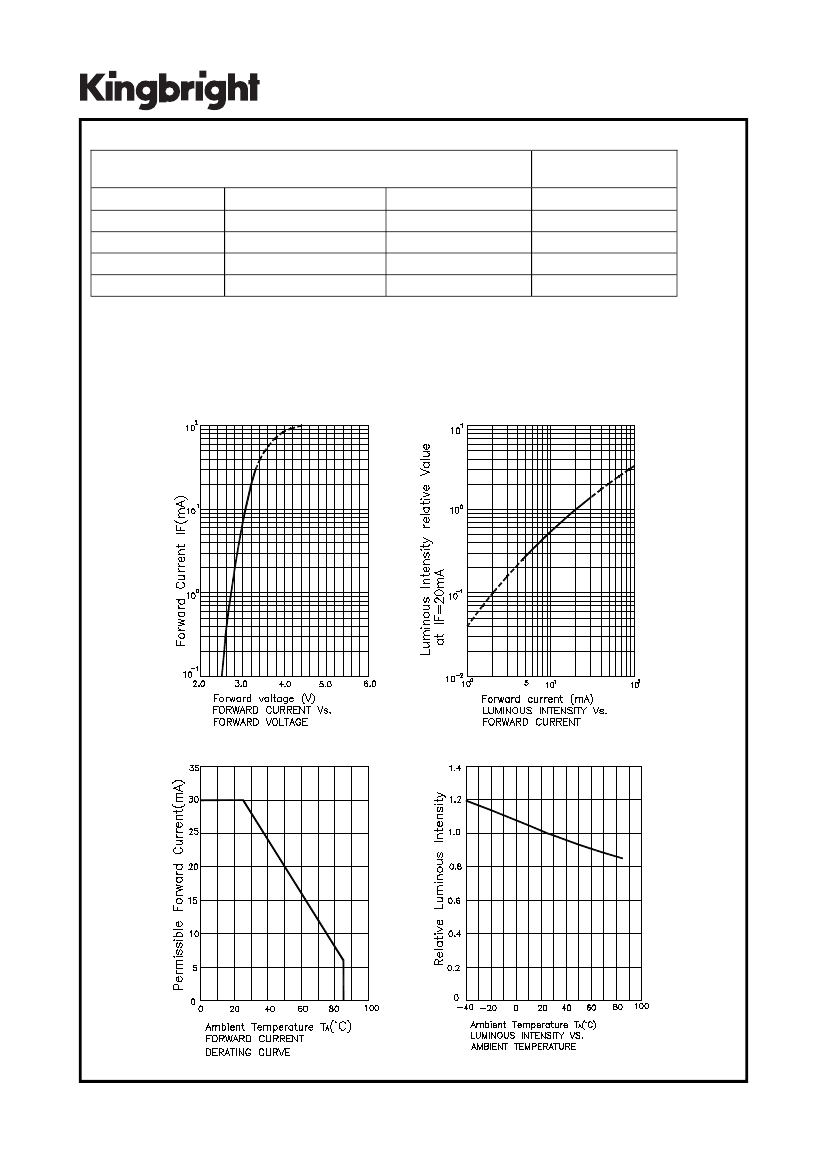

Brightness codes
luminous Intensity
Iv(mcd) @ 20 mA
Code.
S
T
U
V
Min.
480
650
900
1200
Note1
v (mlm)
@ 20 mA
Max.
750
1100
1500
1800
Typ.
1720
2380
3150
3760
Note2
Notes:
1.Luminous intensity is measured by a current pulse of 10ms at a tolerance of ±15%.
2.The typical data of Luminous Flux can only reflect statistical figures, actual parameters of individual product could differ from the typical data. For
the purpose of product enhancement, the typical data is subject to change without prior notice.
White
AA4040RWC/J
SPEC NO: DSAG2565
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAY/23/2006
DRAWN: H.Q.YUAN
PAGE: 3 OF 7
ERP: 1201002163
