CLV0868E-LF
PHASE NOISE (1 Hz BW, typical)
9939 Via Pasar | San Diego, CA 92126
TEL: (858) 621-2700 | FAX: (858) 621-2722
URL: www.zcomm.com
EMAIL: applications@zcomm.com
Rev A1
Applications
•
Spread Spectrum Radios
•
Earthstations
•
Downconvertors
Application Notes
• AN-101: Mounting and Grounding
• AN-102: Output Loading
• AN-107: Manual Soldering
£(f) (dBc/Hz)
Voltage-Controlled Oscillator
Surface Mount Module
OFFSET (Hz)
Performance Specifications
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW)
Harmonic Suppression (2nd)
Tuning Voltage
Tuning Sensitivity (avg.)
Power Output
Load Impedance
Input Capacitance
Pushing
Pulling (14 dB Return Loss, Any Phase)
Operating Temperature Range
Package Style
Power Supply Requirements
Supply Voltage (Vcc, nom.)
Supply Current (Icc)
Additional Notes
Min
850
Typ
-111
-20
Max
896
-18
4.5
Units
MHz
dBc/Hz
dBc
Vdc
MHz/V
dBm
pF
MHz/V
MHz
°C
0.5
25
-3.5
-1.25
50
1
150
.6
.2
-40
MINI-14S
Min
Typ
5
20
85
Max
24
Units
Vdc
mA
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 1 of 2
FRM-S-002 B
Voltage-Controlled Oscillator
Surface Mount Module

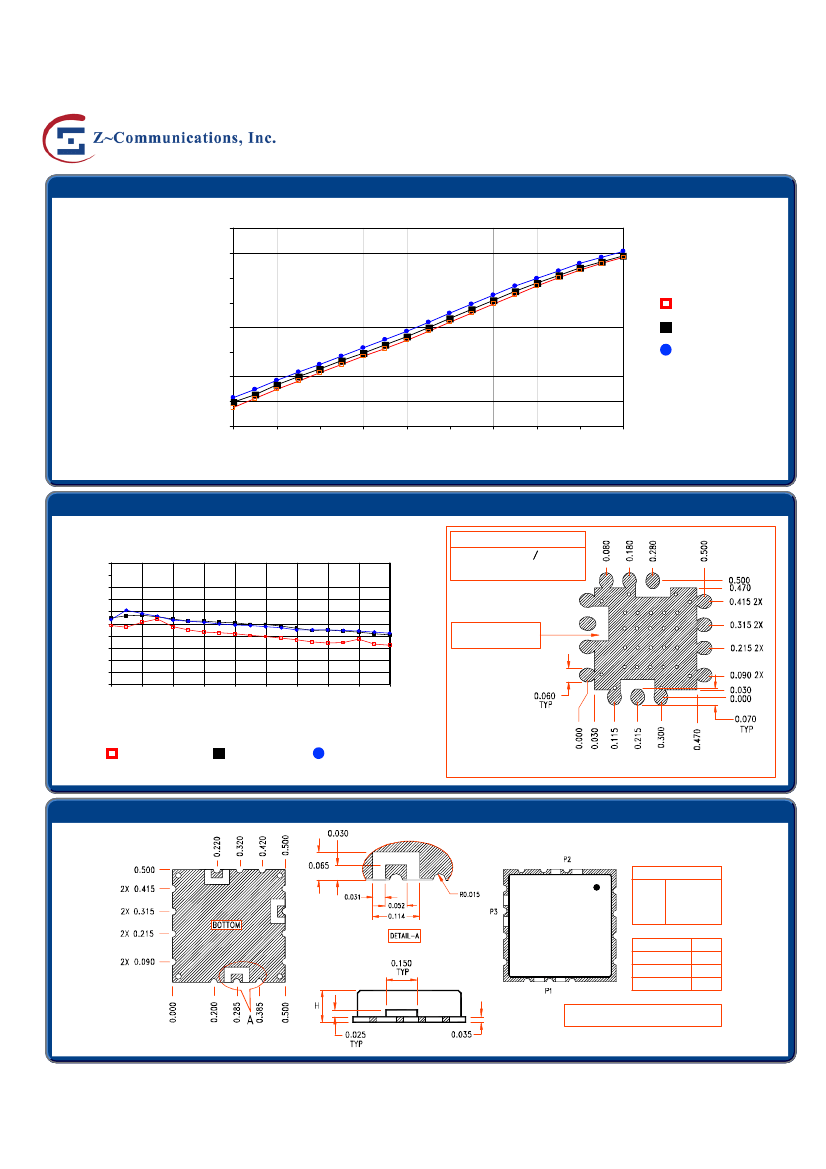

Tuning Curve, typ.
960
CLV0868E-LF
Rev A1
FREQUENCY (MHz)
940
920
900
880
860
840
820
800
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
85 °C
25 °C
-40 °C
TUNING VOLTAGE (Vdc)
Power Curve, typ.
Footprint
RECOMMENDED FOOTPRINT
5
4
3
2
1
0
-1
-2
-3
-4
-5
819
833
846
859
873
887
901
915
928
938
POWER OUTPUT (dBm)
SEVERAL HOLES OF O 0.015 ON
GND. PLANE ARE RECOMMENDED
FOR GOOD GROUNDING.
0.030 MIN. CUTBACK
FROM LIVE PADS
FREQUENCY (MHz)
85 °C
25 °C
-40 °C
Physical Dimensions
PIN CONFIGURATION
Z-COMM
XXXXXXXX-LF
W/O#
D/C
P1
P2
P3
REST
Vt
RF OUT
Vcc
GROUND
PACKAGE
MINI-14S
MINI-14S-L
H
0.220
0.130
MINI-14S-LOW 0.160
NOTE: ALL DIMENSIONS ARE IN INCHES
TOL: XXX: +/- 0.010
LFSuffix = RoHS Compliant. All specifications are subject to change without notice.
© Z-Communications, Inc. All Rights Reserved.
Page 2 of 2
FRM-S-002 B
