BS-C305RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BS-C305RD

BS-C305RD: DescriptionSmart/Normal 7 Seg Numeric LED Display, Bright Red, 7.62mm, SD-04, 14 PIN; CategoryLED optoelectronic/LED photoelectric; File Size238KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BS-C305RD Overview

Smart/Normal 7 Seg Numeric LED Display, Bright Red, 7.62mm, SD-04, 14 PIN

BS-C305RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SD-04, 14 PIN
Reach Compliance Code	unknown
color	BRIGHT RED
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	7.62 mm
Maximum forward current	0.015 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

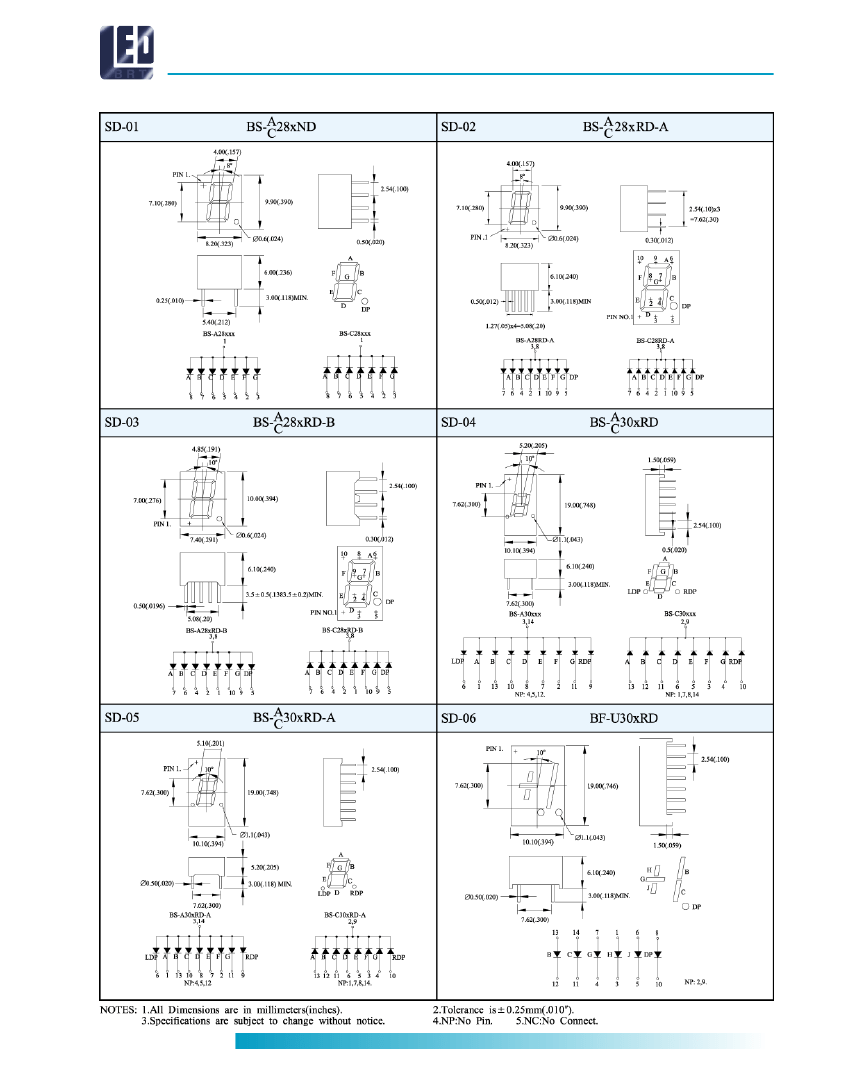

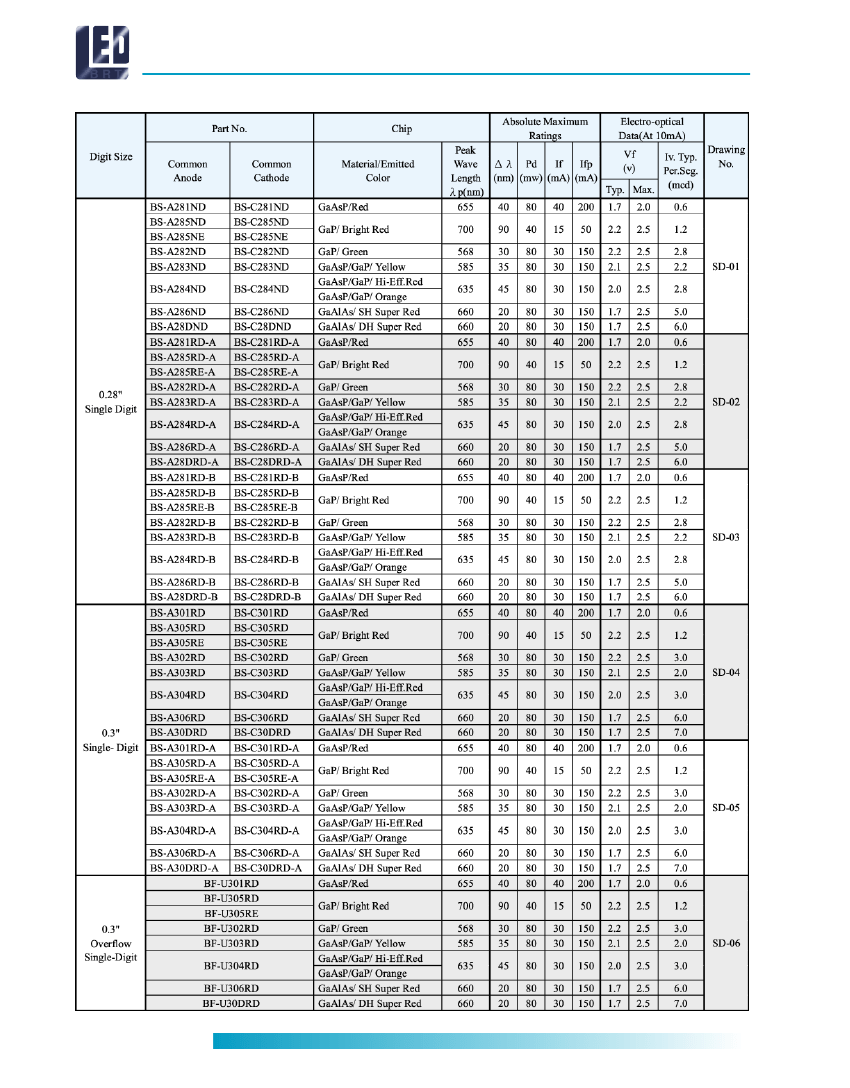

Preview

Download Datasheet

View All

Single Digit LED Displays

BS-A/C, BF-U Series

7-segment, ±1 overflow

AMERICAN BRIGHT

110

w w w. a m e r i c a n b r i g h t l e d . c o m

BS-C305RD Related Products

	BS-C305RD	BS-C302RD-A	BS-C304RD	BS-A301RD	BS-A301RD-A	BS-C305RE-A	BS-C303RD-A
Description	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 7.62mm, SD-04, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm, SD-05, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 7.62mm, SD-04, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 7.62mm, SD-04, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 7.62mm, SD-05, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 7.62mm, SD-05, 14 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 7.62mm, SD-05, 14 PIN
package instruction	SD-04, 14 PIN	SD-05, 14 PIN	SD-04, 14 PIN	SD-04, 14 PIN	SD-05, 14 PIN	SD-05, 14 PIN	SD-05, 14 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	BRIGHT RED	GREEN	HIGH EFFICIENCY RED/ORANGE	RED	RED	BRIGHT RED	YELLOW
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maximum forward current	0.015 A	0.03 A	0.03 A	0.04 A	0.04 A	0.015 A	0.03 A
Number of functions	1	1	1	1	1	1	1
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	-	BRIGHT
Base Number Matches	1	1	1	1	1	1	-
Is Samacsys	-	N	N	N	N	-	-
