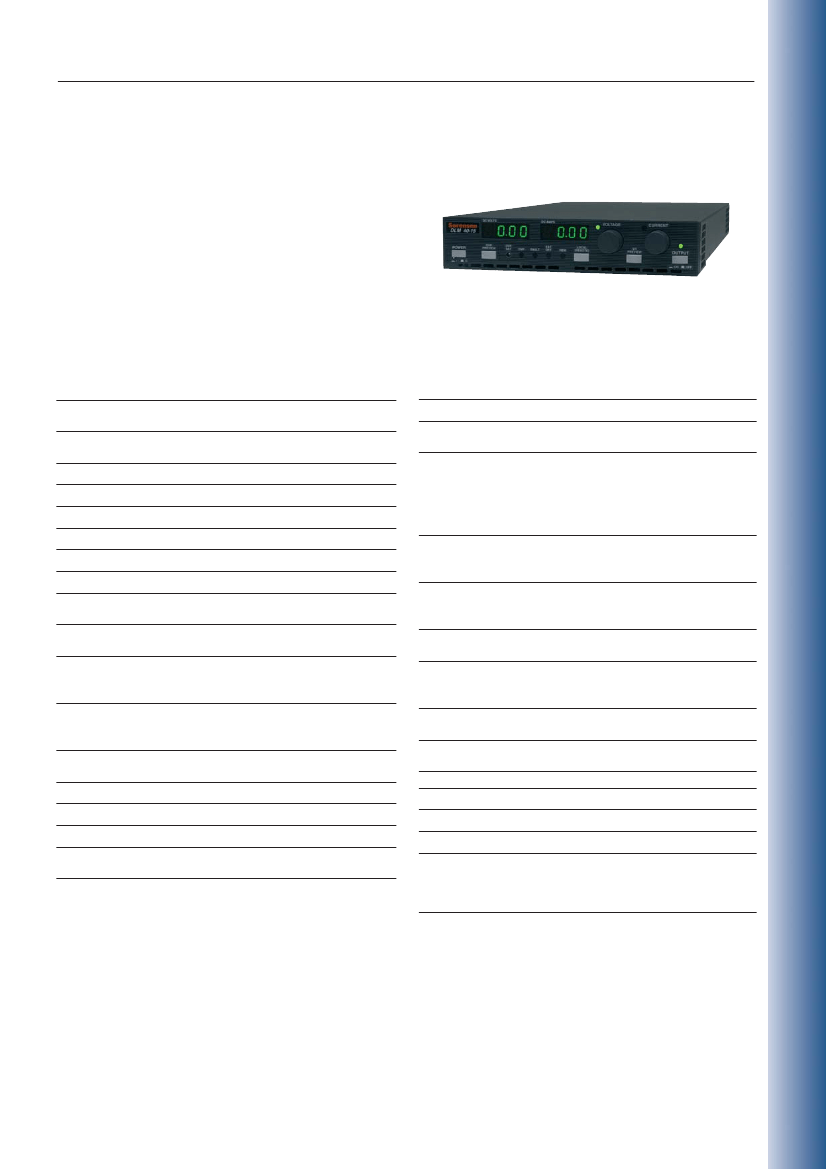

DLM 600 Series
6 0 0 W A T T S P R O G R A M M A B L E D C S U P P LY
LABORATORY
Features
•
•
•
•
•
•
•
High power density
High efficiency
Remote voltage sense & remote operation
Master/slave paralleling, active current sharing
Low output noise
CE mark, UL listing mark and C-UL listing mark
Ethernet/LAN Interface Option
Specifications
INPUT
Input voltage
Frequency
Current
90-132 / 180-264VAC,auto-ranging, 2 Wires +
ground
47-63Hz
11A max. at 115VAC, 6A max. at 230VAC
OPERATING
Efficiency
Parallel/Series operation
84% typical at maximum power
82% typical for DLM 5-7 and DLM 8-75
Up to 4 unit of the same model can be connected
in parallel, with active current sharing control.
Series operation, multiple units of same model can
be connected in series, limited by 300Vpk between
either output terminal and chassis
The maximum allowed load line drop with remote
sensing is 1V total for DLM 5-75 & DLM 8-75
model, 2V total for all other model
Voltage , current (0-100%) and OVP (5-110%) of
full scale can be programmed by selectable
0-5VDC, 0-10VDC, or 0-5KΩ
Voltage or current can be Monitored with user-
selectable ranges, scaled to 0-5VDC or 0-10VDC
Two 3.5 digital LED displays indicate voltage,
current and, over-voltage output set point, fault,
external off, remote and output on
LabVIEW® driver for M9G/M85
(Contact Powerbox)
CE mark, UL listing mark and
C-UL listing mark
Enclosed
1RU 44(H) x 216 (W) x 432mm(D)
4.4Kg
Input: IEC320
Output: Bus bar with 10-32 screws for 5-60VDC
models; terminal blocks with 6-32 screws for
80-300V models
OUTPUT
Voltage adjustment
Current adjustment
Ripple & Noise
Line regulation
Load regulation
Transient response
Zero to rated output
Zero to rated output
See table
Voltage: 0.005% of Vmax + 2mV
Current: 0.01% of Imax + 2mA
Voltage: 0.005% of Vmax + 2mV
Current: 0.02% of Imax + 5mA
500 s to steady-state output voltage
(within 0.1% of Vmax) for 50-100% or 100-50%
load change
+/-0.05% of maximum voltage or current over 8
hours after 30 minute warm-up time at fixed line,
load and temperature
0.02%/°C of maximum output voltage
0.03%/°C of maximum output current
Remote programming
Remote sense
Remote monitoring
Displays and indicators
Stability
Software
Regulatory compliance
Temperature coefficient
MECHANICAL
Case
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
0°C to 50°
-40°C to 65°C
Internal variable speed fan with over-temperature
protection.
Dimensions
Weight
Connectors
Your dependable power partner – www.powerbox.com.au
481
LABORATORY
DLM 600 Series
6 0 0 W A T T S P R O G R A M M A B L E D C S U P P LY
REMOTE INTERFACE OPTIONS
M9G
IEEE-488.2 and RS 232 Interfaces
Disconnect & Polarity reversal relays(10V to 300V
models only, This option requires at least one of the
following operations: M9G, M85, M130 or M131)
Locking Shafts
Optically Isolated Analog Programming and
Monitoring
Multi-channel Slave Interface
Ethernet/LAN and RS232C Interfaces (16 bit)
Multi-channel Slave Interface (16 bit)(M130 Master
ONLY)
PARALLEL CABLE
DLMP1
Paralleling Cable; One cable per slave unit
RACK-MOUNT KIT
DLMRX
Rack-mount Kit for single DLM with filter panel and
for two units mounted side by side
M6
M13
M51A
M85
M130
M131

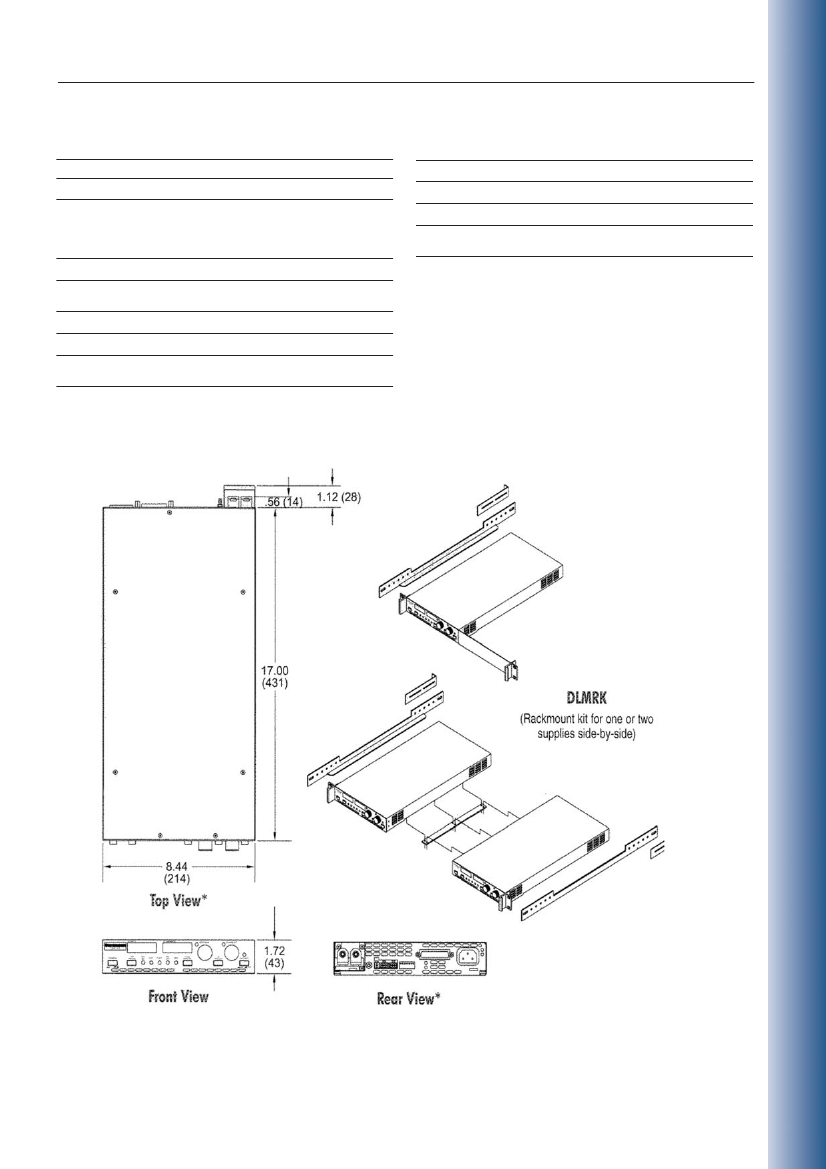

Technical Illustrations
