LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
RGB Power Light LED
LGXRGB-501H
DATA SHEET
DOC. NO :
DATE
QW0905- LGXRGB-501H#
: 06 - Jun - 2007
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
Features
*. Three chip(color) in one package for High Flux LED.
*. Various colors for choice.
*. More Energy Efficient than lncandescent and most Halogen lamps.
*. Low voltage DC operated..
*. Instant light(less than 100 ns).
*. Independent control of each color.
*. No UV.
*. IR reflow process compatible.
Typical Applications
*. LCD Backlights / Light Guides.
*. Commercial and Residential Architectural lighting.
*. Mini-accent / Uplighters / Downlighters / Orientation lighting
*. Fiber Optic Alternative / Decorative / Entertainment lighting.
*. Security / Garden lighting.
*. Sign and channel Letter.
Dimension
9.20±0.3
1.8
+ 1
8.0±0.3
6 -
5 -
4 -
+2
+3
Cathode Mark
1.3
10.07±0.3
11.6±0.3
14.6±0.3
1.5
2.5 5.5
3.3
Heat Sink
(Bottom)
R
A 1
6 K
G
A 2
5 K
1. Anode Red
2. Anode Green
3. Anode Blue
4. Cathode Blue
5. Cathode Green
6. Cathode Red
B
A 3
4 K
Note:1.All dimension are in millimeter tolerance
is ±0.25mm unless otherwise noted
2.Specifications are subject to change without notice
Page 1/9
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only

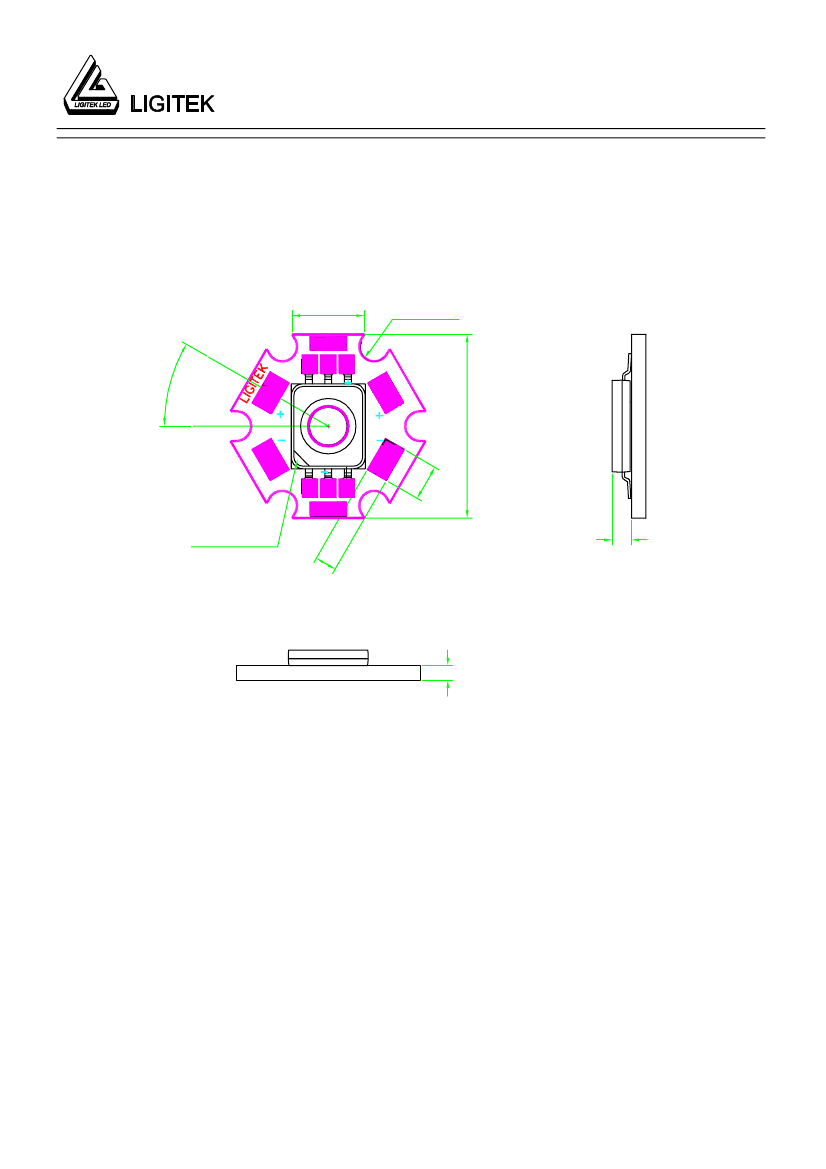

Star Mechanical Dimensions
7.8±0.3
R1.6
30°
19.9±0.3
3.9
Cathode Mark
1.8
2.4
1.6
Note:1.All dimension are in millimeter
Page 2/9
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
White
DC Forward Current for each color
UNIT
I
F
PD
I
FP
Tj
Ir
Tstg
T
opr
T
sol
350
3.92
500
125
100
-40 ~ +120
-40 ~ +100
5
mA
W
mA
Total Power Dissipation
Peak pulse current
Duty 1/10@10KHz
LED junction Temperature
Reverse Current(VR=5V)
Storage Temperature
Operating Temperature
Manual Soldering Time
at 260° C(Max)
℃
μ
A
℃
℃
seconds
. Luminous Flux Characteristics at 350mA
(Ratings At 25
℃
Ambient)
Emission
Color
Min.
Luminous
Flux
@350mA(lm)
Typ.
Max.
Units
PART NO
Red
LGXRGB-501H
Green
Blue
13.9
30.6
6.3
23.5
45
10.7
----
----
----
lm
Page 3/9
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
. Forward Voltage Characteristics at 350mA
(Ratings At 25
℃
Ambient)
PART NO
Emission
Color
Vf
Min.
Typ.
Max.
Units
Red
LGXRGB-501H
Green
Blue
2.0
3.0
3.0
2.5
3.6
3.6
3.2
4.0
4.0
V
Note : Forward Voltage is measured with an accuracy of±0.1V
. Dominant Wavelength Characteristics at 350mA
(Ratings At 25℃ Ambient )
Emission
Color
λ
D
Units
Min.
Typ.
Max.
PART NO
Red
LGXRGB-501H
Green
Blue
619
520
465
----
----
----
629
525
470
nm
. Temperature Coefficient Of Forward Voltage&Thermal
Resistance Junction To Board Characteristics at 350mA
(Ratings At 25℃ Ambient )
Emission
Color
VF/ T
Typ.
Units
Rth,j-B
Typ.
Units
PART NO
Red
LGXRGB-501H
Green
Blue
-2 mV/° C
18 ° C/W
. View Angle Characteristics at 350mA
(Ratings At 25
℃
Ambient )
PART NO
Emission
Color
Lambertian
Units
Red
LGXRGB-501H
Green
Blue
120
Degrees
Page 4/9
