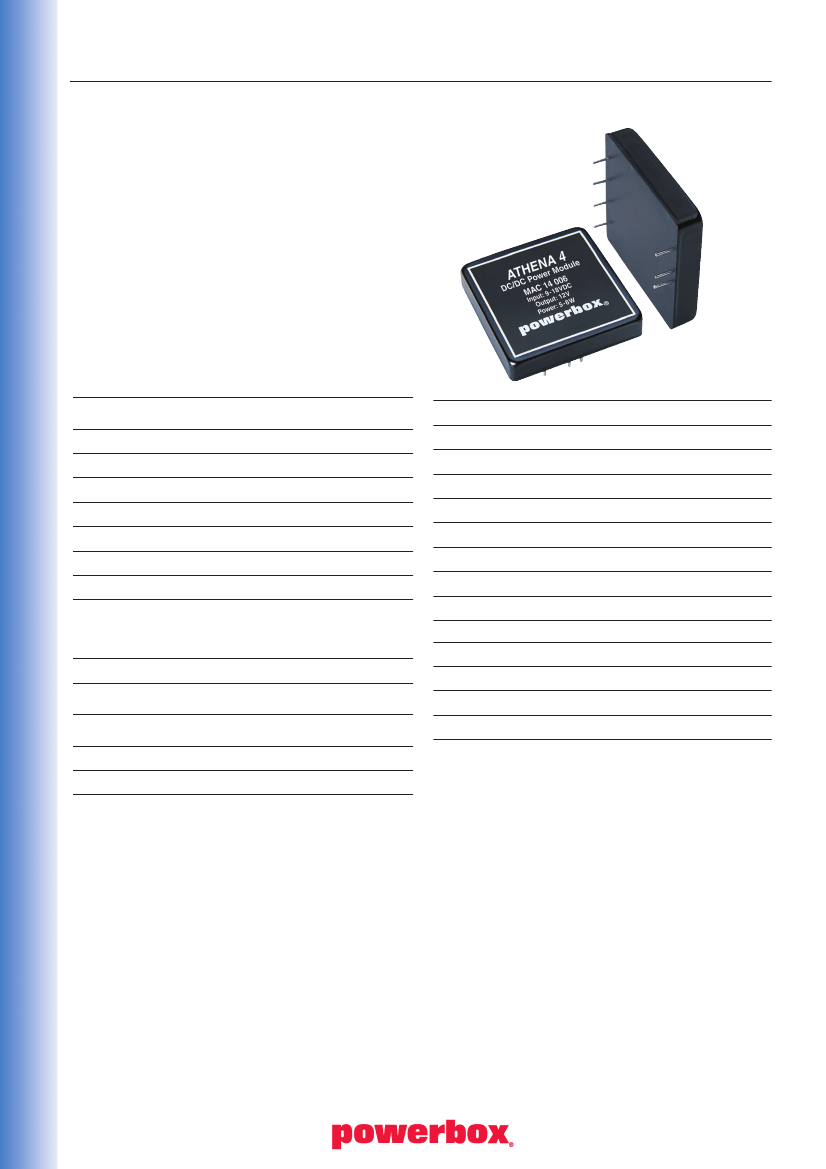

MODULES
MAC 14 Series
5 - 6
W AT T S
S I N G L E
&
D U A L
O U T P U T
D C / D C
I N D U S T R I A L
Features
•
•
•
•
•
2:1 Input range
Regulated output
500 VDC isolation voltage
24-pin DIP Package
Efficiency to 80%
Specifications
INPUT
Nominal voltage
Voltage range
Isolation
Filter
OUTPUT
Power
Line regulation:
Load regulation:
5W to 6W.
±0.5%.
Single: ±0.5 %. 10% min load is required to
meet specification.
Dual: ±1%. 25% min load is required to meet
specification.
± 2%.
5 V: max. 100 mVp-p.
12/15 V: max. 1% p-p.
Fold-back. Approx 80% of output current
at short circuit.
±0.05 %/°C.
77% to 82%.
12V, 24V, 48V.
9-18V, 18-36V, 36-72V.
500VDC.
PI-type
ENVIRONMENTAL
Ambient temperature
Storage temperature
Cooling
OPERATING
MTBF
Switching frequency
Equivalent capacitance
200 000 hours at 25°C ambient.
Min. 100 kHz.
150 pF.
-25°C to +71°C.
-40°C to +100°C.
Convection.
STANDARDS AND APPROVALS
C-Tick
MECHANICAL
Case

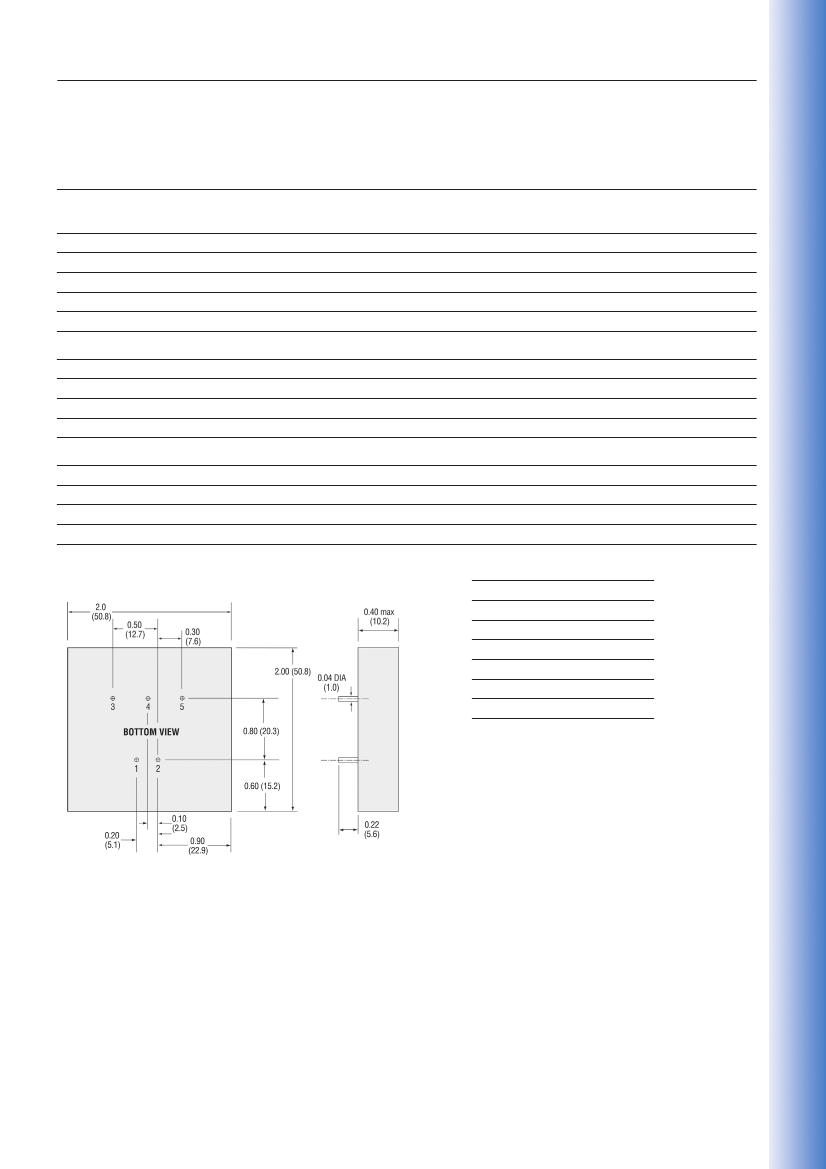

Dimensions
Weight
Non-conductive black plastic.
(H x W x L) 10.2 x 50.8 x 50.8 mm.
51g.
AS/NZS CISPR11 Group 1 Class A
Setting accuracy
Ripple and noise
Short circuit protection
Temp coefficient
Efficiency
