MAD23048: Description5-7.5 WATTS SINGLE & DUAL OUTPUT DC/DC INDUSTRIAL; File Size459KB，2 Pages; ManufacturerPowerbox; Websitehttps://www.powerbox.com

Download Datasheet View All

MAD23048 Overview

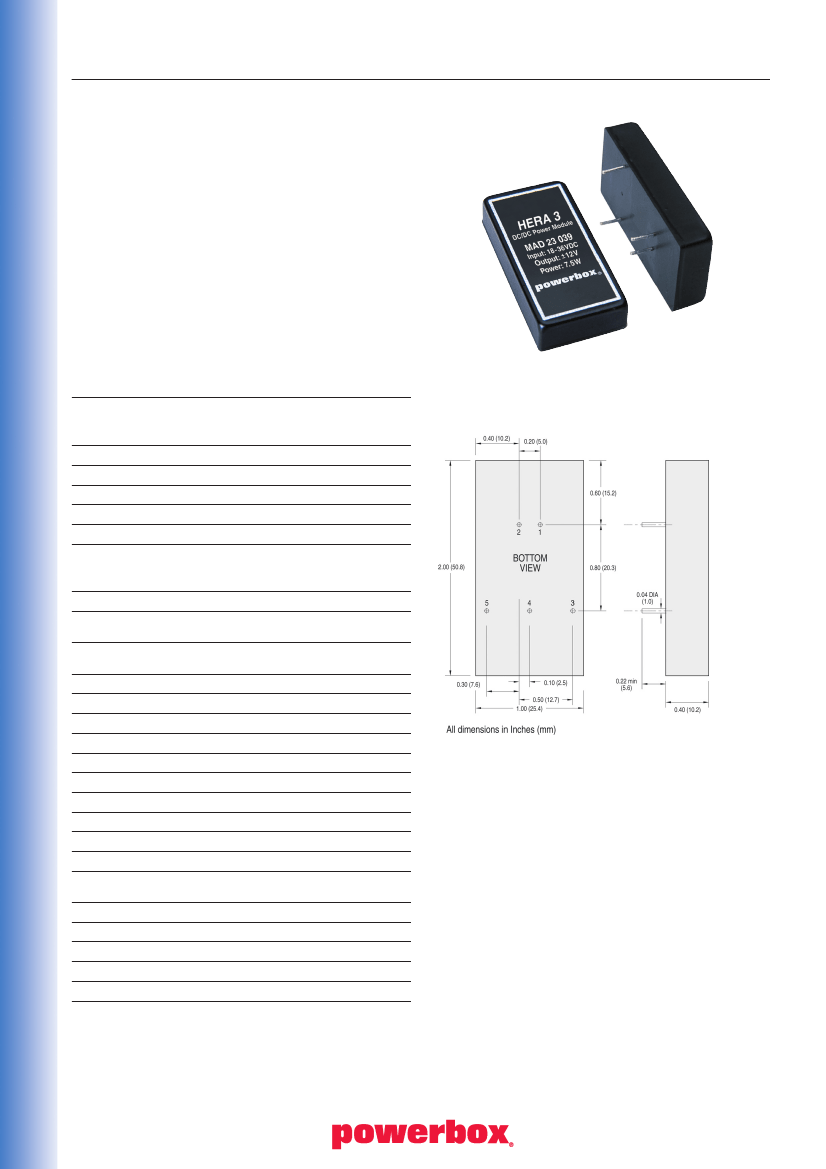

5-7.5 WATTS SINGLE & DUAL OUTPUT DC/DC INDUSTRIAL

Preview

Download Datasheet

View All

MODULES

MAD 23 Series

5 - 7 . 5

WATTS

S I N G L E

D U A L

O U T P U T

D C / D C

I N D U S T R I A L

Features

•

2:1 Input range

Meet EN55022 class B

1500 VDC isolation

Efficiency to 82 %

Specifications

INPUT

Voltage range

Isolation

Filter

OUTPUT

Power

Regulation

Setting accuracy

Ripple and noise

Short circuit protection

Temp coefficient

Efficiency

ENVIRONMENTAL

Operating temperature

Storage temperature

Cooling

GENERAL

MTTF

Switching frequency

Equivalent capacitance

Case

Dimensions (H x W x L)

Weight

STANDARDS

EMI standards

C-Tick

EN55022 class B.

AS/NZS CISPR11 Group 1 Class A

200 000 hours at 25°C ambient.

Min. 100 kHz.

650 pF.

Black coated copper with non-conductive base.

10.2 x 25.4 x 50.8 mm.

32.5g.

–25°C to +71°C.

–40°C to +100°C.

Convection.

5W and 7.5W.

Line: ±0.5% max

Load: Single ±0.5%

Dual ±1.0%

± 2%.

5 V:100mVpp

12/15V 1%pp max

Fold-back. Approx 80% of output current at

short circuit.

±0.05 %/°C.

70% to 82%.

9-18V, 18-36V, 36-72V.

1500VDC.

PI-type
