MODULES
MAD 24 Series
8 - 1 0
WATTS
S I N G L E
&
D U A L
O U T P U T
D C / D C
I N D U S T R I A L
Features
•
•
•
•
•
•
2:1 Input range
Meet EN55022 class A
500 VDC isolation
24-pin DIP Package
Efficiency to 80 %
Six-sided shield
Specifications
INPUT
Nominal voltage
Voltage range
Isolation
Filter
OUTPUT
Power
Regulation
Min load
Load transient response
Setting accuracy
Ripple and noise
Short circuit protection
Temp coefficient
Efficiency
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
GENERAL
MTTF
Switching frequency
Equivalent capacitance
Case
Dimensions (H x W x L)
Weight
STANDARDS
EMI standards
C-Tick
EN55022 class A.
AS/NZS CISPR11 Group 1 Class A
200 000 hours at 25°C ambient.
Min. 200 kHz.
3000 pF.
Black coated copper with non-
conductive black base.
10.2 x 25.4 x 50.8 mm.
35g.
–25°C to +71°C.
–40°C to +100°C.
Convection.
8W and 10W.
Line: ± 0.2% max
Load: ± 1.0% max
10%.
<480µs.
± 1%.
Max. 100 mVp-p.
Fold-back. Approx 80% of output
current at short circuit.
±0.02 %/°C.
75% to 82%.
12V, 24V, 48V.
9-18V, 18-36V, 36-72V.
500VDC.
PI-type

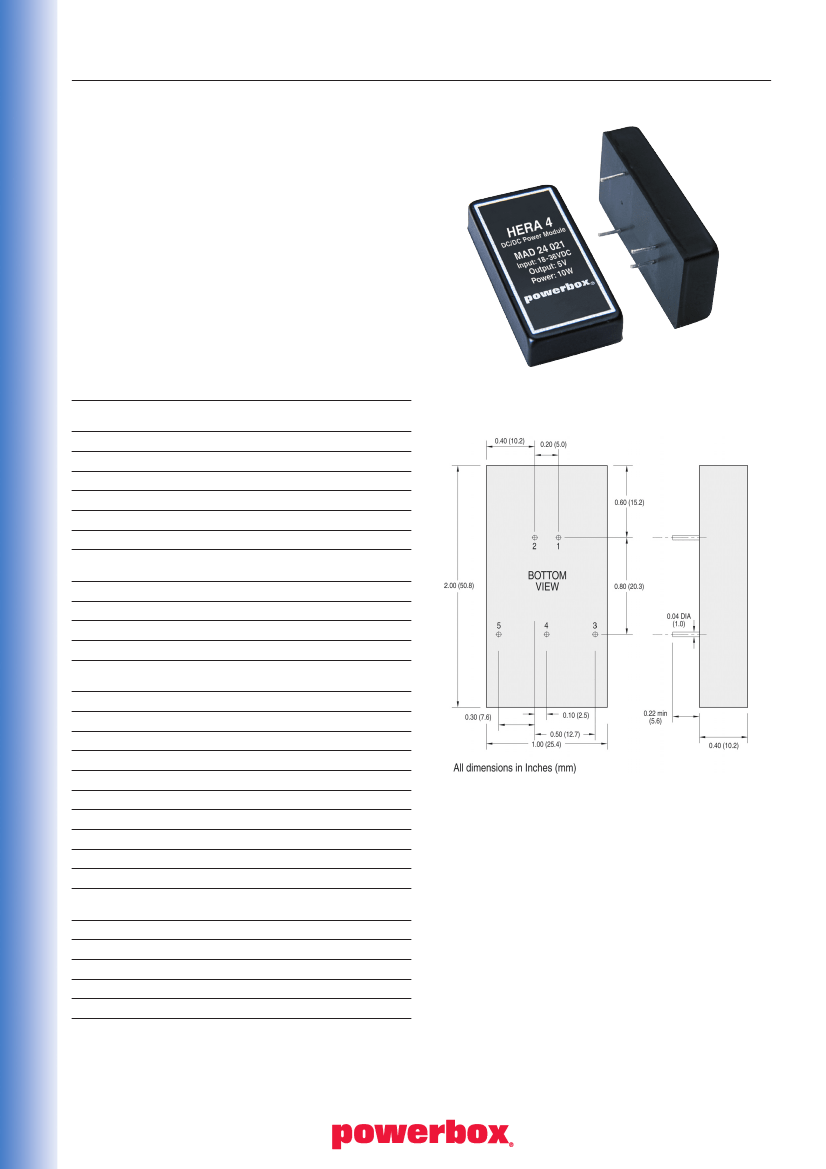

Technical Illustration
174
