MODULES
MAH 36 Series
2 5
W AT T S
S I N G L E
&
M U LT I
O U T P U T
D C / D C
I N D U S T R I A L
Features
•
•
•
•
•
4:1 Input range
Efficiency to 84 %
200 kHz switching frequency
500 VDC isolation
Six-sided shield
Specifications
INPUT
Nominal voltage
Voltage range
Isolation
Filter
OUTPUT
Power
Regulation
25W and 30W.
Line:Single, dual ±0.2%, triple ±1.0%
Load:Single, dual ±1.0%, triple ±5.0%.
25% min load is required to meet specification.
<480µs.
Single:±1%.
Dual:+output ±1%, -output ±3%.
Triple:5V ±1%, 12/15V ±5%, -5V ±2%.
Max. 75 mVp-p.
Fold-back. Approx 80% of output current at
short circuit.
±0.02 %/°C.
77% to 85%.
–25°C to +71°C.
–55°C to +105°C.
Convection.
200 000 hours at 25°C ambient.
Min. 250 kHz.
1000 pF.
Black coated copper with non-conductive base.
21.1 x 65.0 x 76.2 mm.
180g.
AS/NZS CISPR11 Group 1 Class A
12V, 24V, 48V.
9-36V, 18-72V.
500VDC.
PI-type

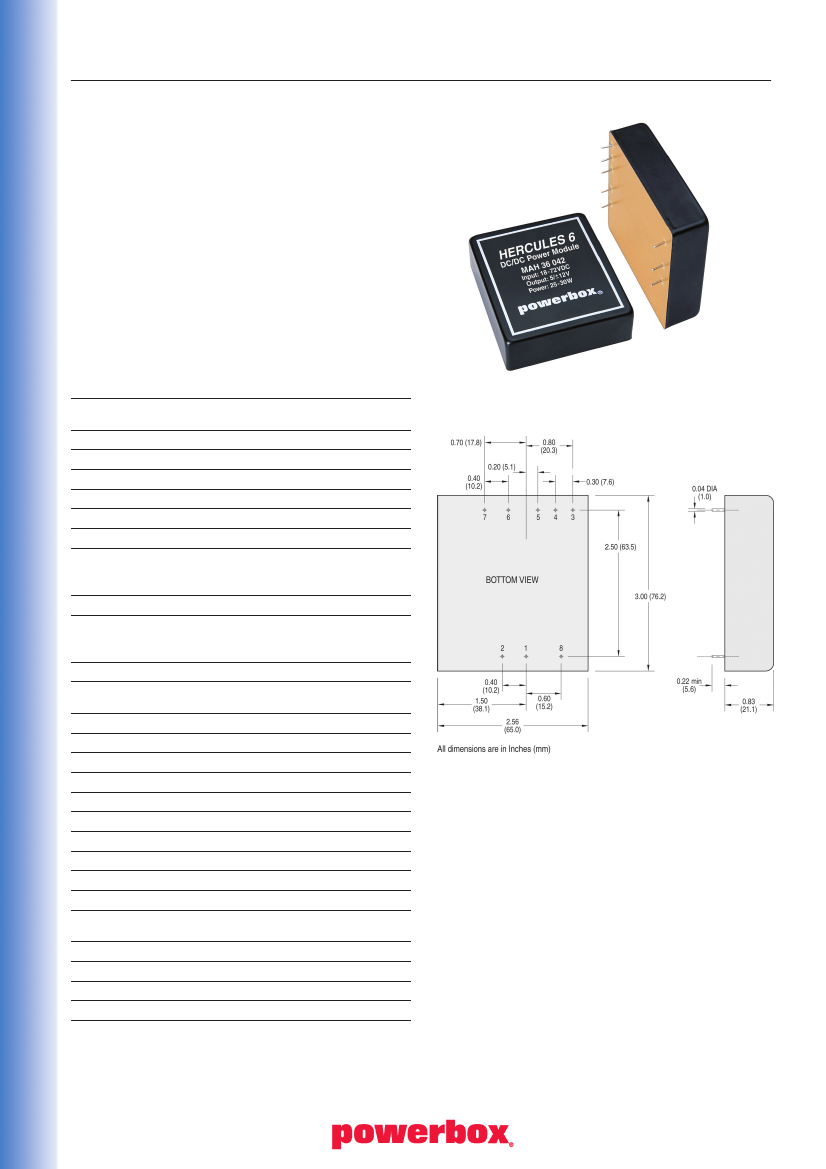

Technical Illustration
Load transient response
Setting accuracy
Ripple and noise
Short circuit protection
Temp coefficient
Efficiency
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
GENERAL
MTTF
Switching frequency
Equivalent capacitance
Case
Dimensions (H x W x L)
Weight
STANDARDS
C-Tick
186
MAH 36 Series
2 5
W AT T S
S I N G L E
&
M U LT I
O U T P U T
D C / D C
I N D U S T R I A L
MODULES
Selection Table
POWERBOX
ARTICLE
NUMBER
MAH 36 003
MAH 36 006
MAH 36 009
MAH 36 012
MAH 36 015
MAH 36 018
MAH 36 021
MAH 36 024
MAH 36 027
MAH 36 030
MAH 36 033
MAH 36 036
MAH 36 039
MAH 36 042
MAH 36 045
MAH 36 048
INPUT
VOLTAGE
VDC
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
OUTPUT
VOLTAGE
VDC
5
12
15
±12
±15
5/±12
5/±15
+5/+12/-5
5
12
15
±12
±15
5/±12
5/±15
+5/+12/-5
OUTPUT
CURRENT
mA
5000
2500
2000
1250
1000
3000/625
3000/500
3000/600/1000
5000
2500
2000
1250
1000
3000/625
3000/500
3000/600/1000
INPUT CURRENT
NO LOAD
mA
20
20
20
25
25
25
25
25
15
15
15
20
20
20
20
20
INPUT CURRENT
FULL LOAD
mA
1350
1560
1560
1560
1560
1650
1650
1450
670
770
770
750
750
790
780
725
PIN CONNECTION
PIN
1
2
3
4
5
6
7
8
NP = No pin.
SINGLE
OUTPUT
+V Input
- V Input
+Sense
Output trim
-Sense
+V Output
-V Output
DUAL
OUTPUT
+V Input
-V Input
+V Output
Common
-V Output
NP
NP
Remote On/Off Control
TRIPLE
OUTPUT
+V Input
-V Input
+V Output
Common
-V Output
+5V Output
NP
REMOTE ON/OFF CONTROL
Logic compatibility
CMOS or open collector TTL
Output-On
Output-Off
Shutdown idle current
Input resistance
Control common
>5.5VDC or open circuit
<1.8VDC
10mA
100K ohms (Ein 0 to 9VDC)
Referenced to input minus

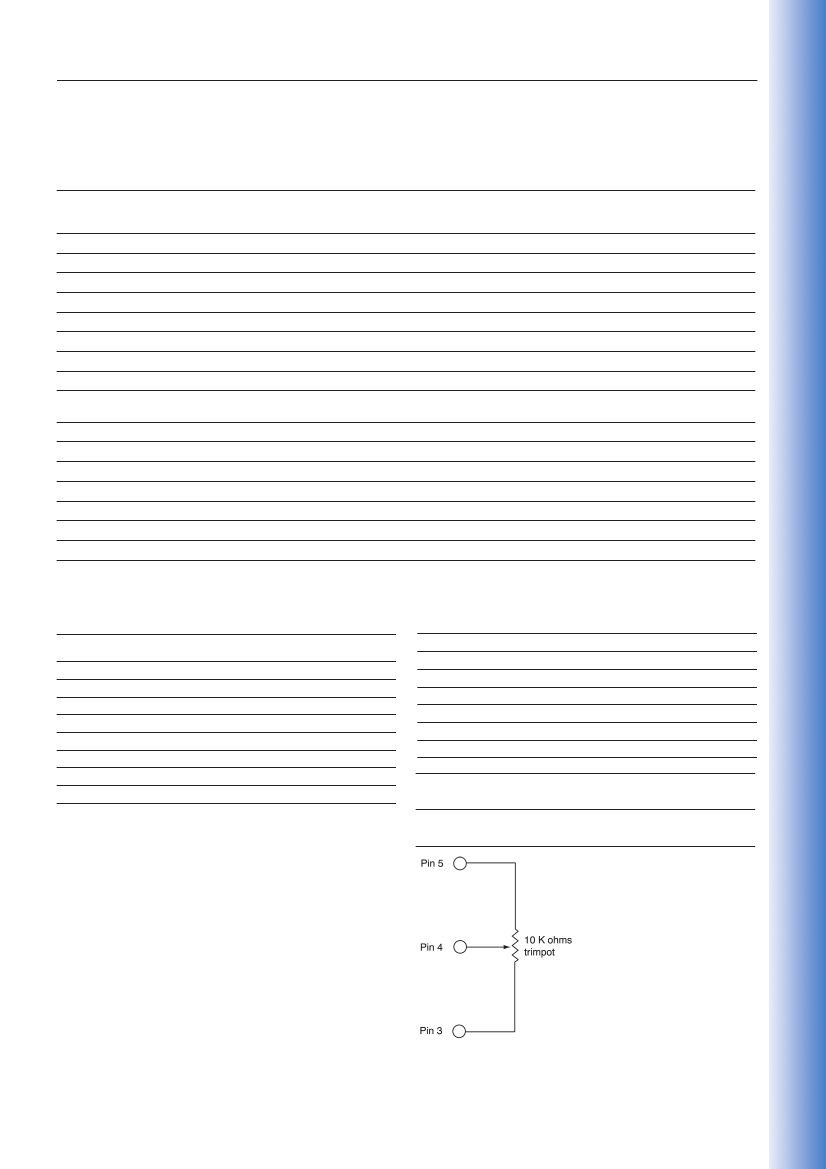

EXTERNAL OUTPUT TRIMMING
Output may optionally be externally trimmed (±10%) with a fixed resistor
or an external trimpot as shown.
Your dependable power partner – www.powerbox.com.au
187
