MI-261-MX: Description1-OUTPUT 75 W DC-DC REG PWR SUPPLY MODULE; Categoryaccessories; File Size711KB，1 Pages; ManufacturerPowerbox; Websitehttps://www.powerbox.com

Download Datasheet View All

MI-261-MX Overview

1-OUTPUT 75 W DC-DC REG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

MEDICAL & MILITARY

MI-200

Series

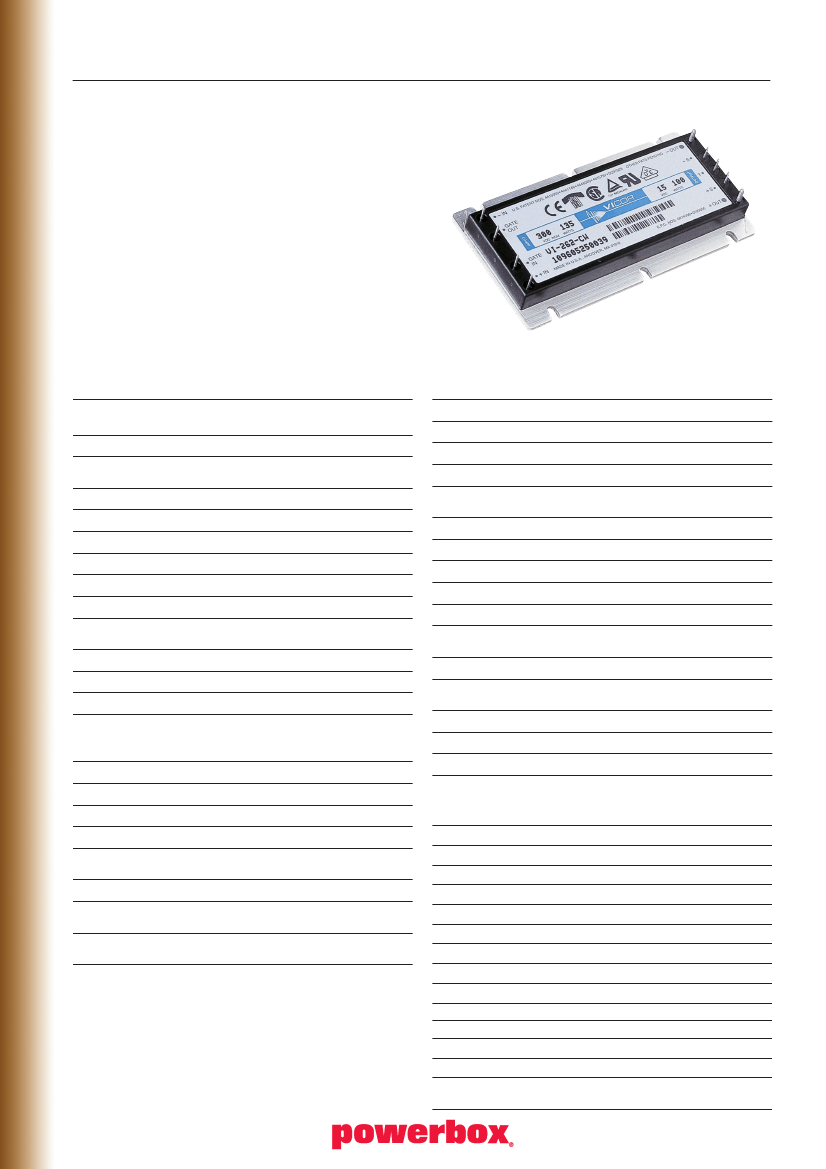

5 0 - 1 0 0 W AT T S M I L I TA R Y C O T S D C / D C C O N V E R T E R

Features

•

28Vdc Inputs per MIL-STD-704D/E/F

155Vdc Inputs per MIL-STD-1399A

270Vdc Inputs per MIL-STD-704D/E/F

MIL-STD-810 environments

OVP and Thermal shutdown

Power boosters for higher power

Low noise FM control

Specifications

INPUT

Input Voltage

No Load Power Dissipation

See input voltage chart

Typ 1.35W

STANDARDS AND APPROVALS

Environment (MIL-STD-8100)

Altitude – Method 500.2

Humidity – Method 507.2

Acceleration – Method 513.3

0.5% V nom typical

0.05% V nom typical. 10% to full load

0.01%/°C

1%pp V nom

50% - 110%

0.5 V

105% - 125%

20% - 130%

Vibration – Method 514.3

Shock – Method 516.3

Reliability (MIL-HDBK-217F)

25°C Ground Benign

50°C Naval Sheltered

65°C Airborne inhabited

cargo

Derating

C-Tick

3,277,000 hours

1,999,000 hours

1,540,000 hours

NAVMAT P-4855-1A

AS/NZS2064:1997 Group 1 Class AEMC filters

supplied with some models

70,000 feet

86/240 (% /hours)

9 g’s

20g’s

40g’s

OUTPUT

Set point accuracy

Load/Line regulation

Output temperature drift

Output noise

Output Voltage Trimming

Remote Sense Compensation

Current limit

Short Circuit Current

OPERATING

Isolation

Input - Output 3,000Vrms

Output to Baseplate 500Vrms

Input to Baseplate 1,500Vrms

80 – 90%

MECHANICAL

Weight

Dimensions

170 grams

116.8 x 61 x 12.7mm

Efficiency

ENVIRONMENTAL

I Grade

Storage Temperature

Operating Temperature

(baseplate)

Power Cycling Burn-in

Temperature Cycled

With Power off

Test Data Supplied at these

temperature

-55°C to +100°C

-40°C to +85°C

12hrs 25 cycles

48 hrs, 12cycles

-65°C to +100°C

-40°C to +80°C

M Grade

-65°C to +100°C

-55°C to +85VC

96hrs 200 cycles

48hrs, 12cycles

-65°C to +100°C

-55°C to +80°C

Selection Table

MI-2(A)(B)-(C)(D)

A = INPUT VOLTAGE

VNOM

RANGE

TRANS.

B = OUTPUT VOLTAGE

2= 28V

18–50V (1)

60V

230V

Z=2V

Y= 3.3V

0= 5V

X= 5.2V

V= 5.8V

T = 6.5V

2 = 15V

K = 40V

J = 48V

5= 155V 100–210V

R = 7.5V N = 18.5V

M = 10V

1 = 12V

3 = 24V

L = 28V

6= 270V 125–400V (2) 475V

7= 165V 100–310V

P = 13.8V J = 36V

Note: For Technical Illustration refer to page 230 in Module Section

C = PRODUCT GRADE

D = OUTPUT POWER/CURRENT

I= -40°C to +85°C

M=-55°C to +85°C

Y = 50W

X = 75W

V= –

<5V

Y = 10A

X = 15A

V = 30A

W = 100W W = 20A

Note :(1) 16V operation at 75% load. (2) These units rated at 75% load from

125-150Vin: MI-26Z-XV, MI-26Y-XV, MI-260-XW.
