November 4
th
2003
TMX T012
SAW B
ANDPASS
F
ILTER
– PCS 1900 – R
X
RF
Preliminary Specification (Rev. 1)
Operating Temperature range : [-30°C ; +85°C]
Electrical Parameters
Source Impedance (single ended)
Load Impedance (balanced)
Center Frequency fo
Absolute Attenuation
300 KHz to 1880 MHz
1880 MHz to 1910 MHz
2040 MHz to 2200 MHz
2200 MHz to 2800 MHz
2800 MHz to 3400 MHz
3400 MHz to 6000 MHz
Maximum Insertion Loss in 1930 -1990 MHz
Amplitude Variation in 1930 -1990 MHz
Input VSWR in 1930 -1990 MHz
Output VSWR 1930 -1990 MHz
Amplitude Imbalance in 1930 -1990 MHz
(4)
(4)
(3)
Unit
Ω
Ω
MHz
Minimum
-
-
-
Typical
50
100
(2)
(1)
Maximum
-
-
-
1960
dB
dB
dB
dB
dB
dB
dB
dB
-
-
dB
deg
dBm
40
22
30
35
35
35
-
-
-
-
-
-
-
45
29
35
40
42
40
2.8
1.5
1.9:1
1.9:1
±0.7
±6.0
-
-
-
-
-
-
-
4.0
2.7
2.2:1
2.3:1
±
1.5
±
12
10
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
Phase Imbalance in 1930 -1990 MHz MHz
Input Power : CW in US-PCS Tx band
Package type & size
Length x Width
Height
Pin Out
Input
Case Ground
Notes :
(1)
(2)
(3)
(4)
mm²
mm
-
-
2 x 1.4
0.75
-
0.82
1
2,5
Output
To Be
Grounded
3,4
2,5
Typical values are nominal performances at room temperature
No matching circuit is required
The amplitude variation is defined as the maximum level – minimum level over the given bandwidth
The output balance is defined as the S parameters ratio -(S
31
/ S
21
), where the port 1 is the input port and the ports 2 and 3 are
the balanced output. Port 1 is loaded on 50
Ω
, while ports 2 and 3 are loaded on 50
Ω
each
1
November 4
th
2003
TMX T012
SAW B
ANDPASS
F
ILTER
– PCS 1900 – R
X
RF
Preliminary Specification (Rev. 1)
Operating Temperature range : [ +25 °C ±2 °C]
Electrical Parameters
Source Impedance (single ended)
Load Impedance (balanced)
Center Frequency fo
Absolute Attenuation
300 KHz to 1880 MHz
1880 MHz to 1910 MHz
2040 MHz to 2200 MHz
2200 MHz to 2800 MHz
2800 MHz to 3400 MHz
3400 MHz to 6000 MHz
Maximum Insertion Loss in 1930 -1990 MHz
Amplitude Variation in 1930 -1990 MHz
Input VSWR in 1930 -1990 MHz
Output VSWR 1930 -1990 MHz
Amplitude Imbalance in 1930 -1990 MHz
(4)
(4)
(3)
Unit
Ω
Ω
MHz
Minimum
-
-
-
Typical
50
100
(2)
(1)
Maximum
-
-
-
1960
dB
dB
dB
dB
dB
dB
dB
dB
-
-
dB
deg
dBm
40
26
30
35
35
35
-
-
-
-
-
-
-
45
29
35
40
42
40
2.8
1.5
1.9:1
1.9:1
±0.7
±6.0
-
-
-
-
-
-
-
3.0
1.8
2.0:1
2.1:1
±
1.5
±
12
10
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
Phase Imbalance in 1930 -1990 MHz MHz
Input Power : CW in US-PCS Tx band
Package type & size
Length x Width
Height
Pin Out
Input
Case Ground
mm²
mm
-
-
2 x 1.4
0.75
-
0.82
1
2,5
Output
To Be
Grounded
3,4
2,5
Notes :
(1)
Typical values are nominal performances at room temperature
(2)
No matching circuit is required
(3)
The amplitude variation is defined as the maximum level – minimum level over the given bandwidth
(4) The output balance is defined as the S parameters ratio -(S
31
/ S
21
), where the port 1 is the input port and the ports 2 and 3 are
the balanced output. Port 1 is loaded on 50
Ω
, while ports 2 and 3 are loaded on 50
Ω
each
2
November 4
th
2003
TMX T012
SAW B
ANDPASS
F
ILTER
– PCS 1900 – R
X
RF
Preliminary Specification (Rev. 1)

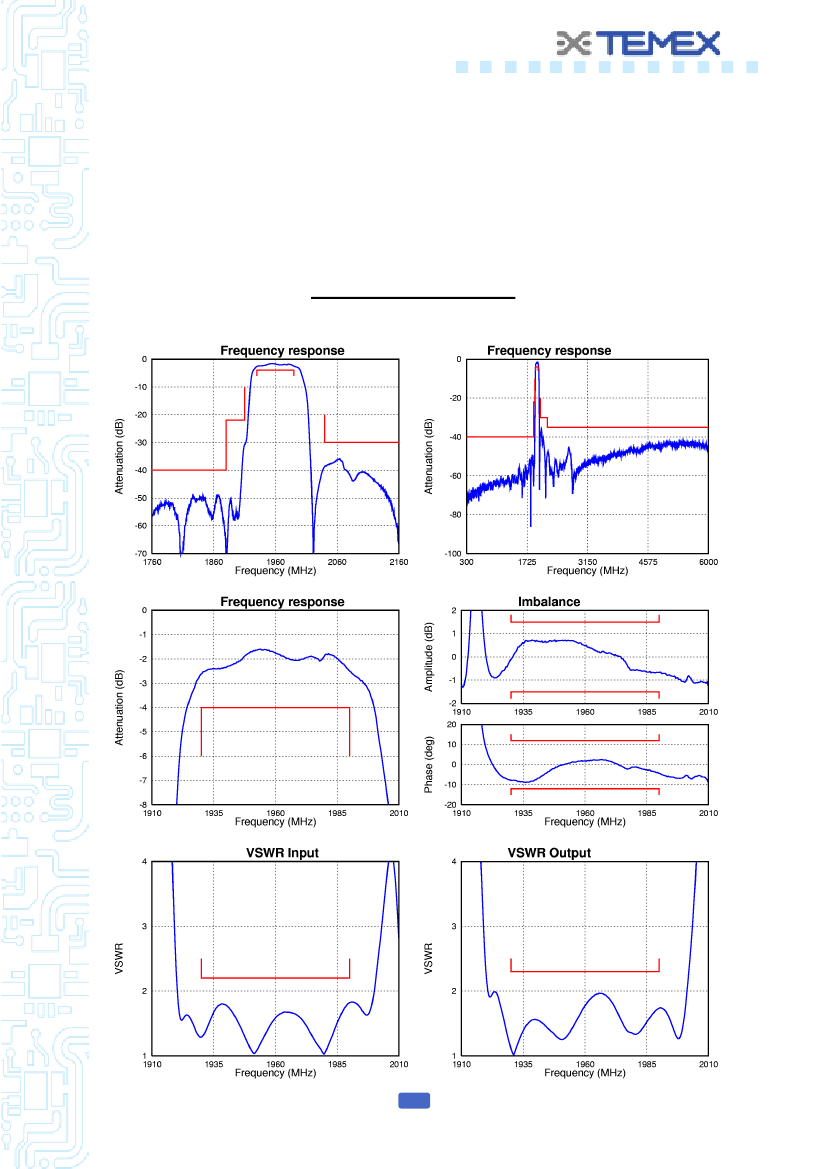

T
YPICAL
S21 R
ESPONSE
The template indicated is linked to the specification over [-30; +85°C] temperature range.
3
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
November 4
th
2003
TMX T012
SAW B
ANDPASS
F
ILTER
– PCS 1900 – R
X
RF
Preliminary Specification (Rev. 1)

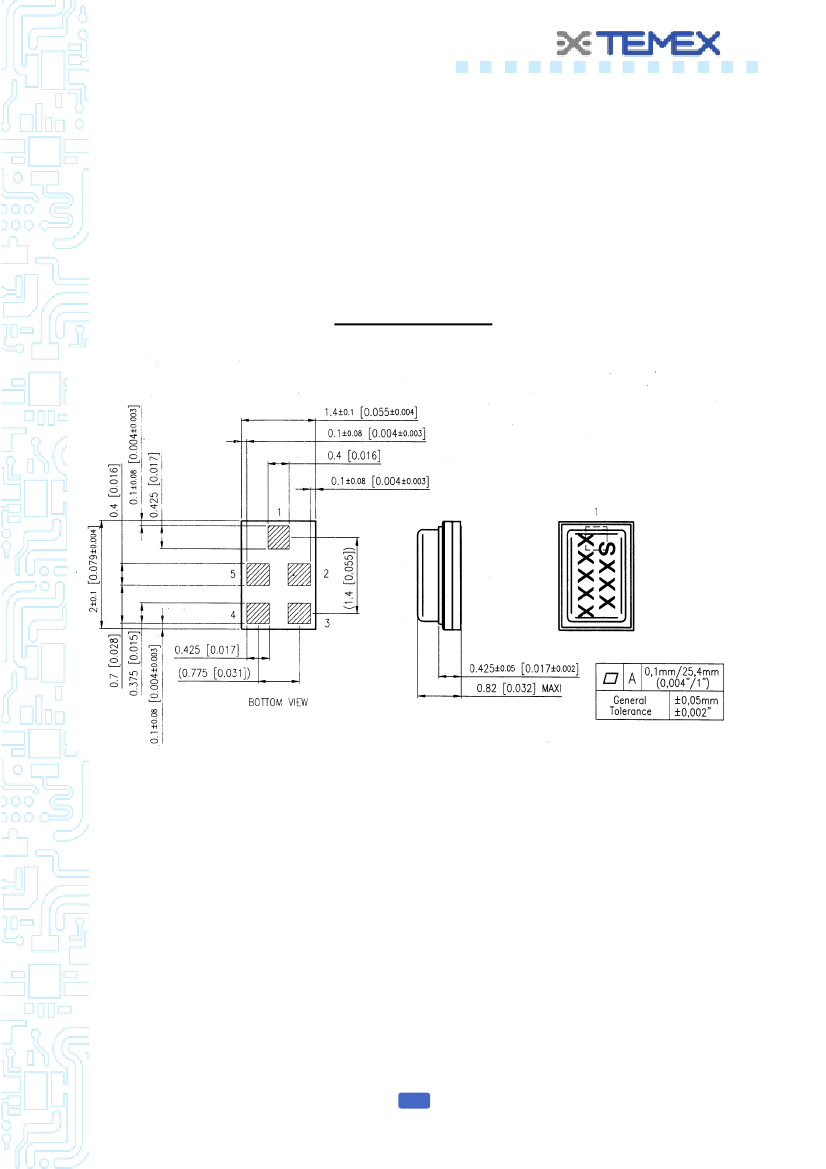

P
ACKAGE DRAWING
4
TEMEX reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
