CY7C182-20VCR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C182-20VCR

CY7C182-20VCR: DescriptionCache SRAM, 8KX9, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28; Categorystorage storage; File Size146KB，5 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C182-20VCR Overview

Cache SRAM, 8KX9, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28

CY7C182-20VCR Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	20 ns
Other features	AUTOMATIC POWER-DOWN
JESD-30 code	R-PDSO-J28
length	17.907 mm
memory density	73728 bit
Memory IC Type	CACHE SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.556 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

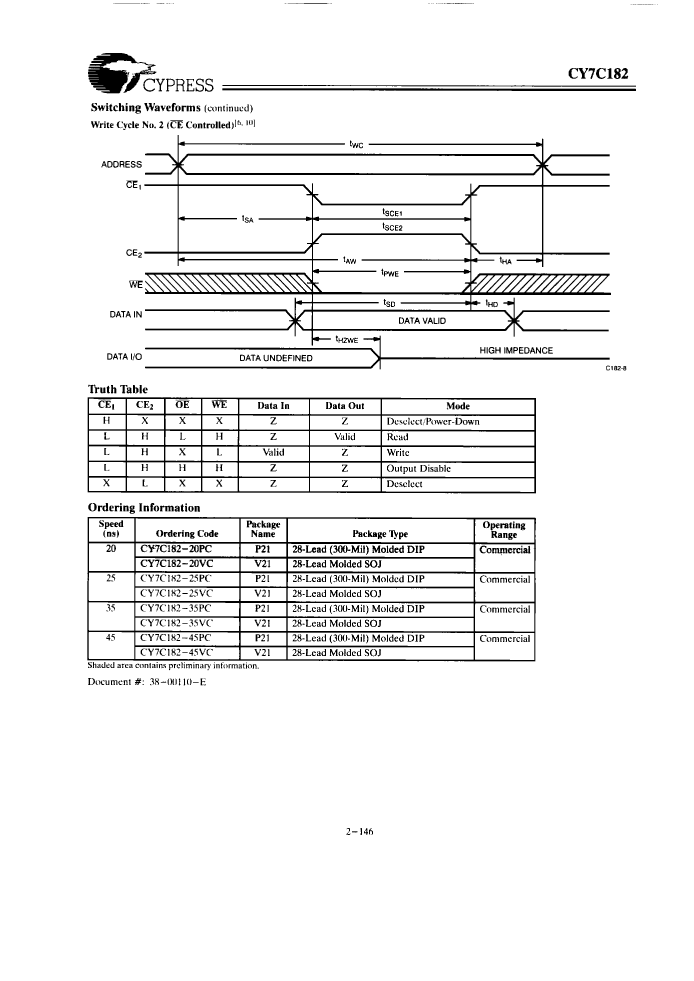

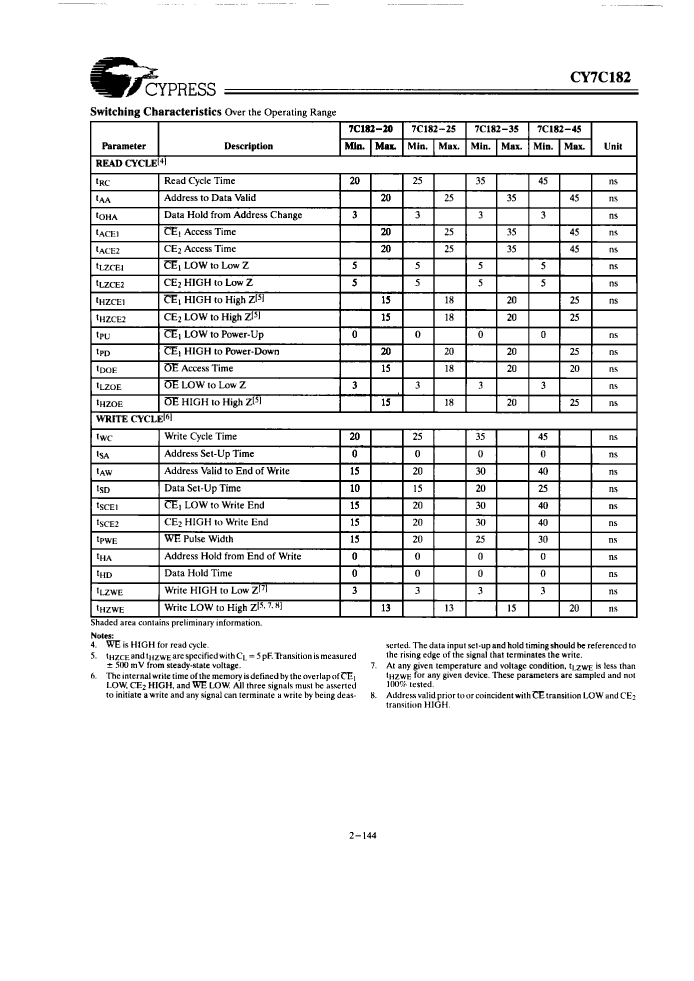

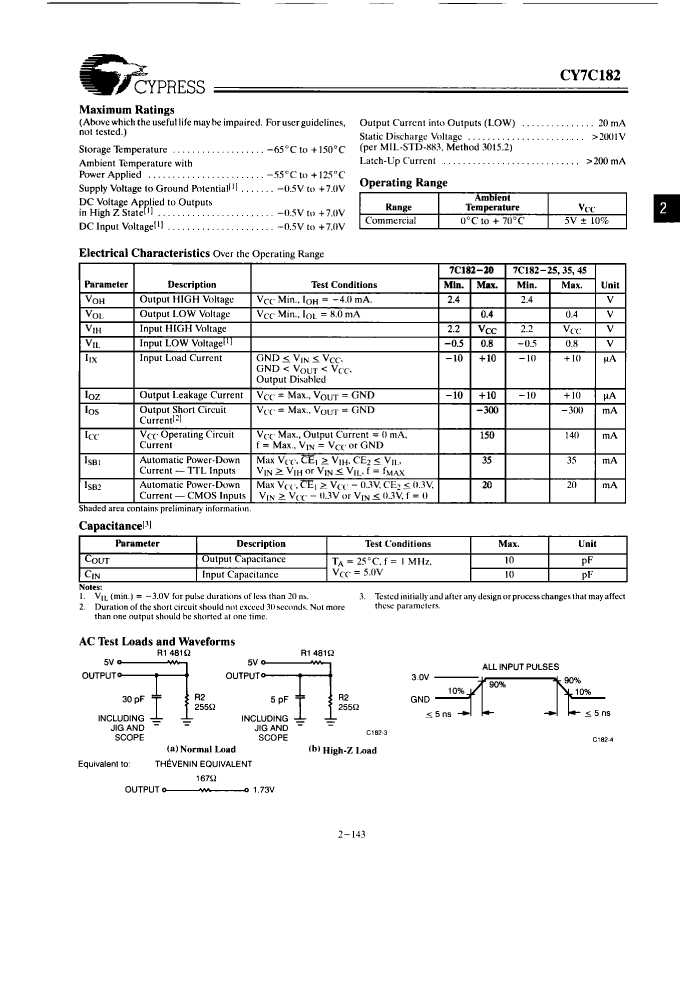

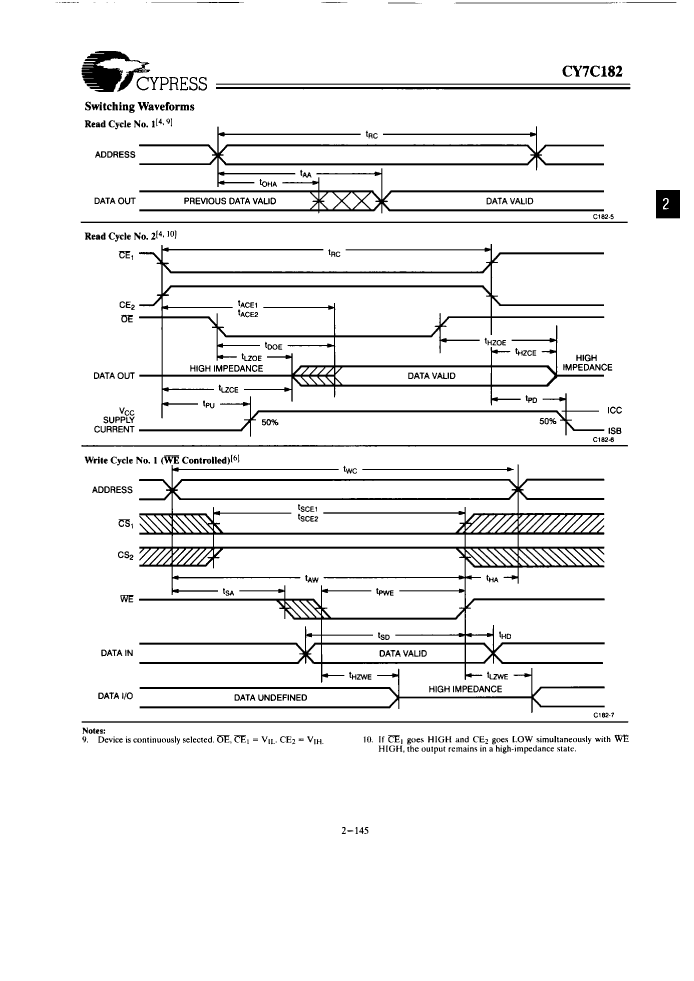

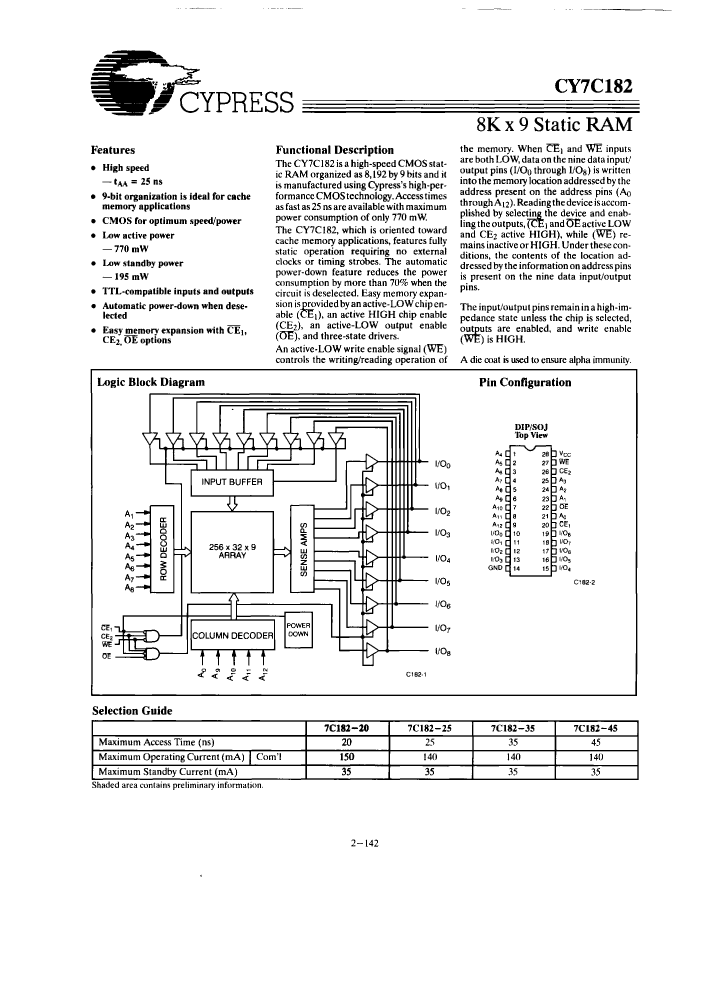

Preview

Download Datasheet

View All

CY7C182-20VCR Related Products

	CY7C182-20VCR	CY7C182-25VCR	CY7C182-35VCR	CY7C182-45VCR	CY7C182-20VCT
Description	Cache SRAM, 8KX9, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Cache SRAM, 8KX9, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Cache SRAM, 8KX9, 35ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Cache SRAM, 8KX9, 45ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Cache SRAM, 8KX9, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,
Contacts	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	20 ns	25 ns	35 ns	45 ns	20 ns
Other features	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
length	17.907 mm	17.907 mm	17.907 mm	17.907 mm	17.907 mm
memory density	73728 bit	73728 bit	73728 bit	73728 bit	73728 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	9	9	9	9	9
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX9	8KX9	8KX9	8KX9	8KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Maker	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
