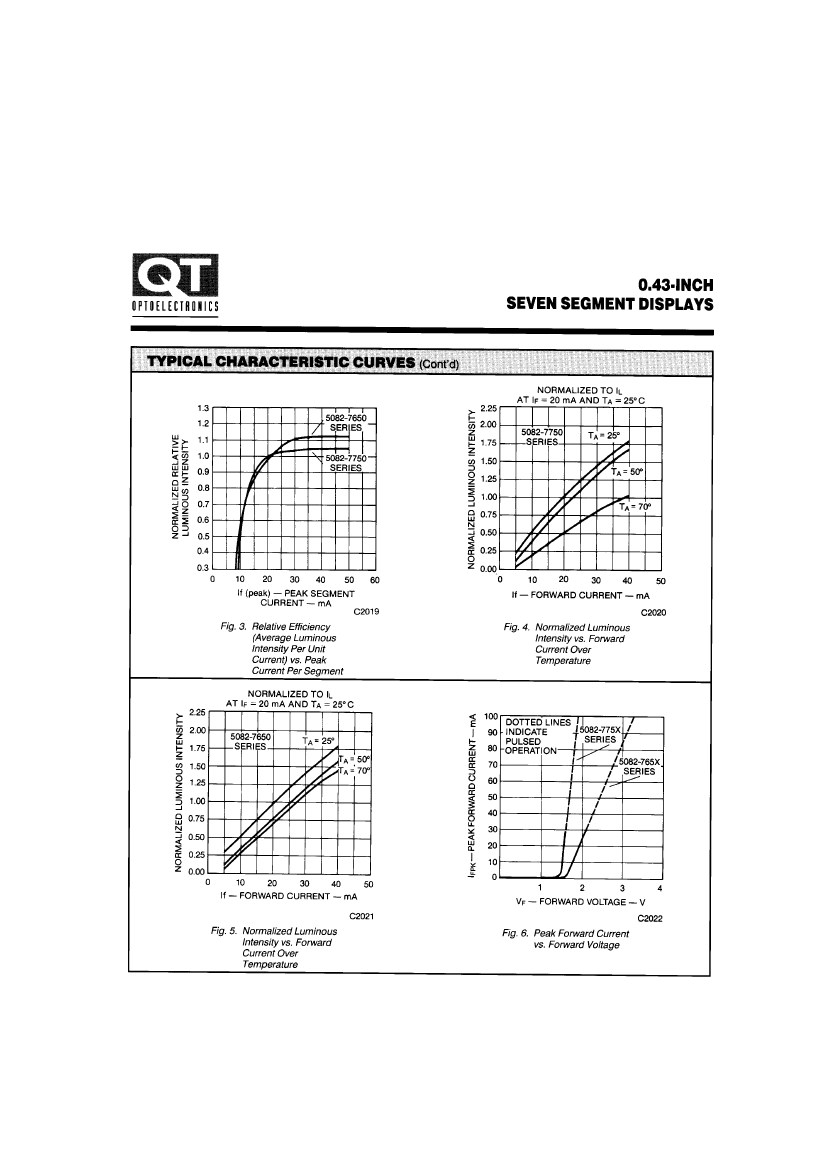

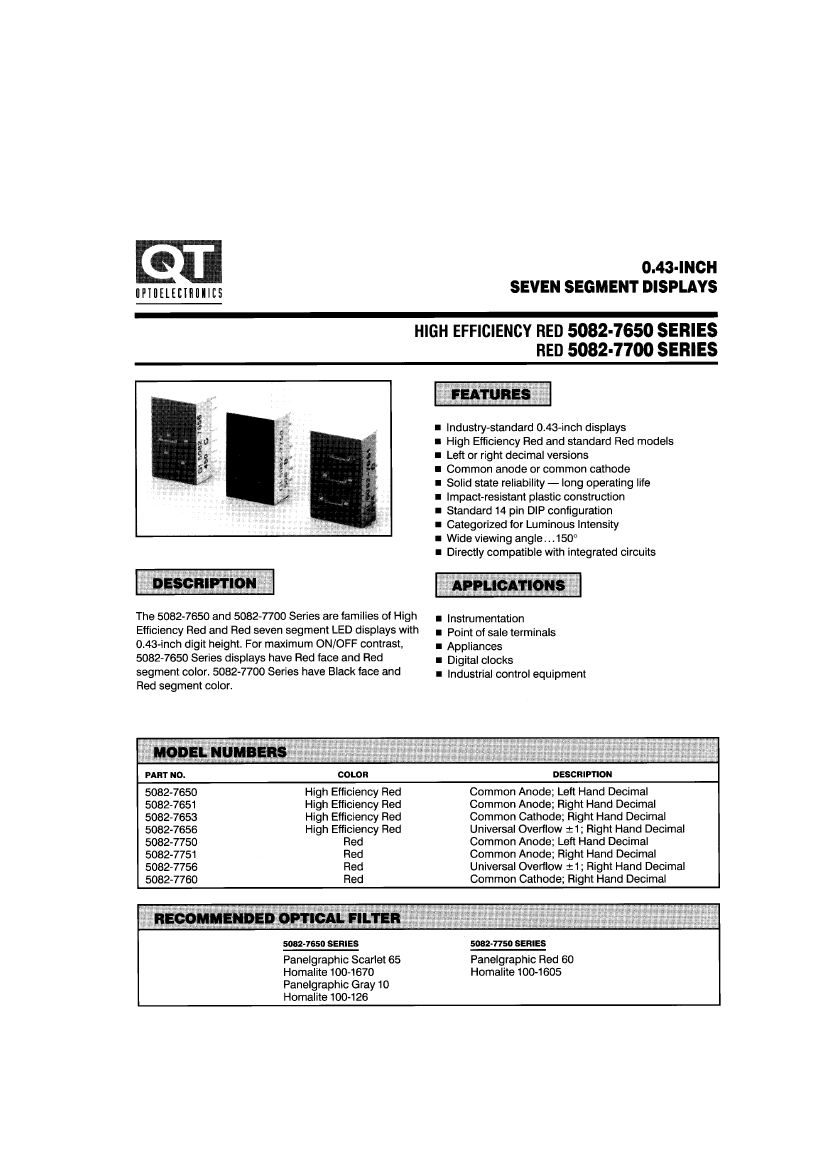

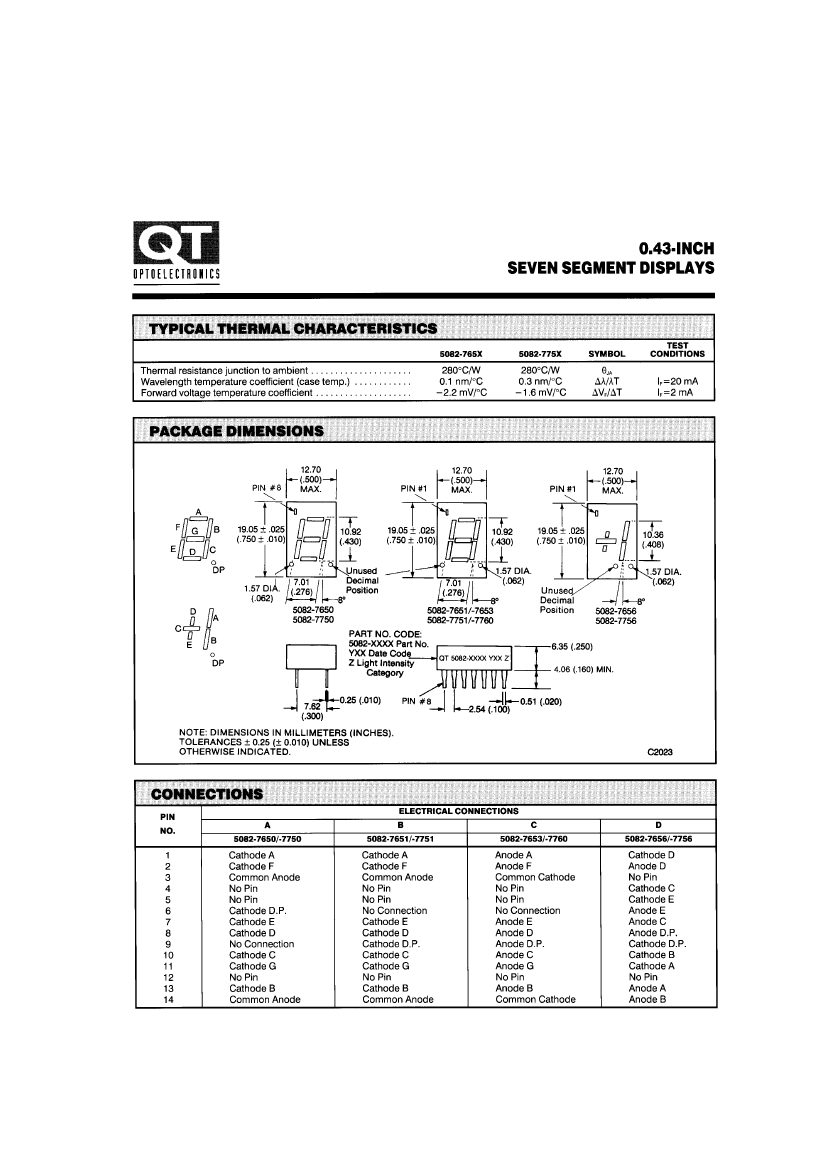

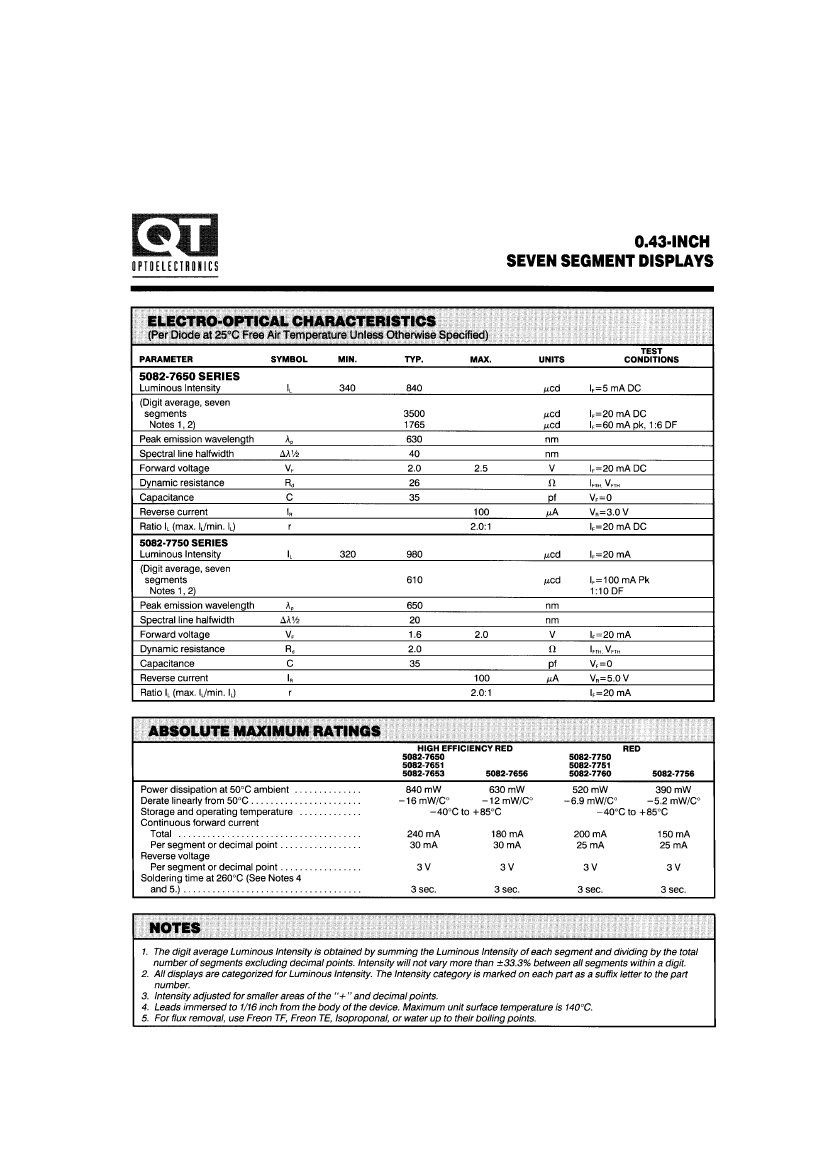

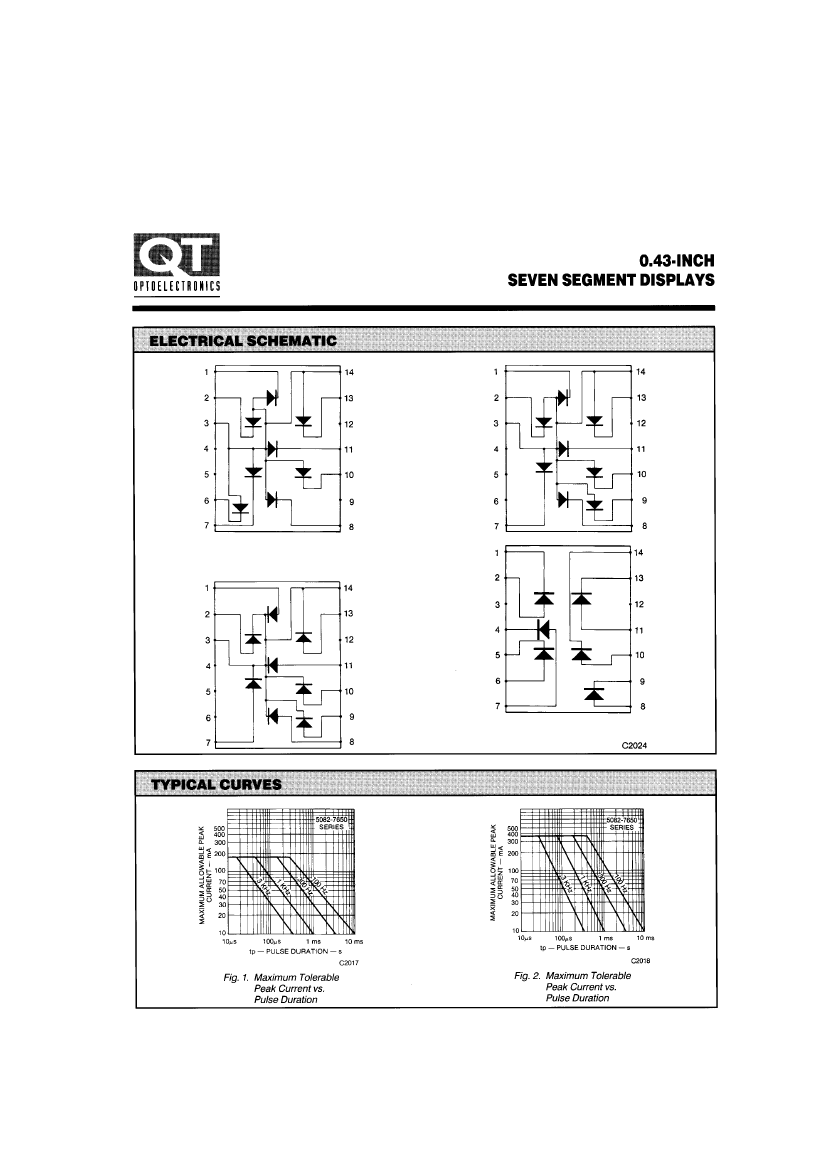

Preview

5082-7760: Description7 SEG NUMERIC DISPLAY, RED, 10.92 mm; CategoryLED optoelectronic/LED photoelectric; File Size527KB，5 Pages; ManufacturerQT Optoelectronics

Download Datasheet Parametric Compare View All

5082-7760 Overview

7 SEG NUMERIC DISPLAY, RED, 10.92 mm

5082-7760 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP-14
Reach Compliance Code	unknow
color	RED
color@wavelength	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	10.922 mm
Maximum forward current	0.025 A
Maximum forward voltage	2 V
JESD-609 code	e0
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	655 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

5082-7760 Related Products

	5082-7760	5082-7650	5082-7651	5082-7653	5082-7656	5082-7750	5082-7751	5082-7756
Description	7 SEG NUMERIC DISPLAY, RED, 10.92 mm	DS90LV032A 3V LVDS Quad CMOS Differential Line Receiver; Package: SOIC NARROW; No of Pins: 16; Qty per Container: 48; Container: Rail	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 10.92 mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 10.92 mm	DS90LV032A 3V LVDS Quad CMOS Differential Line Receiver; Package: SOIC NARROW; No of Pins: 16; Qty per Container: 48; Container: Rail	7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display	7 SEG NUMERIC DISPLAY, RED, 10.92 mm	DS90LV032A 3V LVDS Quad CMOS Differential Line Receiver; Package: SOIC NARROW; No of Pins: 16; Qty per Container: 48; Container: Rail
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP-14	DIP-14	DIP-14	DIP-14	DIP-14	DIP-14	DIP-14	DIP-14
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow	unknow	unknow
color	RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	RED	RED	RED
color@wavelength	Red	Red	Red	Red	Red	Red	Red	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT
Display height	10.922 mm	10.922 mm	10.922 mm	10.922 mm	10.922 mm	10.922 mm	10.922 mm	10.922 mm
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.025 A	0.025 A
Maximum forward voltage	2 V	2.5 V	2.5 V	2.5 V	2.5 V	2 V	2 V	2 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	0.5	1	1	0.5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	655 nm	635 nm	635 nm	635 nm	635 nm	655 nm	655 nm	655 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	1	1
Number of characters	1	1	1	1	-	1	1	-
