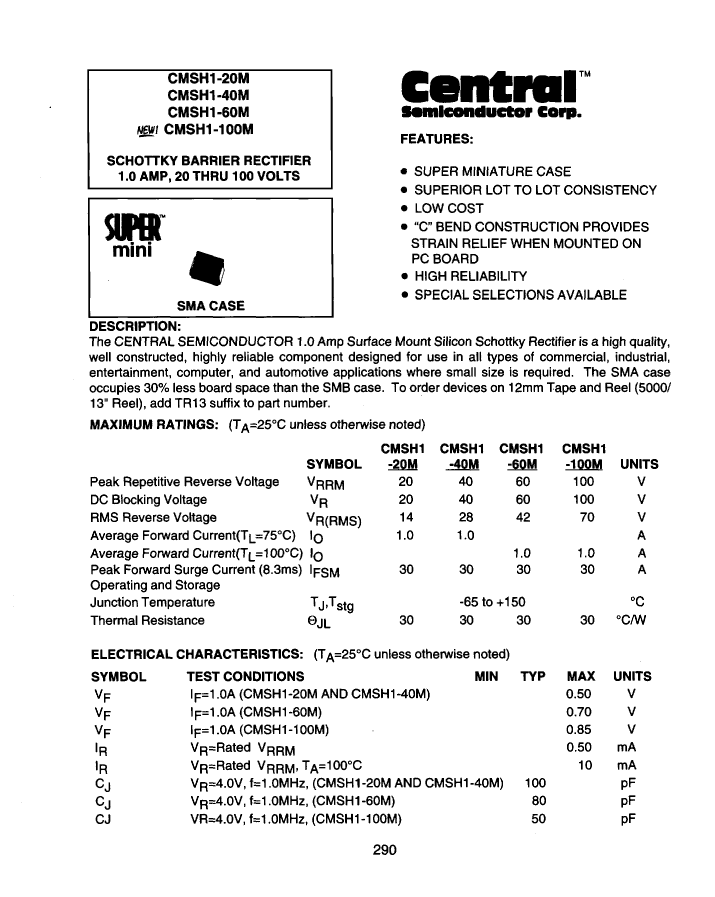

CMSH1-100MBKLEADFREE: DescriptionRectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, SUPERMINI-2; CategoryDiscrete semiconductor diode; File Size44KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMSH1-100MBKLEADFREE Overview

Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, SUPERMINI-2

CMSH1-100MBKLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	SMA, SUPERMINI-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

CMSH1-100MBKLEADFREE Related Products

	CMSH1-100MBKLEADFREE	CMSH1-40MBK	CMSH1-40MBKLEADFREE	CMSH1-100MBK	CMSH1-60MBK	CMSH1-60MBKLEADFREE	CMSH1-20MBKLEADFREE	CMSH1-20MBK
Description	Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, SMA, SUPERMINI-2	Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, SMA, SUPERMINI-2
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	conform to	conform to	incompatible
package instruction	SMA, SUPERMINI-2	SMA, SUPERMINI-2	SMA, SUPERMINI-2	SMA, SUPERMINI-2	SMA, SUPERMINI-2	SMA, SUPERMINI-2	R-PDSO-C2	SMA, SUPERMINI-2
Contacts	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	not_compliant	not_compliant	not_compliant	unknown	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.5 V	0.5 V	0.85 V	0.7 V	0.7 V	0.5 V	0.5 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e0	e3	e0	e0	e3	e3	e0
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	40 V	40 V	100 V	60 V	60 V	20 V	20 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN	TIN LEAD	Matte Tin (Sn)	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Central Semiconductor	-	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
