PCB
Connectors
Series 79 Micro-Crimp
Section G: Right Angle Printed Circuit Board Connectors
RECEPtACLES WIth PIN CoNtACtS, RIGht ANGLE PCB tERMINAtIoN, 790-041P
A
B
C
D
E
F
G
H
INDEX
INDEX
SPECIFICATIONS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration

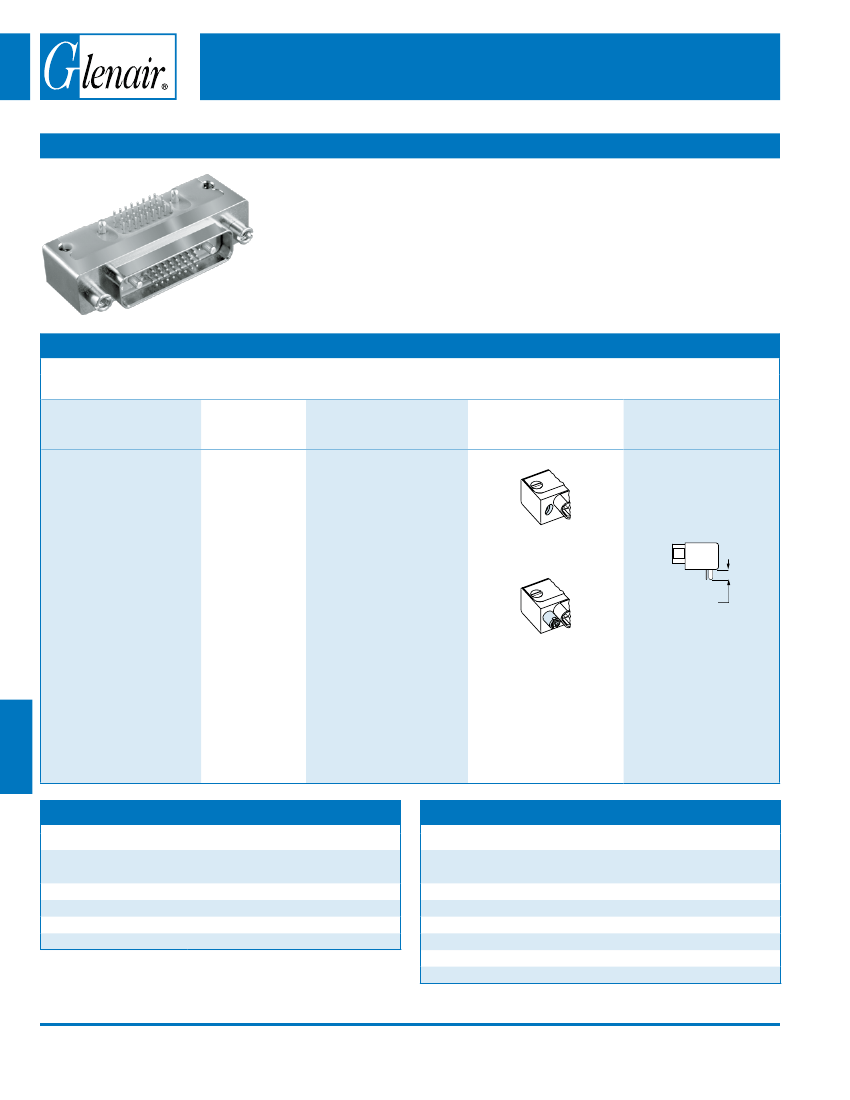

Lightweight, rugged right angle headers feature gold-plated contacts for thru-hole
printed circuit board termination. 790-041P connectors are free-standing (not for panel
mounting) and mate to 790-025S cable plugs. Contacts are permanently installed and
are sealed with epoxy. Shells are aluminum alloy. Threaded board mounting holes
and integral standoffs simplify installation. EMI shroud improves EMI performance.
Fluorosilicone face seal provides watertight interface. Available in 29 different contact
arrangements, these connectors feature size #23 signal contacts along with #16 and #12
power contacts for up to 23 amps current rating.
790-041P
Part Number
Header Receptacle
with 90° PC Tail Pin
Contacts for Termination
to Backplanes or Flexible
Circuits
J-25P2
Shell Size -
Insert Arr.
See Table 1 for
Available Insert
Arrangements
Sample Part Number
HOW TO ORDER
M
P
Hardware Option
A
PC Tail Length
.125 Inch (3.2 mm.)
.250 inch (6.4 mm.)
Shell Finish
Electroless Nickel
790-041P
M
A
B
general purpose applications
1000 Hour Grey™
maximum corrosion protection
and durability
(non-reflective grey)
Nickel-PTFE
MT
No Hardware
N
Zinc-Nickel with Black
Chromate
tactical applications
(non-reflective black)
ZNU
PC TAIL
LENGTH
Female Jackpost
P
Additional shell finishes are
listed on page C-9.
MATERIALS AND FINISHES
Shell
Contacts
Insulator
EMI Shroud
Interfacial Seal
Jackposts
Tray
Encapsulant
Aluminum alloy
Copper alloy, 50 microinches gold
plated
Liquid crystal polymer (LCP)
Aluminum alloy
Flourosilicone rubber
300 series stainless steel
Thermoplastic
Epoxy
Printed in U.S.A.
E-Mail: sales@glenair.com
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16
1800 VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
G-6
Series 79 Micro-Crimp
Section G: Right Angle Printed Circuit Board Connectors
Table 1 Contact Arrangements
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
5
9
19
4
3
9
13
15
3
2
2
SHELL
#23 #16 #12
5
2
Contact
Quantity

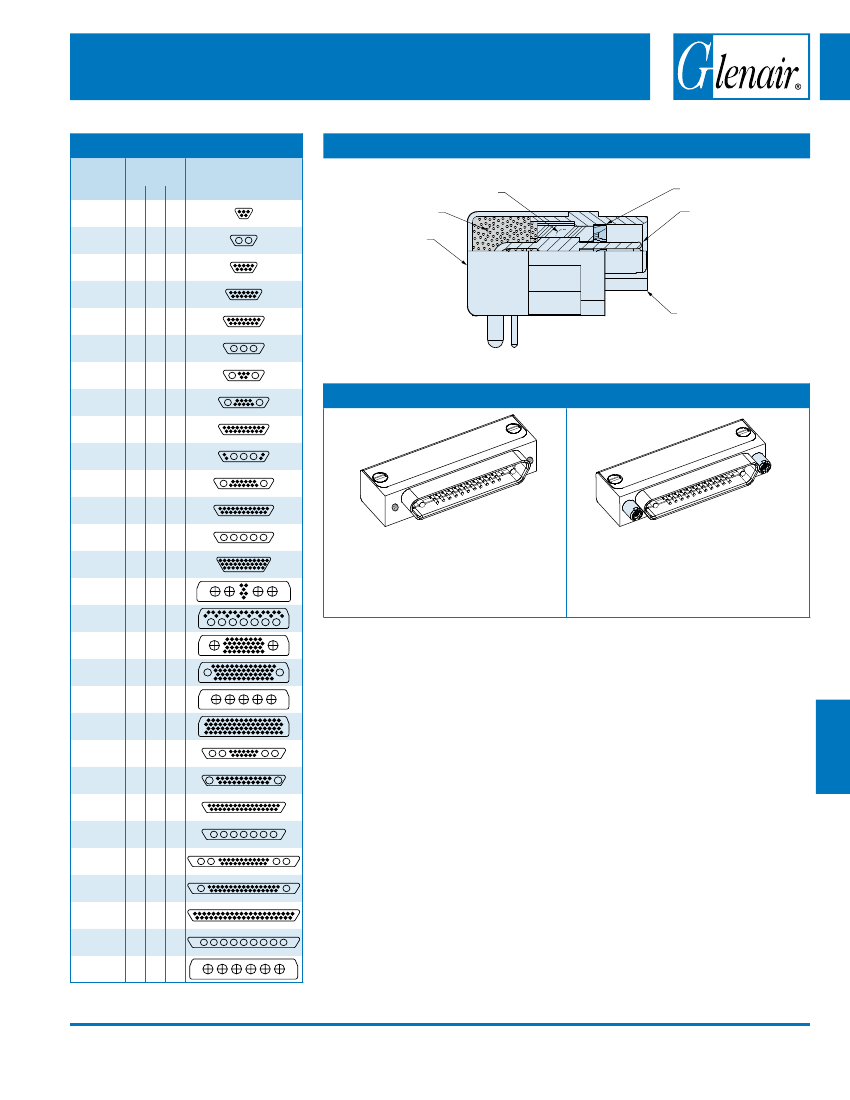

CRoSS-SECtIoNAL vIEW oF 790-041P
INSULATOR
EPOXY
EMI SHROUD
INTERFACIAL SEAL
PIN CONTACT
Face View
TABLE 2 HARDWARE OPTION
F-15P2
13 2
F-23
F-5P5
G-33
h-10P4
33
6
4
23
5
Connector is supplied with threaded holes. Shell
sizes H and L have #6-32 threads, other sizes have
#4-40 threads. Thread depth is .150" (3.8).
No Mating Hardware
N
Connector is supplied with non-removable
stainless steel jackposts. Shell sizes H and L have
#4-40 UNC thread, other sizes have #2-56 thread.
Jackposts
P
h-29P7
22
7
H-36P2
34
h-54P2
52
2
H-5P5
H-66
66
5
2
J-17P4
13
4
J-25P2
23 2
J-33
J-7P7
33
7
K-27P4
23
4
K-35P2
33 2
K-43
K-9P9
L-6P6
© 2009 Glenair, Inc.
www.glenair.com
43
9
6
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
G-7
PCB
Connectors
A
B
C
D
E
F
G
H
INDEX
INDEX
PCB
Connectors
Series 79 Micro-Crimp
Section G: Right Angle Printed Circuit Board Connectors

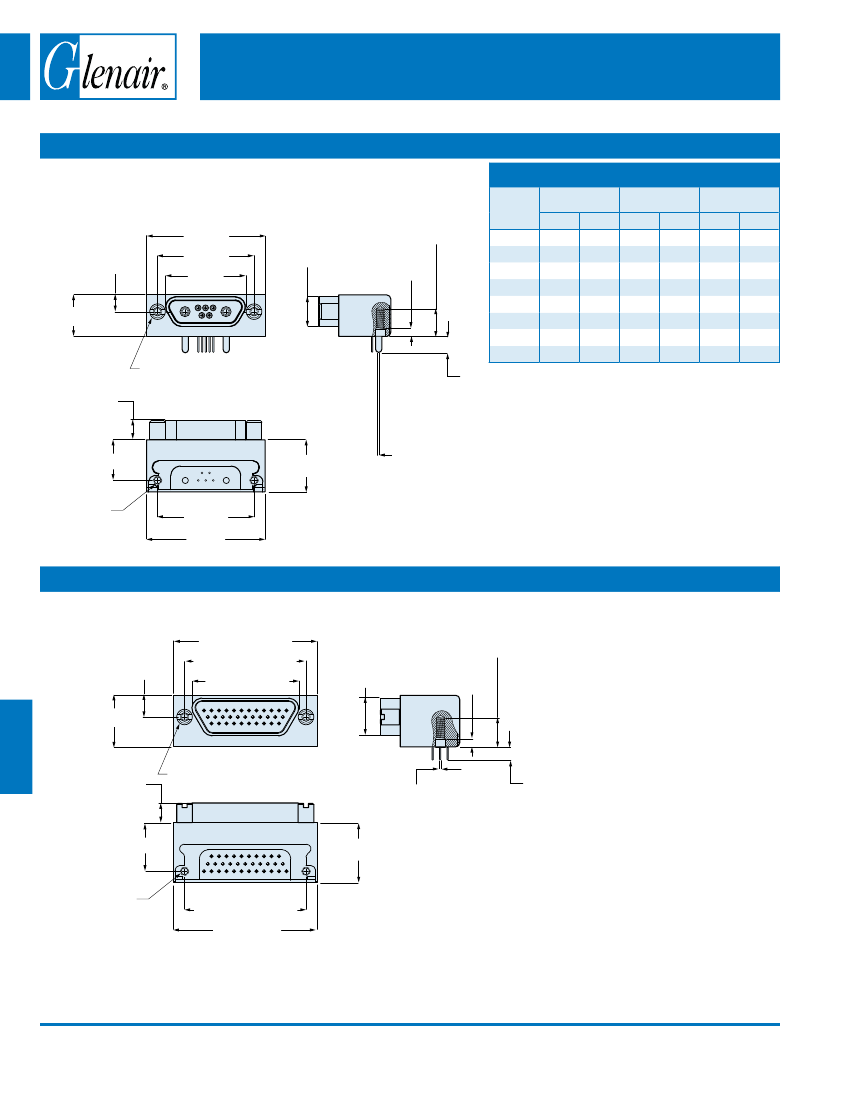

790-041P DIMENSIoNS: ShELL SIzES A-F, J, AND K
A
A MAX
790-041P ShELL SIzES A-F, J AND K
.228 (5.79)
MIN
.078 (1.98)
MIN
B
C
.167 (4.95)
B BASIC
C MAX
.308 (7.82)
MAX
.500 (12.70)
MAX
JACKPOST, #2-56
.195 (4.95)
Shell
Size
A
B
C
D
E
F
J
K
A Max.
In.
mm.
.805
.955
1.105
1.205
1.355
1.505
1.855
2.255
20.45
24.26
28.07
30.61
34.42
38.23
47.12
57.28
B Basic
In.
mm.
.565
.715
.865
.965
1.115
1.265
1.615
2.015
14.35
18.16
21.97
24.51
28.32
32.13
41.02
51.18
C Max.
In.
mm.
.401
.551
.701
.801
.951
1.101
1.460
1.860
10.19
14.00
17.81
20.35
24.16
27.96
37.08
47.24
PC TAIL LENGTH
± .020 (0.51)
CODE A: .125 (3.18)
CODE B: .250 (6.35)
D
E
F
G
H
INDEX
INDEX
.410 (10.41)
.540 (13.72)
MAX
CONTACT TAIL DIA
#23 CONTACT .018/.022 (0.46/0.56)
#16 CONTACT .060/.064 (1.52/1.63)
2-56 UNC-2B
2 PLACES
B BASIC
A MAX
790-041P DIMENSIoNS: ShELL SIzE G
.228 (5.79)
MIN
.387 (9.83)
MAX
.078 (1.98)
MIN
1.455 (36.96) MAX
.209 (5.31)
.530 (13.46)
MAX
1.215 B BASIC
(30.86) BASIC
1.079 (27.41) MAX
.195 (4.95)
JACKPOST, #2-56
.018/.022
(0.46/0.56)
.615 (15.62)
MAX
PC TAIL LENGTH
± .020 (0.51)
CODE A: .125 (3.18)
CODE B: .250 (6.35)
.485 (12.62)
2-56 UNC-2B
2 PLACES
1.215 (30.86) BASIC
1.455 (36.96)
MAX
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
G-8
Series 79 Micro-Crimp
Section G: Right Angle Printed Circuit Board Connectors

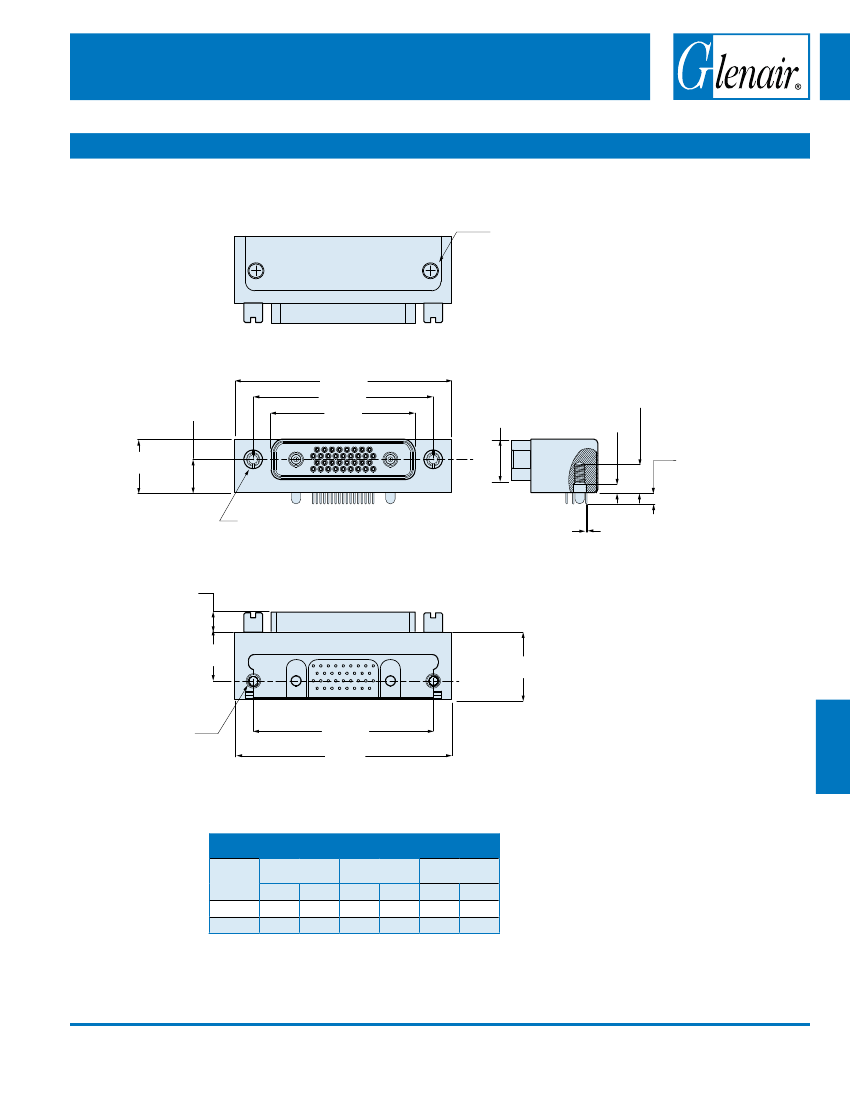

790-041P DIMENSIoNS: ShELL SIzES h & L
#2-56 FLAT HEAD SCREW
A MAX
B BASIC
.222 (5.64)
C MAX
.415 (10.54)
MAX
.288 (6.05)
MIN
.088
(2.24)
PC TAIL LENGTH
± .020 (0.51)
CODE A: .125 (3.18)
CODE B: .250 (6.35)
.550 (13.97)
MAX
JACKPOST, #4-40
CONTACT TAIL DIA
#23 CONTACT .018/.022 (0.46/0.56)
#16 CONTACT .060/.064 (1.52/1.63)
#12 CONTACT .096/.092 (2.44/2.34)
.195 (4.95)
.491
(12.47)
.700 (17.78)
MAX
4-40 UNC-2B
2 PLCS
B BASIC
A MAX
790-041P ShELL SIzES h AND L
Shell
Size
H
L
A Max.
In.
mm.
2.185 55.50
2.430 61.72
B Basic
In.
mm.
1.800 45.72
2.036 51.71
C Max.
In.
mm.
1.450 36.83
1.686 42.82
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
G-9
PCB
Connectors
A
B
C
D
E
F
G
H
INDEX
INDEX
PCB
Connectors
Series 79 Micro-Crimp
Section G: Right Angle Printed Circuit Board Connectors

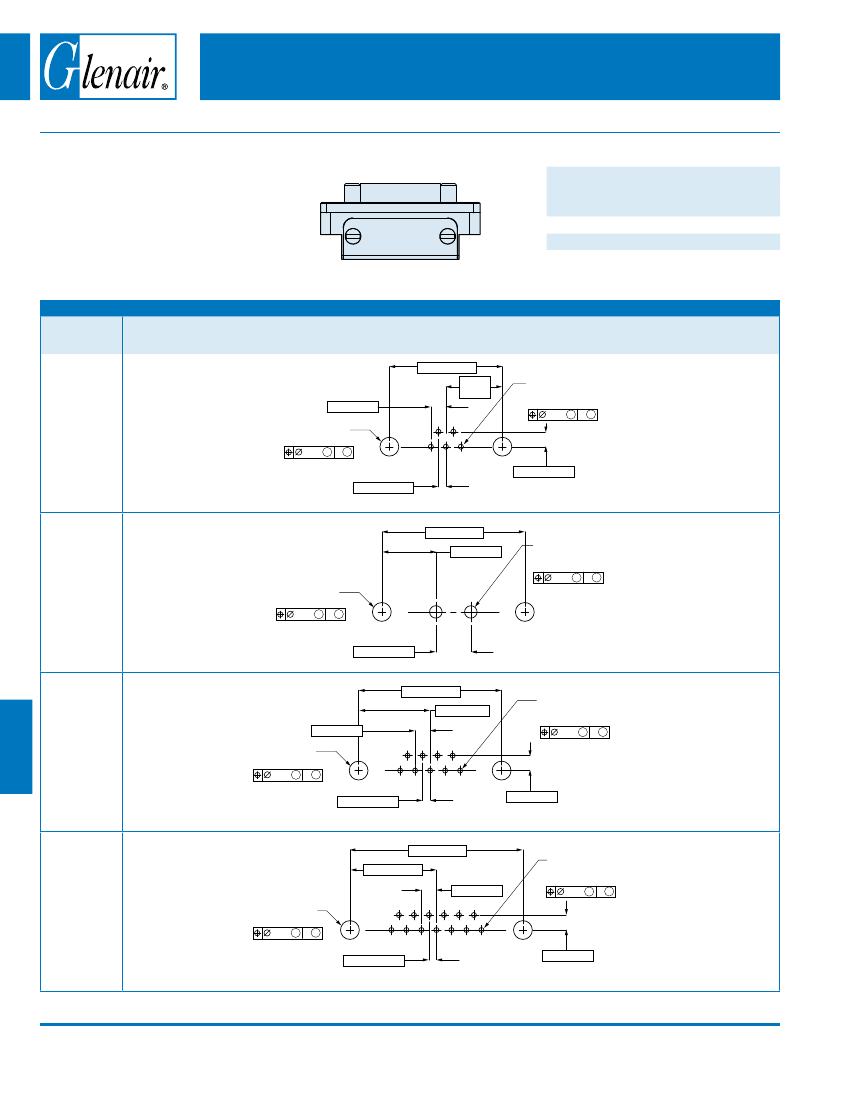

PCB Hole Patterns for 790-036P and 790-041P Receptacles
A
B
C
D
E
This section contains printed circuit
board footprints for right angle Series
79 receptacles. The contact identification
numbers are shown for the connector
mounting side of the PC board. Contact
tails are gold over nickel plated.
Contact
Size
#23
#16
#12
CONNECTOR ORIENTATION
PC Tail Diameter
Ø Diameter
In.
mm.
.018-.022
.060-.064
.092-.096
0.46-0.56
1.52-1.63
2.34-2.44
Insert
Arr.
790-036P AND 790-041P PRINtED CIRCUIt BoARD PAttERNS
Component Mounting Side of PCB
Mating Face of Connector is Toward Top of Page
.565 (14.35)
.2825
(7.18)
(HOLE TO ACCEPT
.022 (0.56) MAX DIA
CONTACT 5x)
.003 M A M
A-5
.075 (1.91)
TYP
.094 ± .003
(2.39 ±0.08) 2x
.003 M A M
5
4
3
2
1
.0375 (0.95)
TYP
.715 (18.16)
.270 (6.86)
.075 (1.91)
TYP
(HOLE TO ACCEPT
.064 (1.63) MAX DIA
CONTACT 2X)
.003 M A M
B-2P2
.094 ± .003
(2.39 ±0.08) 2x
A2
A1
.003 M A M
F
G
H
INDEX
INDEX
C-13
.094 ± .003
(2.39 ±0.08) 2x
.003 M A M
.175 (4.45)
.715 (18.16)
.3575 (9.08)
.075 (1.91)
TYP
.094 ± .003
(2.39 ±0.08) 2x
.003 M A M
5
(HOLE TO ACCEPT
.022 (0.56) MAX DIA
CONTACT 9x)
.003 M A M
B-9
9
8
7
6
4
3
2
1
.0375 (0.95)
TYP
.075 (1.91)
TYP
.865 (21.97)
.4325 (10.99)
.075 (1.91)
TYP
8
3
2
1
(HOLE TO ACCEPT
.022 (0.56) MAX DIA
CONTACT 13x)
.003 M A M
13
12
5
11
4
10 9
7
6
.0375 (0.95)
TYP
.075 (1.91)
TYP
© 2009 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 04-July-2009
G-10
