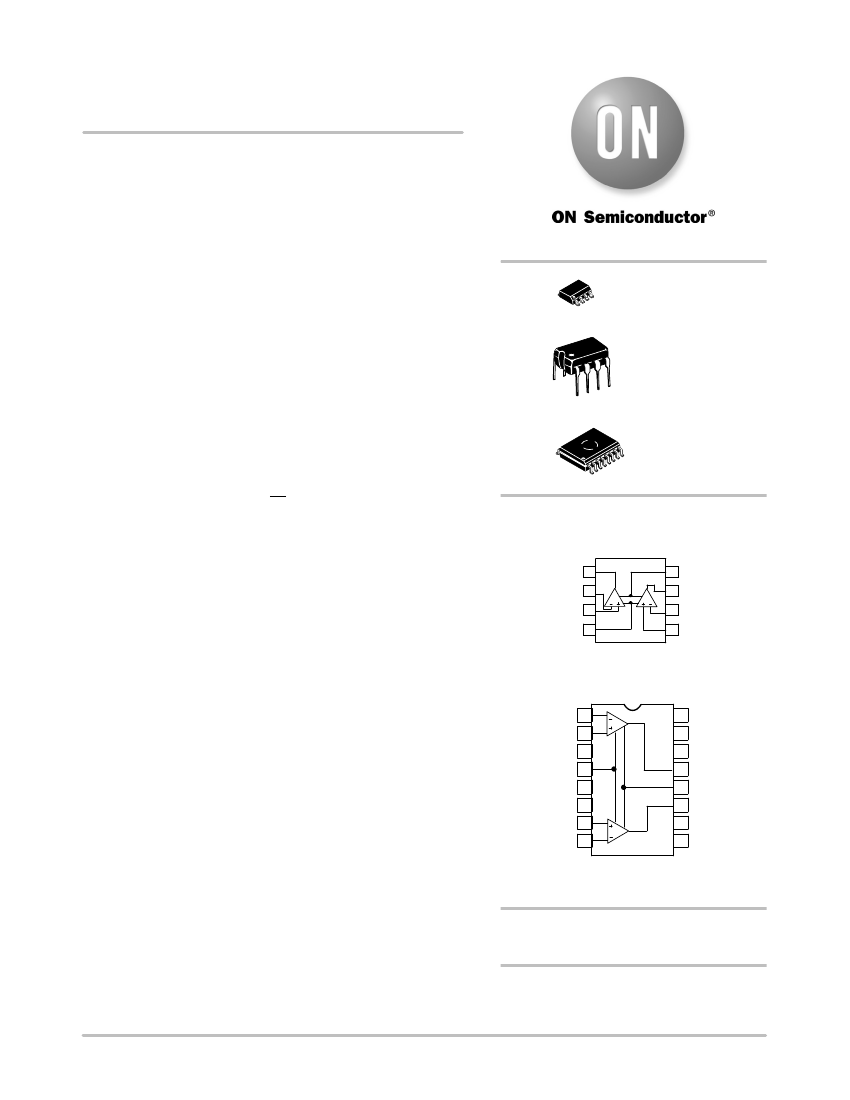

NE5532DR2G Overview

Basic information of NE5532DR2G amplifier:

NE5532DR2G is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are LEAD FREE, PLASTIC, SOP-16

NE5532DR2G amplifier core information:

The minimum operating temperature of NE5532DR2G is 70 °C. Its peak reflow temperature is 250°C and its maximum average bias current is 1 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of NE5532DR2G is 9 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the NE5532DR2G gain becomes 0.707 times the low-frequency gain is 10000 kHz.

The nominal supply voltage of NE5532DR2G is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of NE5532DR2G is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of NE5532DR2G:

The width of NE5532DR2G is: 7.5 mm and the length is 10.3 mm. NE5532DR2G has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 16

NE5532DR2G amplifier other information:

Its temperature grade is: COMMERCIAL. And its humidity sensitivity level is: NOT SPECIFIED. NE5532DR2G is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G16.

The corresponding JESD-609 code is: e3. The packaging code of NE5532DR2G is: SOP. NE5532DR2G packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The NE5532DR2G package pin formats are: SMALL OUTLINE.

Its terminal forms are: GULL WING. The maximum seat height is 2.65 mm.

NE5532DR2G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	LEAD FREE, PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	1 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	10.3 mm
Humidity sensitivity level	NOT SPECIFIED
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	250
Certification status	COMMERCIAL
Maximum seat height	2.65 mm
Nominal slew rate	9 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Nominal Uniform Gain Bandwidth	10000 kHz
width	7.5 mm
Base Number Matches	1
