S7BC-10E1A0G Overview

DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, PACKAGE-7

S7BC-10E1A0G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel Fuse
Parts packaging code	MODULE
package instruction	PACKAGE-7
Contacts	7
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	14 V
Minimum input voltage	4.5 V
JESD-30 code	R-XXMA-X7
Number of functions	1
Output times	1
Number of terminals	7
Maximum output voltage	3.63 V
Minimum output voltage	0.7525 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	36 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

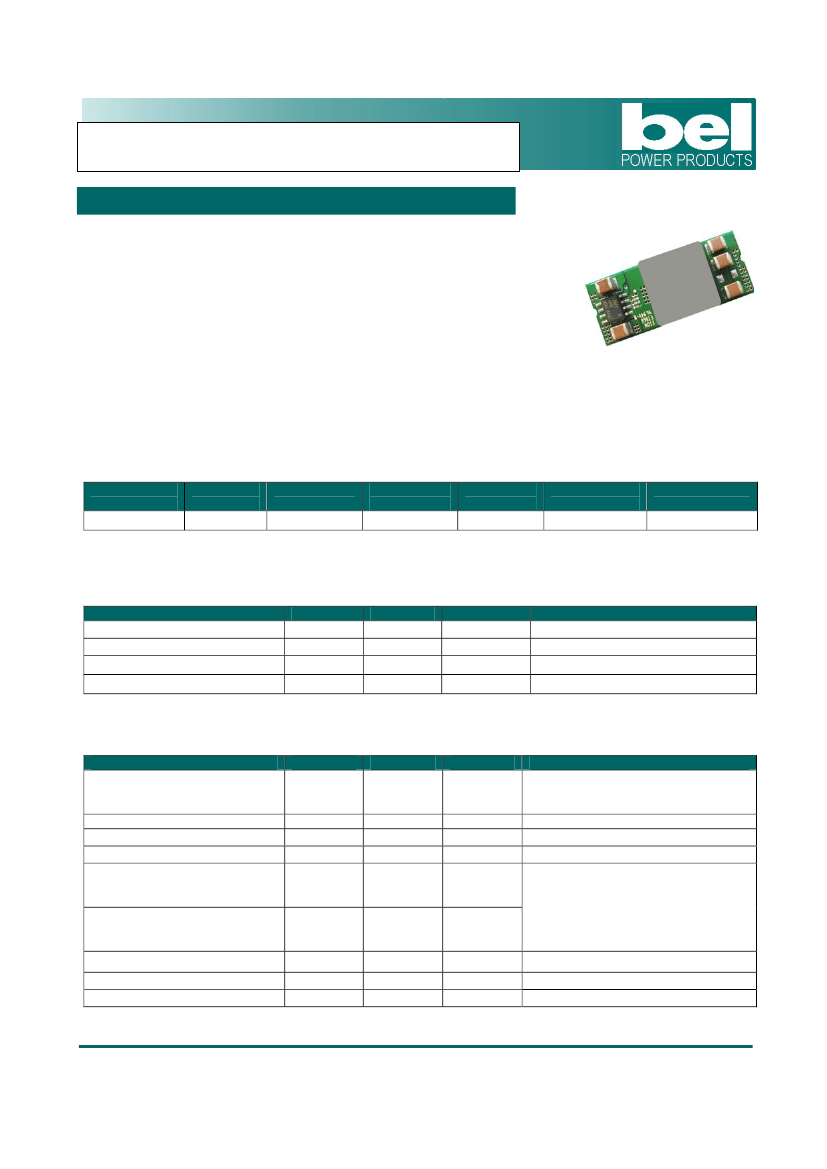

NON-ISOLATED DC/DC CONVERTERS

4.5 Vdc - 14 Vdc Input

0.75 Vdc - 3.63 Vdc/10 A Output

SRBC-10E1Ax

RoHS Compliant

Rev.A

Non-Isolated

High Efficiency

Fixed Frequency

Remote On/Off

Low Cost

Industrial Temperature Range

(Option)

Under-Voltage Lockout (UVLO)

Over Temperature Shutdown

OCP/SCP

Wide Input

Wide Trim

Remote Sense

Description

The Bel SRBC-10E1Ax is part of the non-isolated dc/dc converter series. The modules use a SMT package.

These converters are available in a range of output voltages from 0.75 Vdc to 3.63 Vdc over a wide range of

input voltage (Vin = 4.5 Vdc - 14 Vdc). The efficiency is typically 93% at 3.3 Vdc at output at full load.

Part Selection

Output

Voltage

0.75 V - 3.63 V

Input

Voltage

4.5 V - 14 V

Max. Output

Current

10 A

Max. Output

Power

36 W

Typical

Efficiency

93%

Model Number

Active Low

SRBC-10E1AL

Model Number

Active High

SRBC-10E1A0

Notes:

1. Add “G” suffix at the end of the model number to indicate Tray Packaging.

2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.

Absolute Maximum Ratings

Parameter

Input Voltage (continuous)

Output Enable Terminal Voltage

Ambient Temperature

Storage Temperature

Min

-0.3 V

-40

°C

-55

°C

Typ

Max

15 V

°C

125

°C

Notes

Note:

All specifications are typical at 25

°C

unless otherwise stated.

Input Specifications

Parameter

Input Voltage

Vo,set

3.0

Vo,set

≥

3.0

Input Current (full load)

Input Current (no load)

Remote Off Input Current

Input Reflected Ripple Current

(pk-pk)

Input Reflected Ripple Current

(rms)

I t Inrush Current Transient

Turn-on Voltage Threshold

Turn-off Voltage Threshold

Min

4.5 V

Vo,set +1.5

Typ

40 mA

2 mA

Max

14 V

8.6 A

400 mA

Notes

An input line fuse must always be used.

0.04 A s

4.3 V

4.0 V

150 mA

0.08 A s

With simulated source impedance of

1000 nH, 5 Hz to 20 MHz, with one 1000

uF/25 V AL input capacitor with

ESR=0.03 ohm max and 4

47 uF/16 V

tantalum capacitors with ESR=0.013

ohm max at 100 kHz

Note:

All specifications are typical at 25

°C

unless otherwise stated.

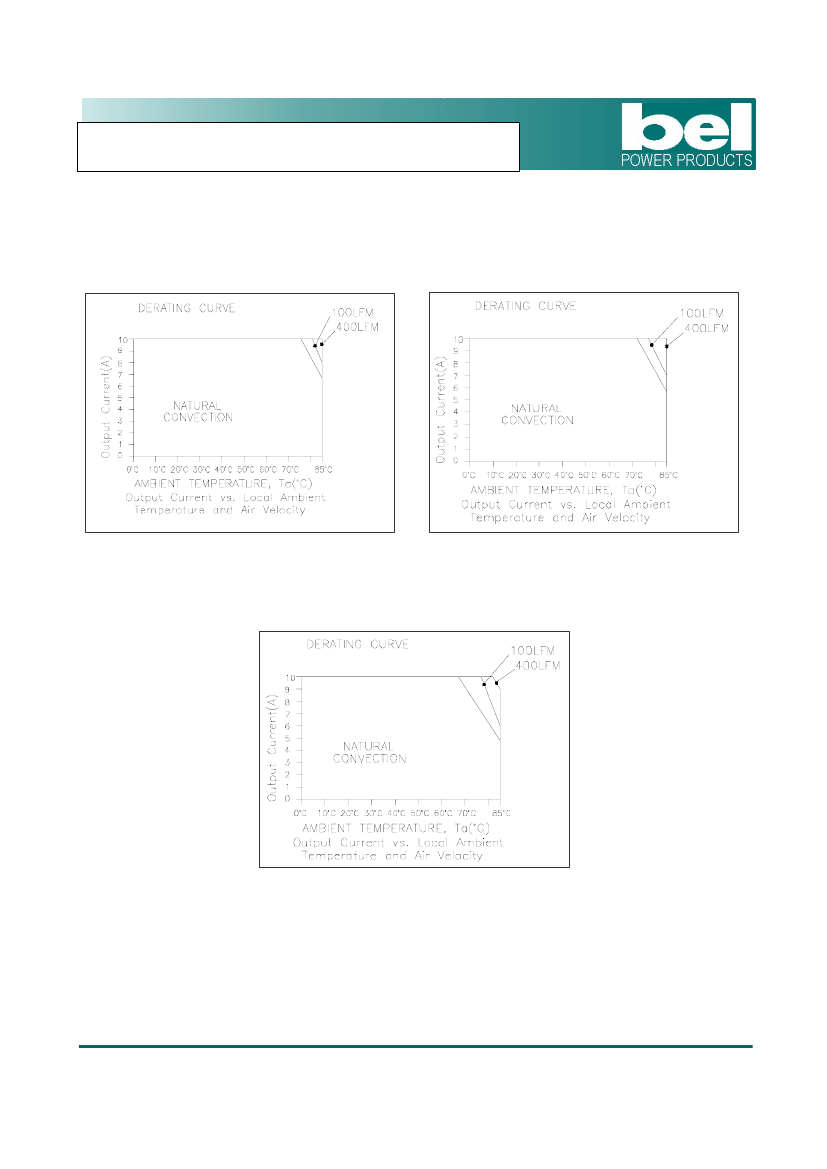

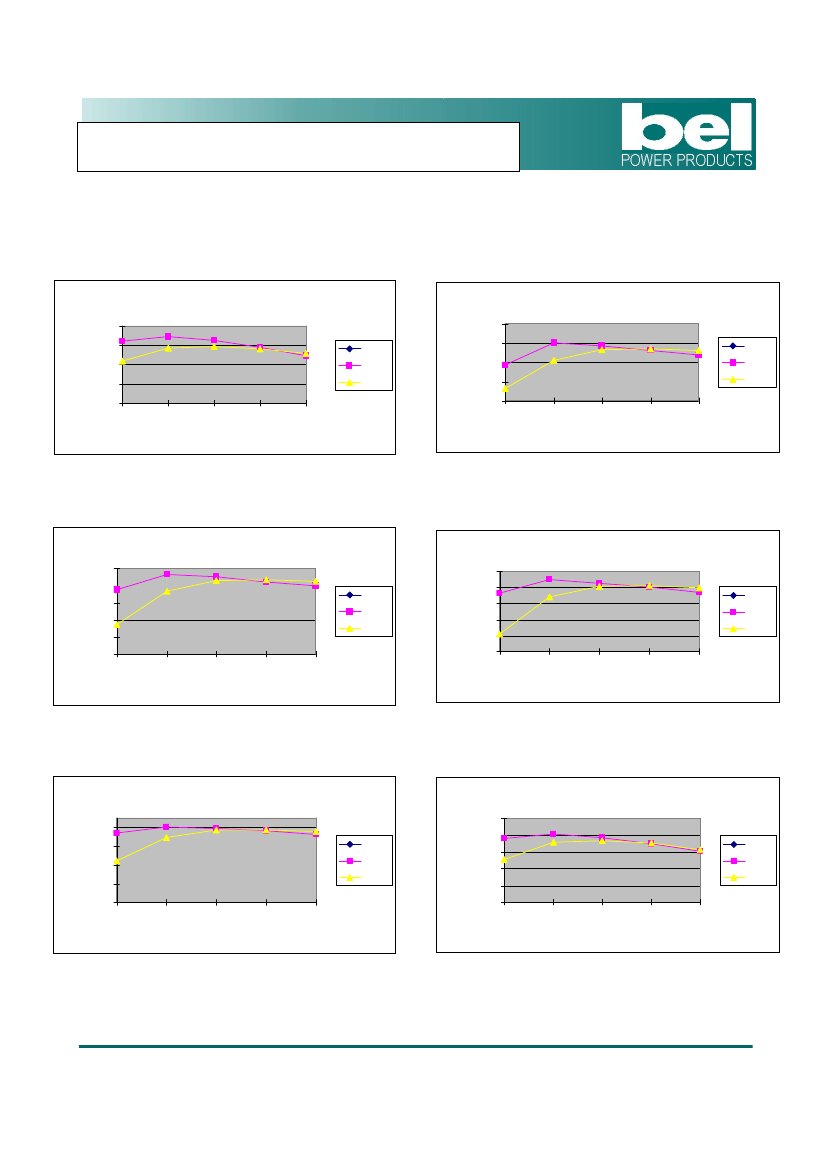

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302

•

Tel 201-432-0463

•

Fax 201-432-9542

•

www.belfuse.com
