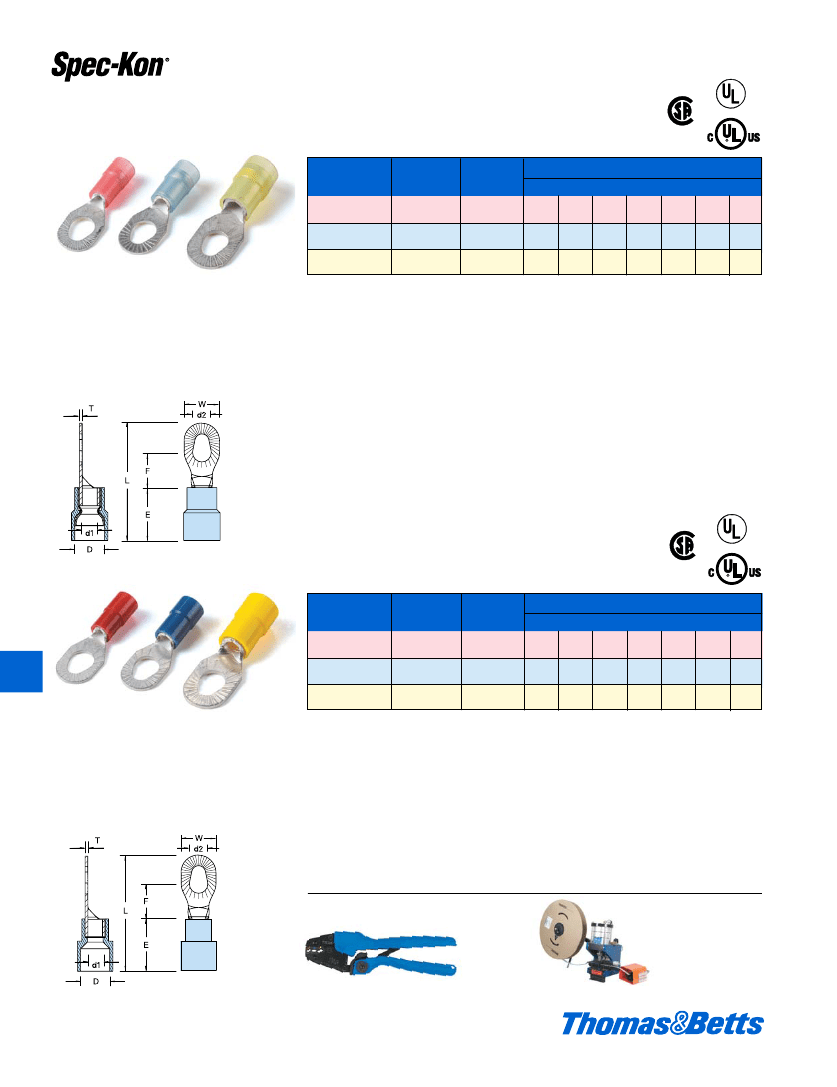

Terminals
®
®
Nylon Insulated Multiple Stud Ring Terminals
Catalog
Number
KN18-610MS-M
KN14-610MS-M
KN10-610MS-D
Wire
Range
22-16 A.W.G.
0.5-1.5 mm
2
Bolt
Size
#6 - #10
#6 - #10
#6 - #10
Dimension
inch
mm
W
.339
8.6
.339
8.6
.390
9.9
F
.311
7.9
.311
7.9
.350
8.9
L
.996
25.3
.996
25.3
1.154
29.3
E
.433
11.0
.433
11.0
.512
13.0
D
.177
4.5
.205
5.2
.276
7.0
d1
.067
1.7
.091
2.3
.134
3.4
T
.030
0.75
.031
0.8
.039
1.0
16-14 A.W.G.
1.5-2.5 mm
2
12-10 A.W.G.
4-6 mm
2
• Single terminal for 6, 8,
and 10 stud sizes
• Molded Insulator
• Metal Insulation Sleeve
• Funnel Entry
Box Quantity: (D)=500; (M)=1000
For Mylar Tape replace box quantity with (T). Example: KN18-610MS-T
UL File #E9809
CSA File #LR4503
See pages in back of catalog for complete tool information.
Tool and Die Selection Chart on page M42.
Maximum Electrical Rating:
105˚C 600 Volts Max.
Terminal Material:
Copper
®
®
Vinyl Insulated Multiple Stud Ring Terminals
Catalog
Number
KV18-610MS-M
Wire
Range
22-16 A.W.G.
0.5-1.5 mm
2
Bolt
Size
#6 - #10
#6 - #10
#6 - #10
Dimension
inch
mm
W
.339
8.6
.339
8.6
.390
9.9
F
.311
7.9
.311
7.9
.350
8.9
L
.996
25.3
.996
25.3
1.154
29.3
E
.433
11.0
.433
11.0
.512
13.0
D
.157
4.0
.177
4.5
.252
6.4
d1
.067
1.7
.091
2.3
.134
3.4
T
.030
0.75
.031
0.8
.039
1.0
M
Spec-Kon
®
KV14-610MS-M
KV10-610MS-D
16-14 A.W.G.
1.5-2.5 mm
2
12-10 A.W.G.
4-6 mm
2
• Single terminal for 6, 8,
and 10 stud sizes
• Molded Funnel Entry Insulator
• Brazed Seam
Box Quantity: (D)=500; (M)=1000
For Mylar Tape replace box quantity with (T). Example: KV18-610MS-T
UL File #E9809
CSA File #LR4503
See pages in back of catalog for complete tool information.
Tool and Die Selection Chart on page M42.
Maximum Electrical Rating:
105˚C 600 Volts Max.
Terminal Material:
Copper
Tools used with Nylon and Vinyl Insulated Multiple
Stud Ring Terminals
ERG2500
KT-2500
M8
